HTML Configuration and Control, cont’d
MGP Series • HTML Configuration and Control 5-26
PRELIMINAR
Y
Using a bitmap image
The Image Settings screen lets you upload bitmap images, including those
saved via background capture, from your computer to the MGP; and to select an
uploaded image as the background for the output screen.
N The MGP supports only 24-bit bitmap files as backgrounds. The background
file names must have a .bmp extension. The MGP has 16 MB of memory to
store captured or loaded images. See “
Background Capture menu ” in chapter 3,
“Operation,” to calculate the size of an image.
Uploading an image
To upload a bitmap image to the MGP,
1
. In the Image Index field, click Add. The Add Image field is displayed.

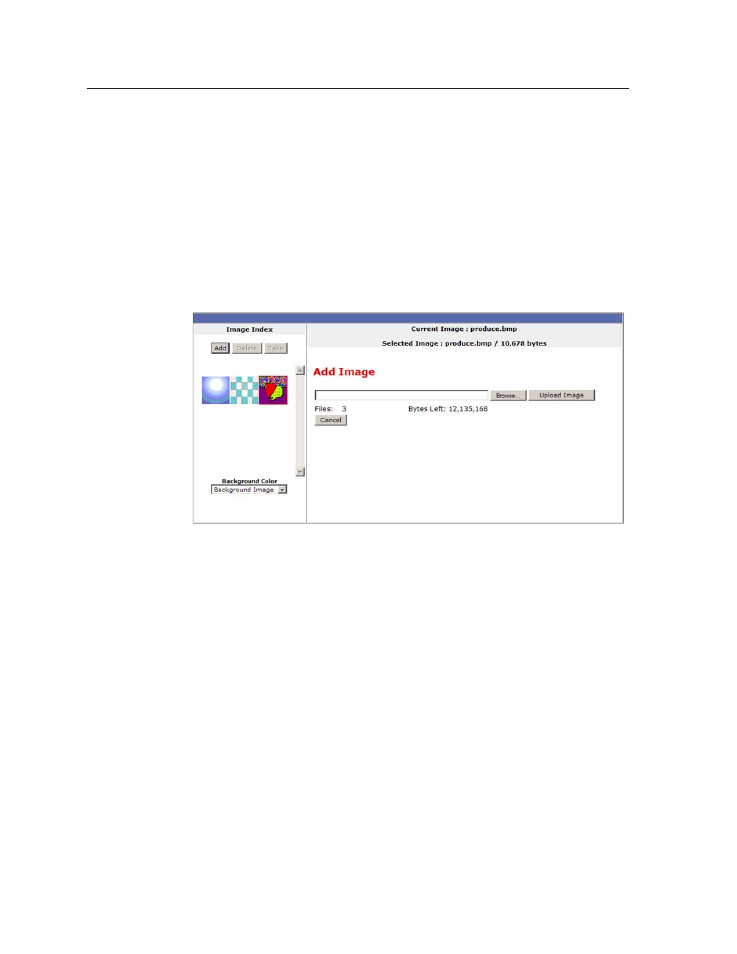

Add Image field on the Image Settings screen
2 . Click Browse to open the Choose file window, and locate the image (.bmp) file
that you want to upload.
3 . Open the image file in the Choose File window. Its name and the path to it are
displayed in the Add Image field on the Image Settings screen.
4 . Click Upload Image. This button changes to Uploading... while the file is being
loaded.
When the uploading is complete, a thumbnail image of the uploaded file is
displayed in the Image Index section.
Selecting a background image
To select an uploaded image to be displayed as the background on the output
screen,
1
. In the Image Index section, click on the thumbnail of the image you want to
display. A larger version of the selected image appears to the right.
2 . Click Take to select that image for the output background.
