Bus connections (full-height cabinets only), Distributed architecture, continued – GE Industrial Solutions Galaxy Power Systems User Manual
Page 77
Installation Guide for Galaxy Power Systems
Issue 12 August 2012
Centralized or Distributed Architecture Connections 6 - 9
Distributed Architecture, continued

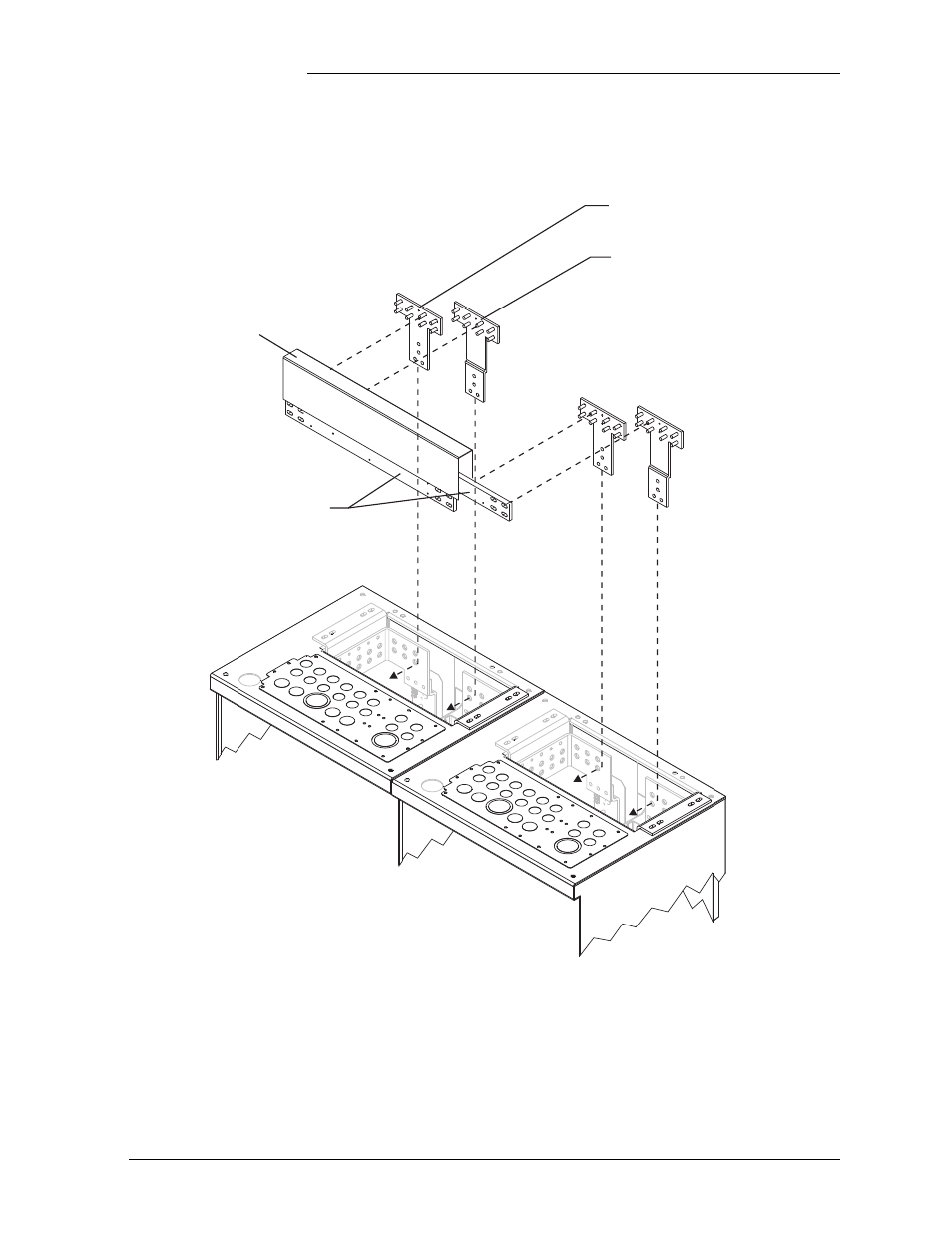

Figure 6-4: Distributed Architecture Intercabinet DC Power
Bus Connections (Full-Height Cabinets Only)
847720802 Bus Bars
Hardware provided:
901249839 Nut M8
901249821 Lock Washer M8
901249813 Flat Washer M8
(8 places each bus)
848414611 Bus Bar Shield
(1 per Supplemental Cabinet)
847760204 Short "T" Bus Bar
Negative for 48V systems
Positive for 24V systems
847760196 Long "T" Bus Bar
Positive for 48V systems
Negative for 24V systems
Hardware provided:
901263327 Screw M8 x 25mm
901249821 Lock Washer M8
901249813 Flat Washer M8
(4 places each "T")
Torque: 145 in-lbs (16 Nm)
