Installation Guide for Galaxy Power Systems
10 - 8 Remote Peripheral Monitoring Issue 12 August 2012
RPM Installation, continued

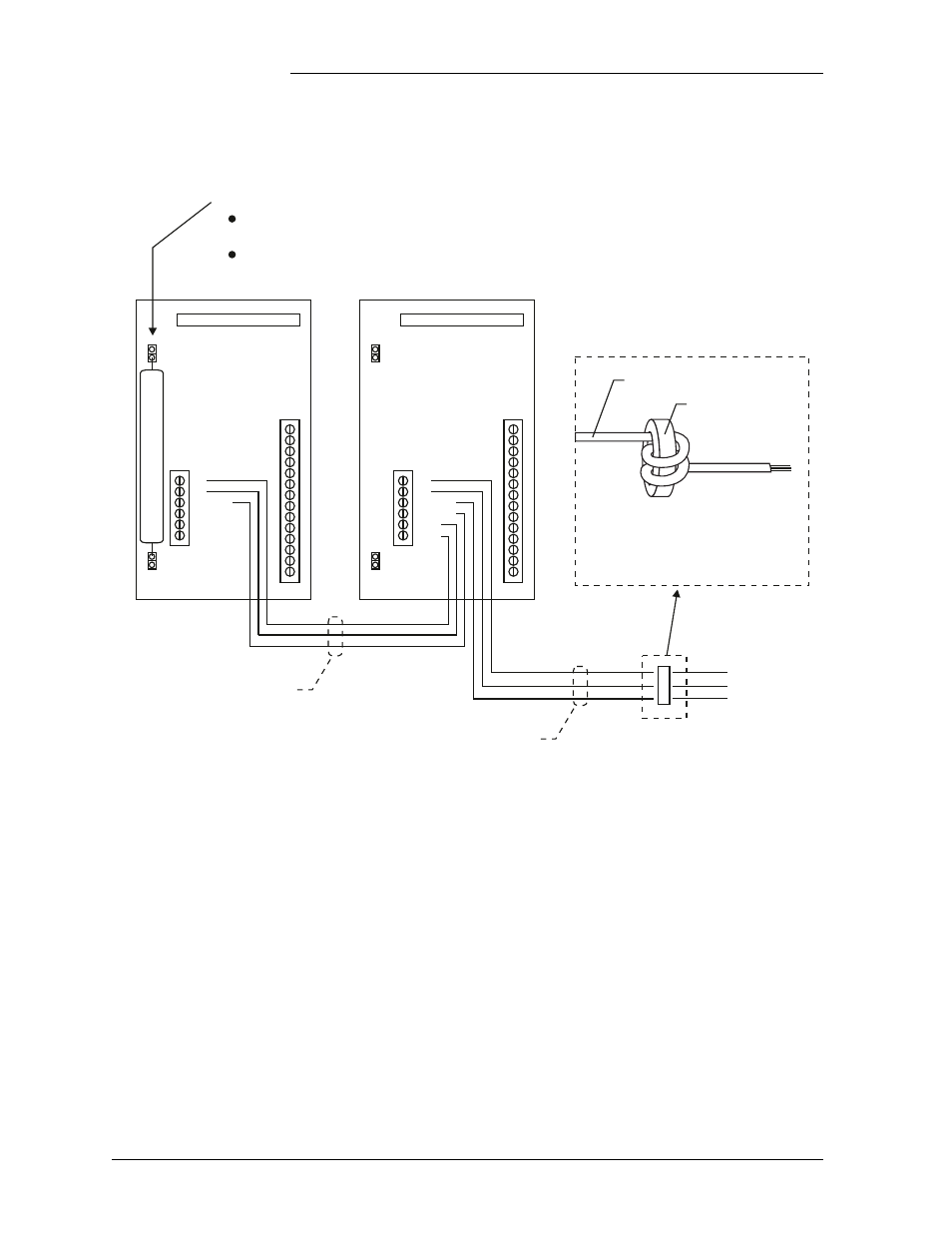

Figure 10-5: Connection to the Controller (All Modules)
TB101 TB101
TB102 TB102
X1 X1
X2 X2
IN
IN
SHIELD
SHIELD
OUT
OUT IN
IN
SHIELD
SHIELD
OUT
OUT
To Galaxy
Controller
RPM Bus
Input
Inductor Bead
(406712968)
For EMI protection, loop the
RPM cable assembly through
the inductor bead twice before
connecting to the controller.
RPM Cable Assembly
(2 wire, shielded, 407377704)
RPM Cable Assembly
(2 wire, shielded, 407377704)
RPM Cable Assembly
Inductor
Bead
560 Ohm Resistor (405298308)
Should be installed:
When using a single RPM module
or
When daisy-chaining RPM modules (as shown), the resistor
should only be installed in the last module in the chain.
Up to 95 RPM modules can be daisy-chained on a single bus as shown, provided that
the bus length, from the controller to the last RPM in the chain, is 100 meters or less. For
bus lengths between 100 meters and 300 meters (maximum bus length), the number of
RPMs on that bus must be reduced. See the RPM product manual (167-790-063).
