Installation Guide for Galaxy Power Systems
Issue 12 August 2012
Thermal Probe and 210E Connections 12 - 5
Wiring Schematic for Extender Cable

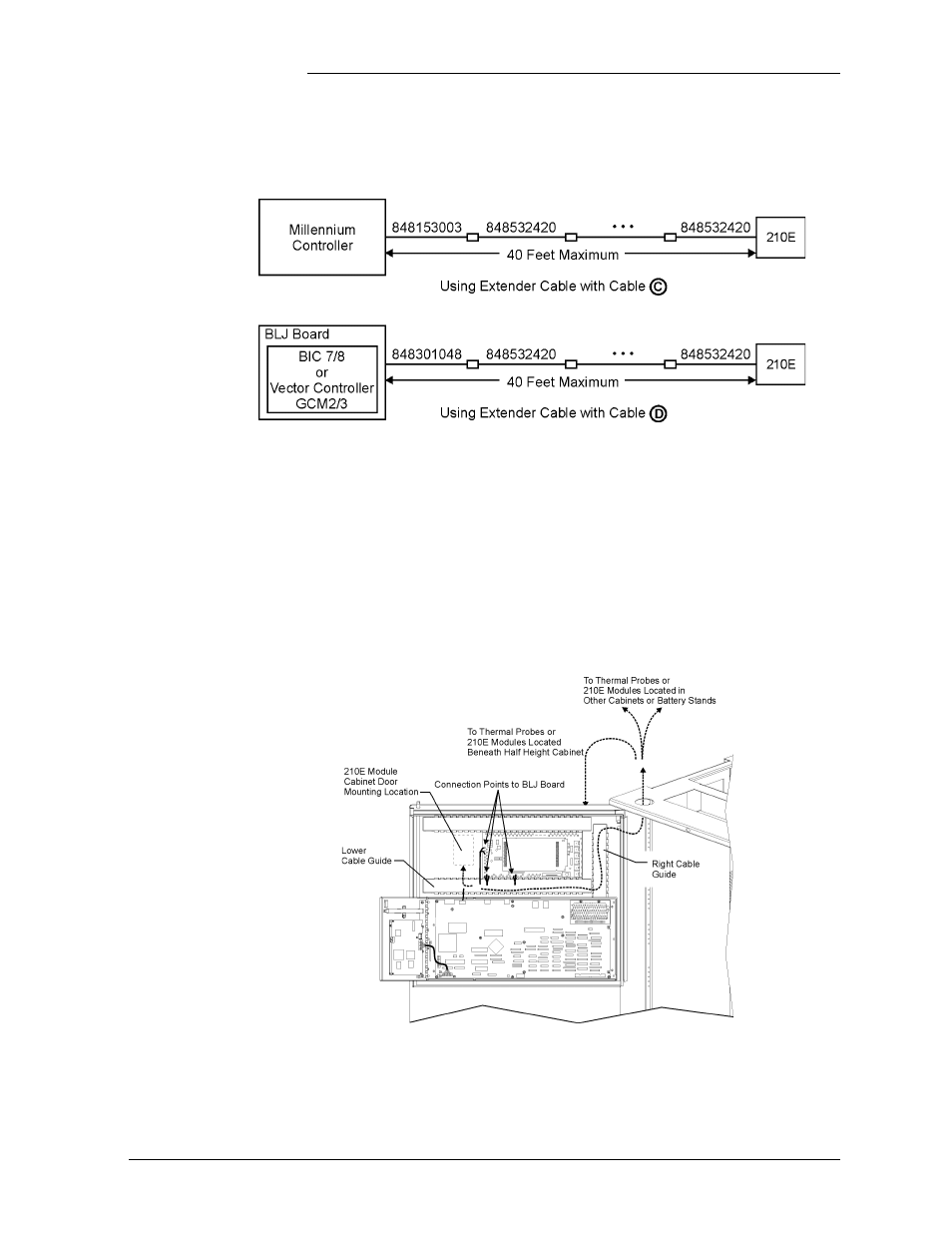

Figure 12-3: Wiring Schematic for Extender Cable
Cable Routing
Thermal monitoring connections to the controller are made through the
BLJ board located on the cabinet door. Cables are then routed to the
lower cable guide as shown in Figure 12-4, then to thermal probe
locations or to externally located 210E modules.
Figure 12-4: Thermal Probe and 210E Cable Routing
