Installation Guide for Galaxy Power Systems
5 - 2 Cabinet Floor Mounting and Battery Stand Connection Issue 12 August 2012
Cabinet Installation

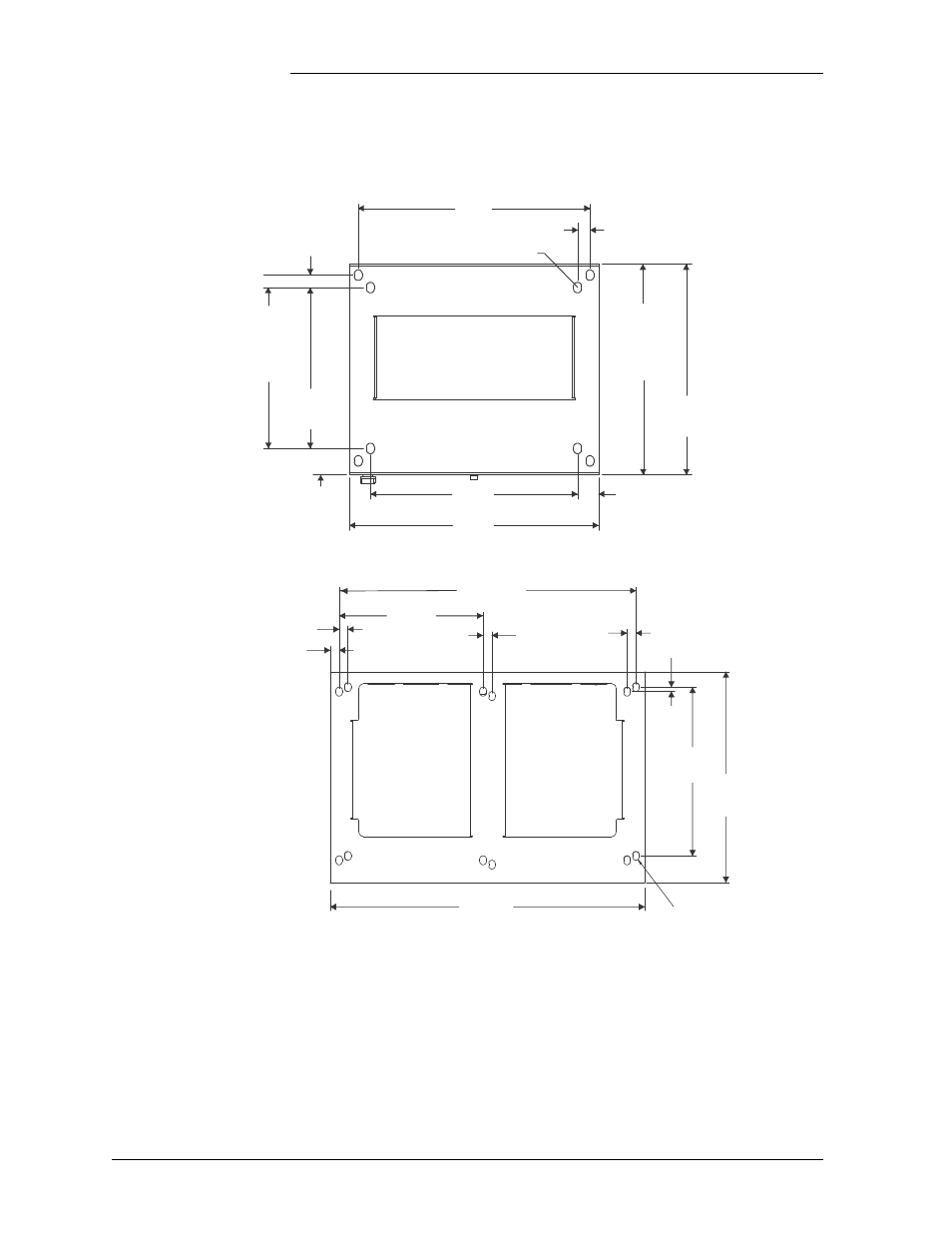

Figure 5-1: Footprint for Galaxy Power System Cabinets
(without a Battery Stand)
19.6"
(498 mm)
23.6"
(600 mm)
21.6"
(549 mm)
1.00" typ
(25.4 mm)
0.50" typ
(12.7 mm)
2"
(51 mm)
2.5"
(64 mm)
GPS4848/100
19"
(482 mm)
GPS4848/100
23.6"
(600 mm)
GPS2424/30
GPS4812/24
(without battery
stands)
15.3"
(389 mm)
GPS2424/30
GPS4812/24
(without battery
stands)
19.7"
(500 mm)
0.75" x 1" Slots
(19 x 25 mm)
Bottom View
Front
33.4”
(849 mm)
1.0”
(25 mm)
1.0”
(25 mm) 0.5”
(13 mm)
1.0”
(25 mm)
FRONT
BOTTOM VIEW
1.0”
(25 mm)
16.2”
(412 mm)
35.4”
(900 mm)
19.0”
(483 mm)
23.7”
(603 mm)
0.75 x1.0” Slots
(19 x 25 mm)
36” Wide
Distribution Cabinet
