Installation Guide for Galaxy Power Systems
7 - 28 AC Connection and Wiring Issue 12 August 2012
Bottom Cable Feed
Options for GPS
4848/100
Standard cabinets are designed to that ac, battery, and dc load cables are
run through the top of the cabinet. Any of the battery panels and dc load
panels may also be used in cabinets arranged for feeding ac or dc cables
from the floor. However, only G22 and G26 ac panels are available for
these cabinets (see Figure 7-22). For ac input from the bottom of the
cabinet, these panels have a 2 inch diameter hole in the back to accept a
90° conduit fitting. Suffixes of these ac panels indicate the cabling
arrangements listed below:
AC
Panel
Suffix
Cabling Arrangement
AC Battery and DC Load
A Through bottom of cabinet Through bottom of cabinet
B Through bottom of cabinet Through top of cabinet
C Through top of cabinet Through bottom of cabinet

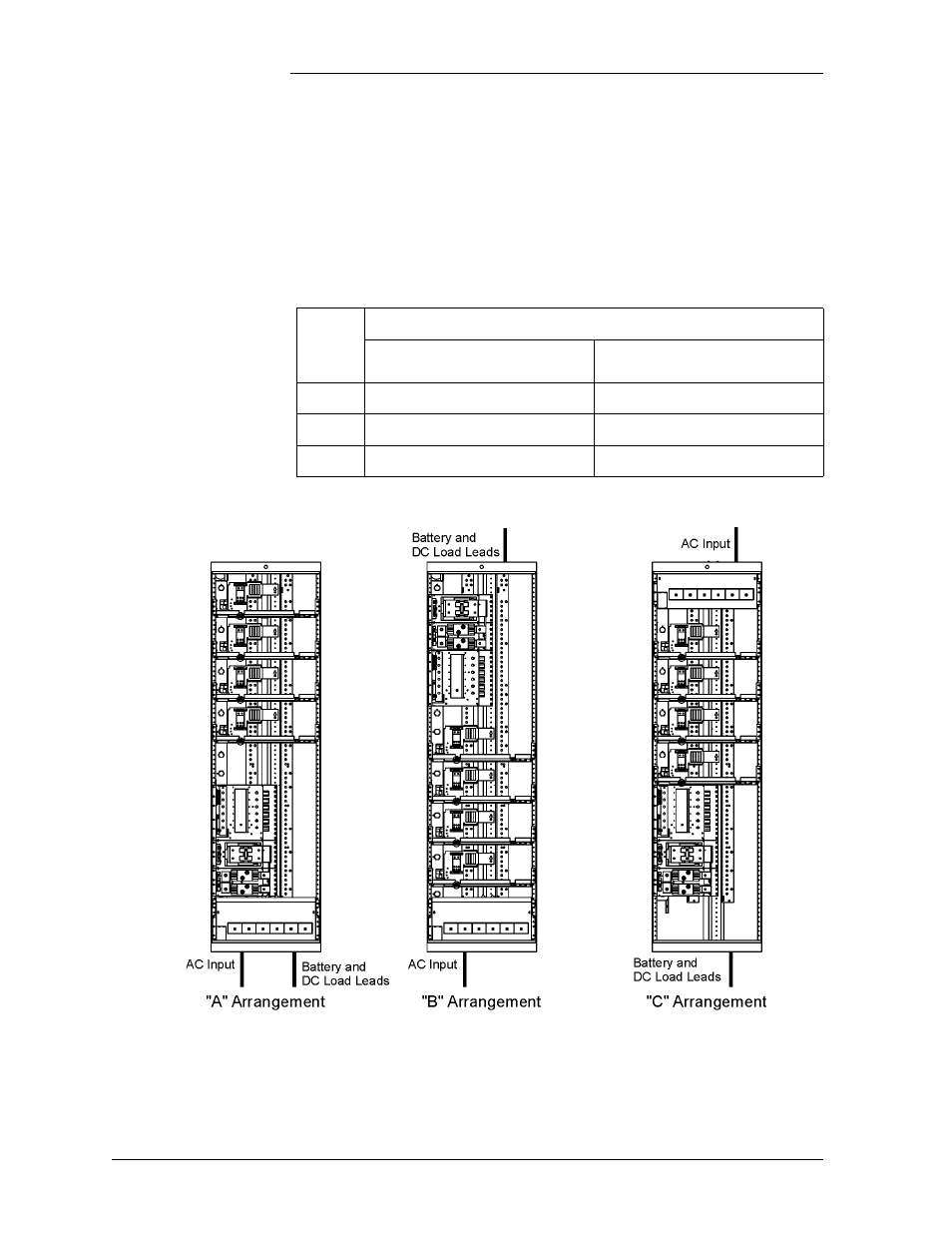

Figure 7-22: Bottom Cable Feed Option for GPS4848/100
