Page 134
Installation Guide for Galaxy Power Systems
8 - 20 DC Distribution Assembly and Connections
Issue 12 August 2012
Low Voltage Disconnect Feature
EBV Circuit Pack
If the distribution panels are equipped with an Low Voltage Load
Disconnect (LVLD) feature, an EBV circuit pack is also provided. The
EBV circuit pack is factory set to operate as Contactor 2 as defined by
the controller. If instructed in the Job Site Documentation to set some or
all of the Low Voltage Load Disconnects to operate as Contactor 3, all
the straps for that EBV need to be moved, as shown in Figure 8-16. This
will allow the LVLDs defined as “2” (those not changed) to operate at
different voltage levels than those defined as “3” (those that are
changed). These voltage levels will be set during the controller setup.

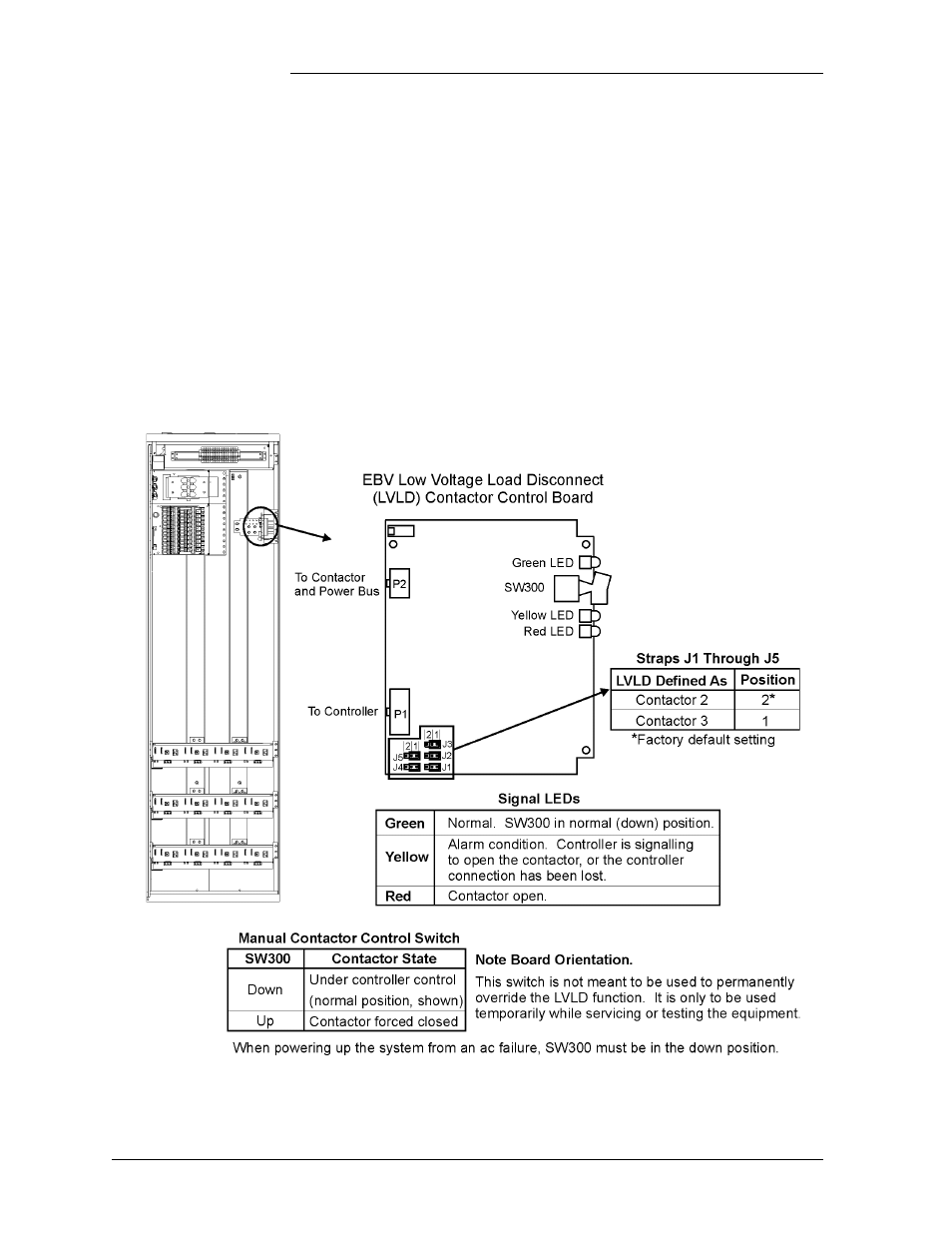

Figure 8-17: EBV Circuit Pack for Load Disconnect
