5: Schematic View
000-20000-310-02-201312 65
Minimizing

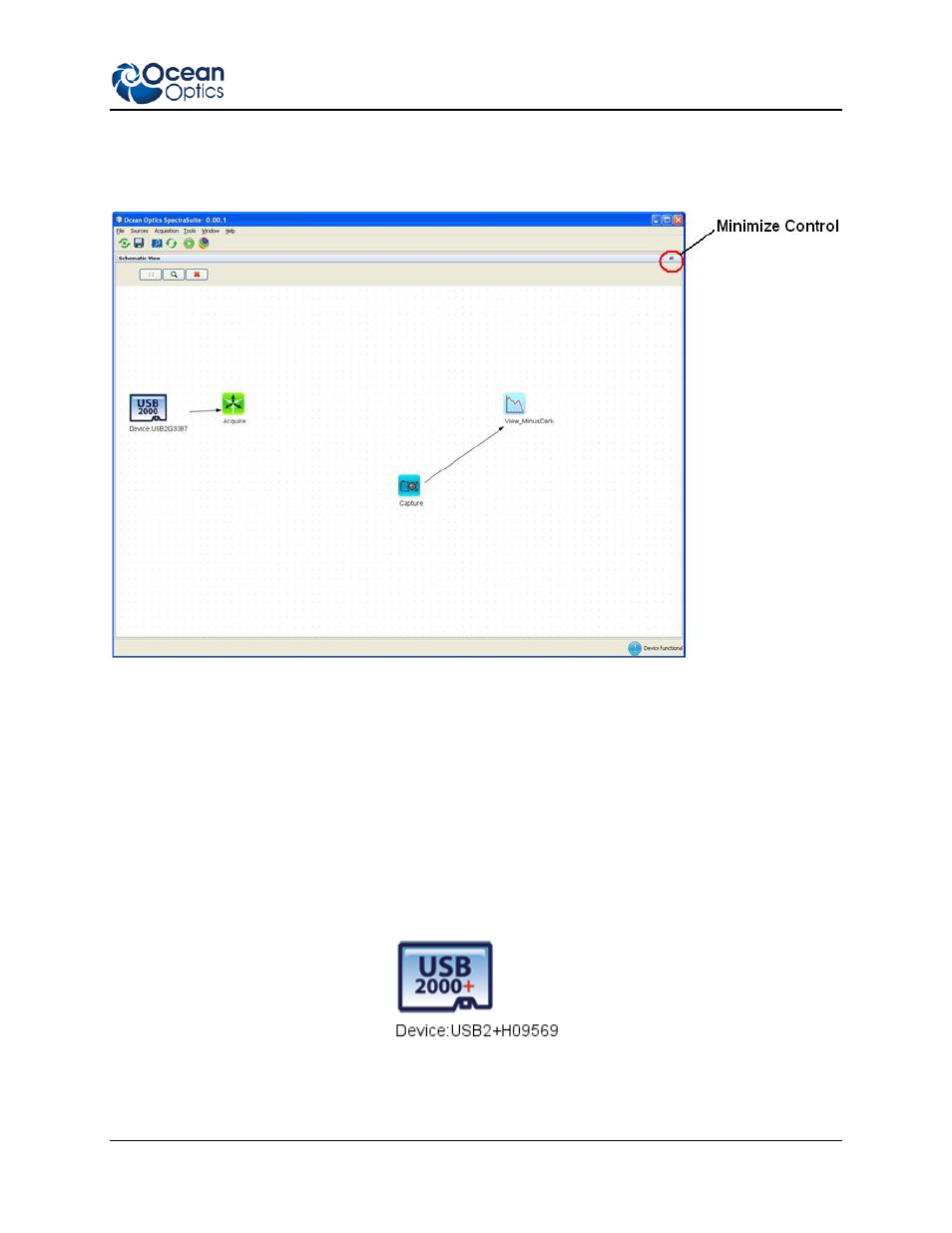

Use the Minimize control (available once the view has been pinned) or drag the view from its edge to the
desired size.
Schematic Icons
The Schematic View provides you with a visual way of controlling your method devices, connections and
operations.
Schematic View icons consist of devices, nodes, connectors, and controls.
Devices
A unique device icon should be present on the schematic for each device managed by OceanView. Below
each device icon is the device serial number as shown in the following example:
To delete a device from the schematic, right-click on the desired device icon and select Remove Device.
