3: User Interface
000-20000-310-02-201312 17

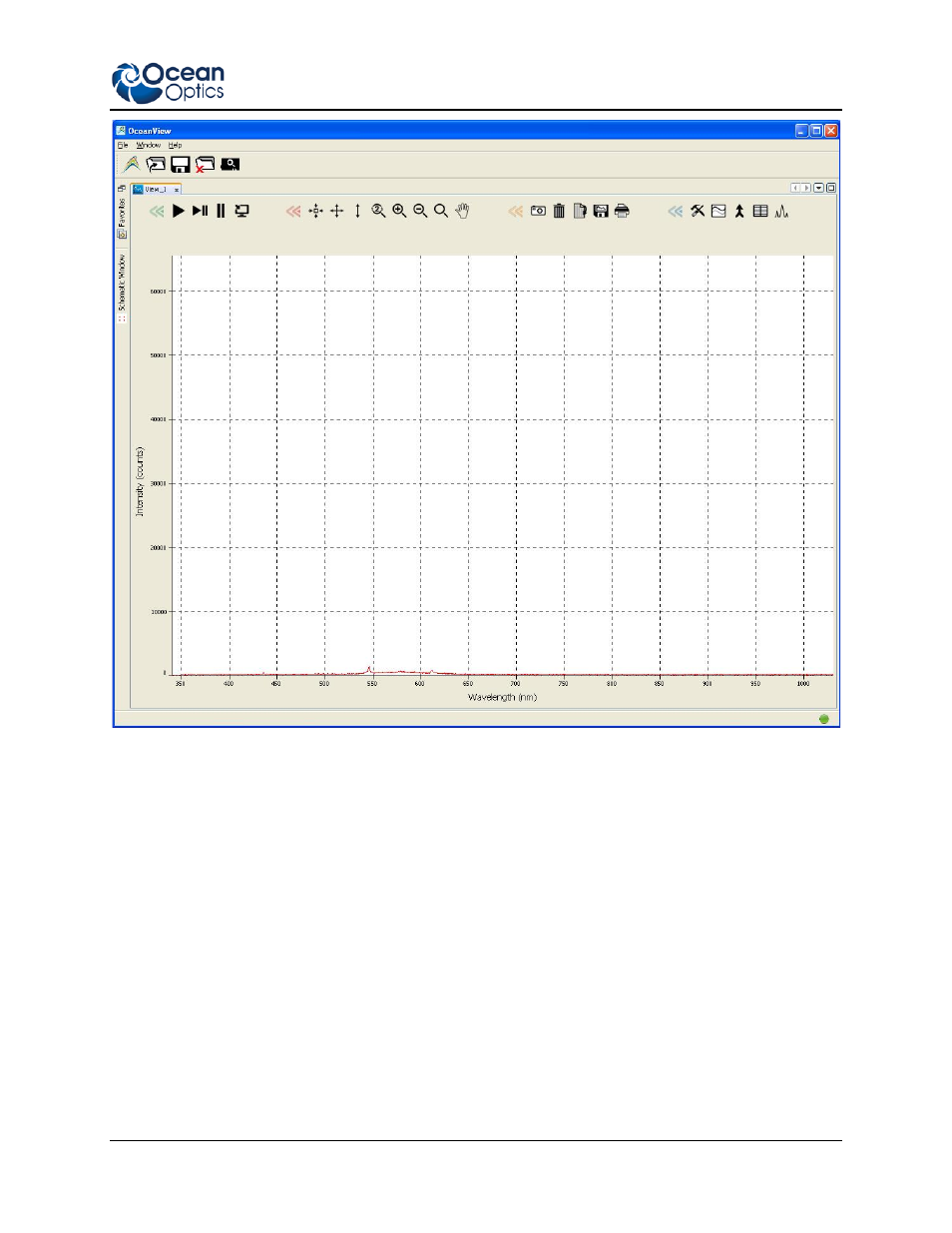

Schematic View
The Schematic View presents data from your device(s) in a diagram format. The Schematic View
provides you with all of the functionality of the Window view, plus the following enhanced capabilities:
•
Algorithm nodes – allow for math functions such as ratios, adding multiple spectra, and adding a
constant to spectra.
• Set a subrange – ability to focus on a specific subset of the spectrum
• Interpolate spectral data – evenly space data from two or more spectra to analyze them
mathematically
•
Retrieve device properties such as serial number, firmware version, wavelength and total number
of pixels
•
Send a single value (such as TEC temperature, integral, average over a specific wavelength range)
from the device to the Scalar view to analyze the value over time
•
Preview spectra in graphs at every step in your process
