2 Technical characteristics
1
2
0
.3
12
3.8
108
.5
Signal name Technical data
Maximum supply voltage 690 VAC +10%
Nominal supply frequency 50/60 Hz
Control voltage range 42…48 VAC +/- 10% or 115…230 VAC +/- 10%
Maximum power consumption Imax = 4,5A peak value
Power consumption 6W …8W
Ambient temperature -20ºC…+65ºC; 0ºF…+150ºF
Storage temperature -40ºC…+85ºC; -40ºF…+185ºF
Humidity 0…100% RH, no condensation
Analogue output 0…10V, Rmin=1kΩ
10VDC output 10…12 VDC, Imax=50mA
Potential free relay output (Programmable) 230VAC, 3A
Current loop 12 V, I = 50…70mA
CAN 0: Ucan-H = 2.5VDC, Ucan-L = 2.5VDC
1: Ucan-H = 3.5VDC, Ucan-L = 1.5VDC
(respect to CAN-GD)

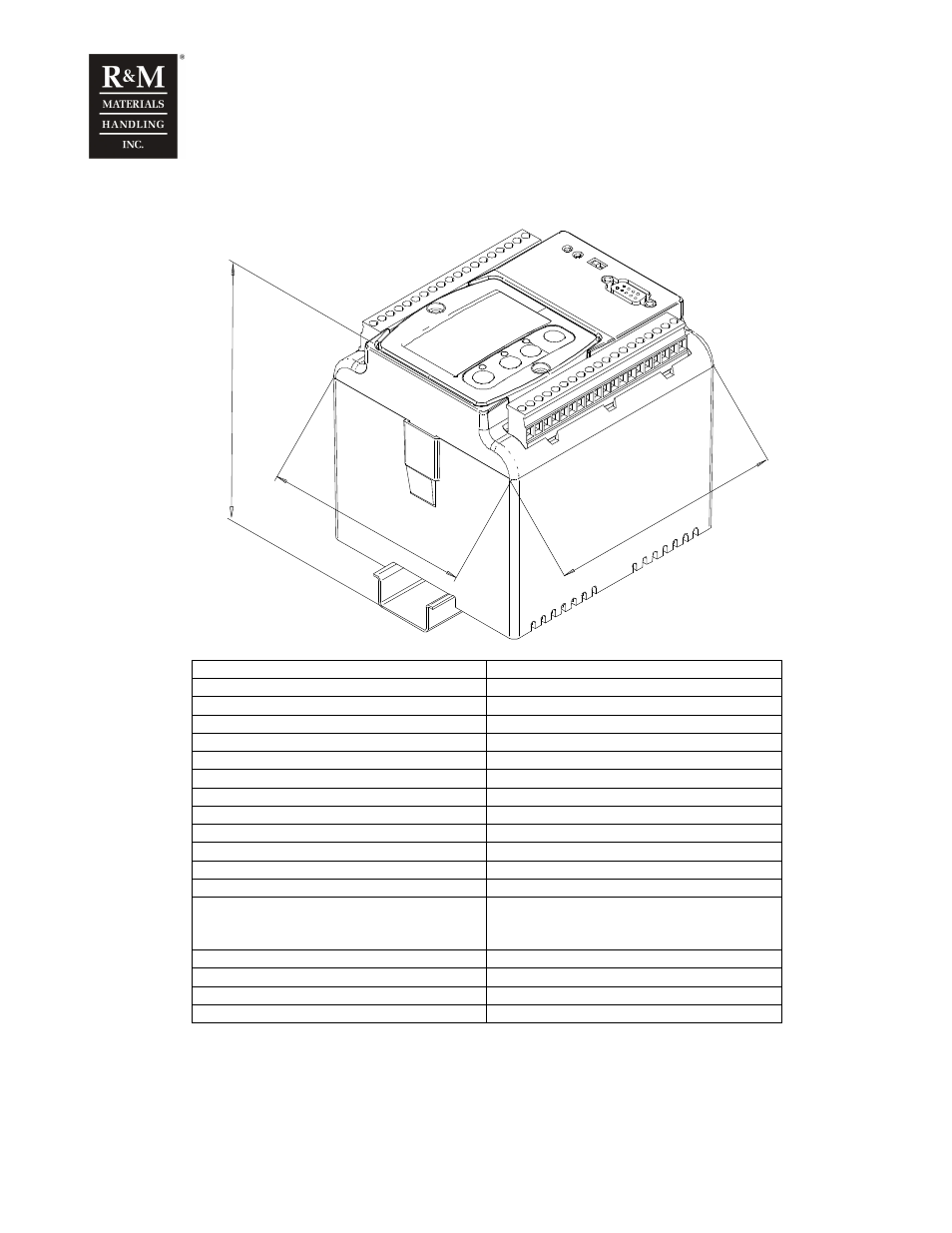

Height (including 15mm assembly rail) 120.3mm; 4.73in
Length 123.8mm; 4.87in
Width 108.5mm; 4.27in
Tightening torque of connector terminal screw 0,4 Nm – 0,6 Nm
