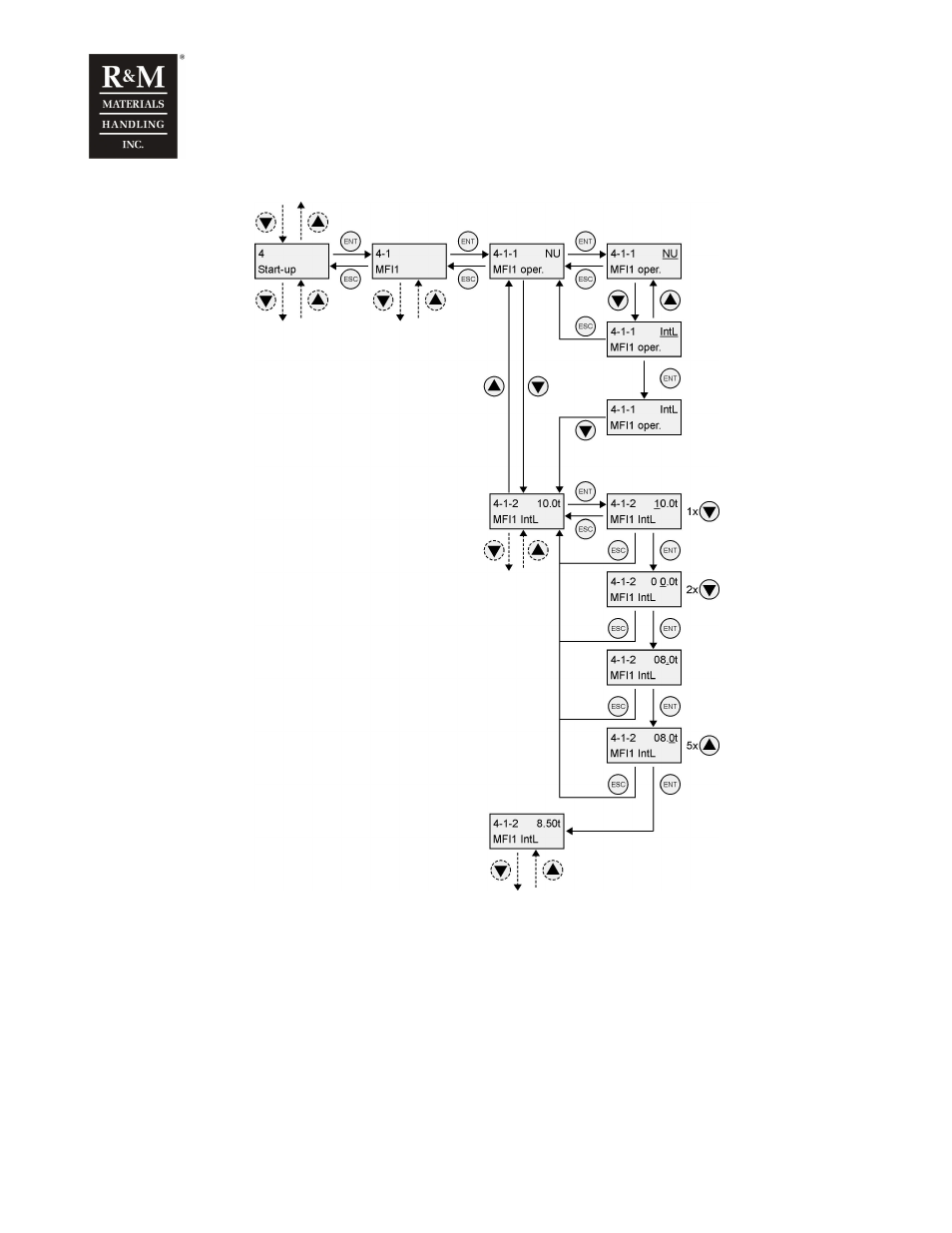

Example: selecting the MFI1 input to intermediate load function, with a load of 8.5 Tons.
3.6 Remote Display
3.6.1 General
The display can be also located at a remote location, for example in the push button station, in the
cubicle-door or in a crane driver cabin. In this way the crane operator can read load information directly
from the display. All features as well as the parameter structure are the same as when the display would
be located at the unit. The display in the remote location is a very effective tool for applications where the
crane operator needs to have a load indication when handling loads.
Please note that the hoist-monitoring unit is designed for overload protection. The displayed load
has an accuracy of approx. ±5% of the rated load and is thus not suitable to be used as a calibrated
weighing scale.
