3.4 Menus
Monitoring items and parameters are presented in menus. The menus are accessible with passwords.
The right to read and/or modify parameters within a menu depends on the selected password.
3.4.1 Moving in menus
Toggling between the menus is done with the up and down arrow buttons. When the desired menu has
been selected, it is entered with the ENT-button. If there are submenus in the main menu, they are
selected and entered in the same way as described above. Returning to the higher menu level is done
with the ESC-button.
3.4.2 Password
When the ENT key is pushed the display shifts to the password request menu. With the ESC key or when
an incorrect password is given, the display shifts back to the load display.
The first display of the password select menu shows four “zeros”, with the leftmost underlined. Pushing
the up and down button will change the digit. The desired digit is selected with the ENT button, after
which the next digit will be underlined. Repeat this procedure until the correct password is given. The
display will now show the first menu “1 Monitor 1”.

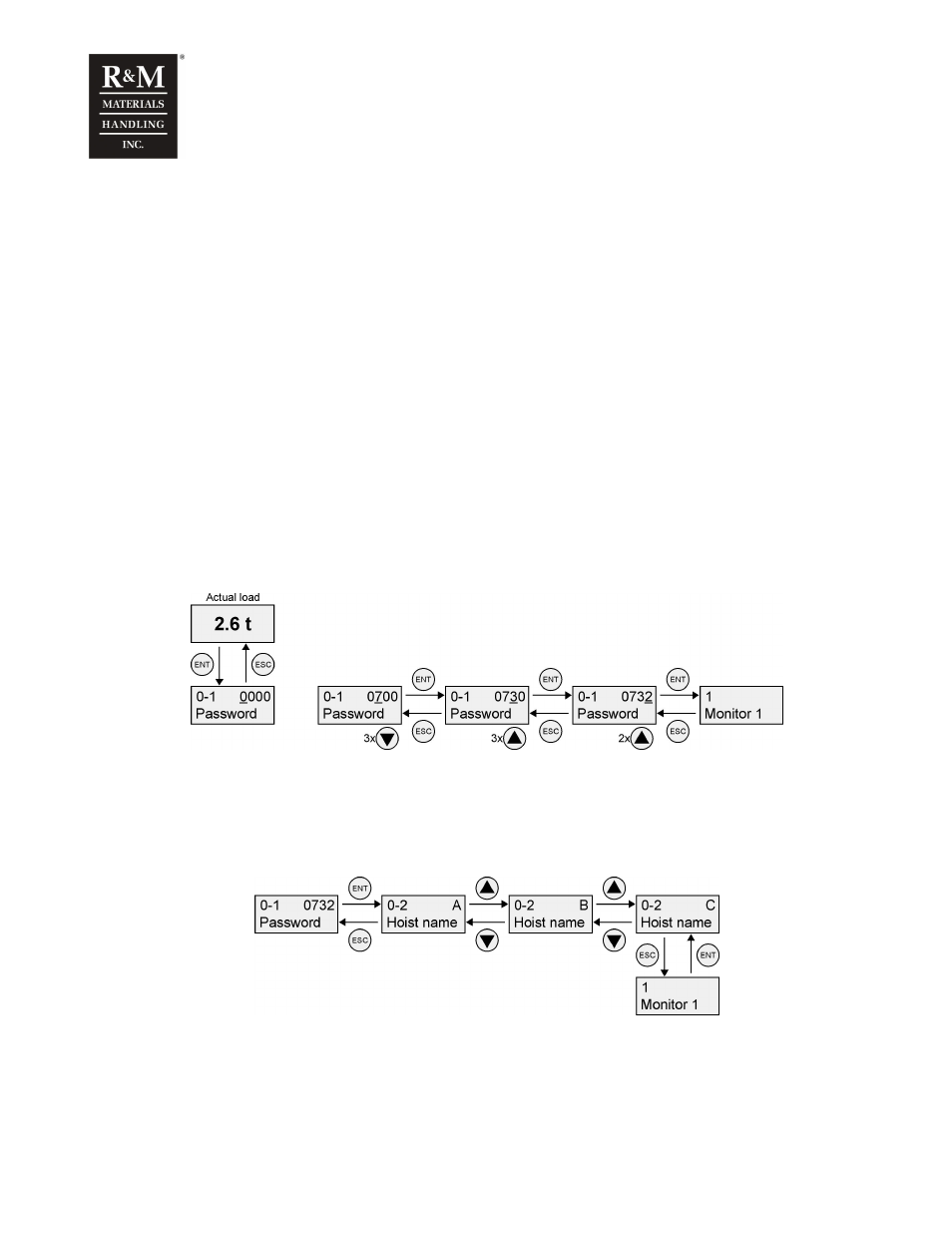

(Example: Level 2 password “0732”)
3.4.3 Hoist selection (only multi-hoists)
In multi-hoist applications, where more then one unit are connected with the CAN-bus, the display will
ask to select the desired unit (A, B, C, D or E) before the display shows the first menu. This way, each
unit can be accessed via another unit. For example, all parameters and values of unit C can be displayed
and modified via unit A.
When reading data from the display in multi hoist application, verify that you are reading the data from
the correct device. The selected hoist is shown in the 0-2 display.
