5.4 Supply voltage phase supervision
The supply voltage phase supervision consists of two functions:
- Missing supply phase detection
- Incorrect supply phase order

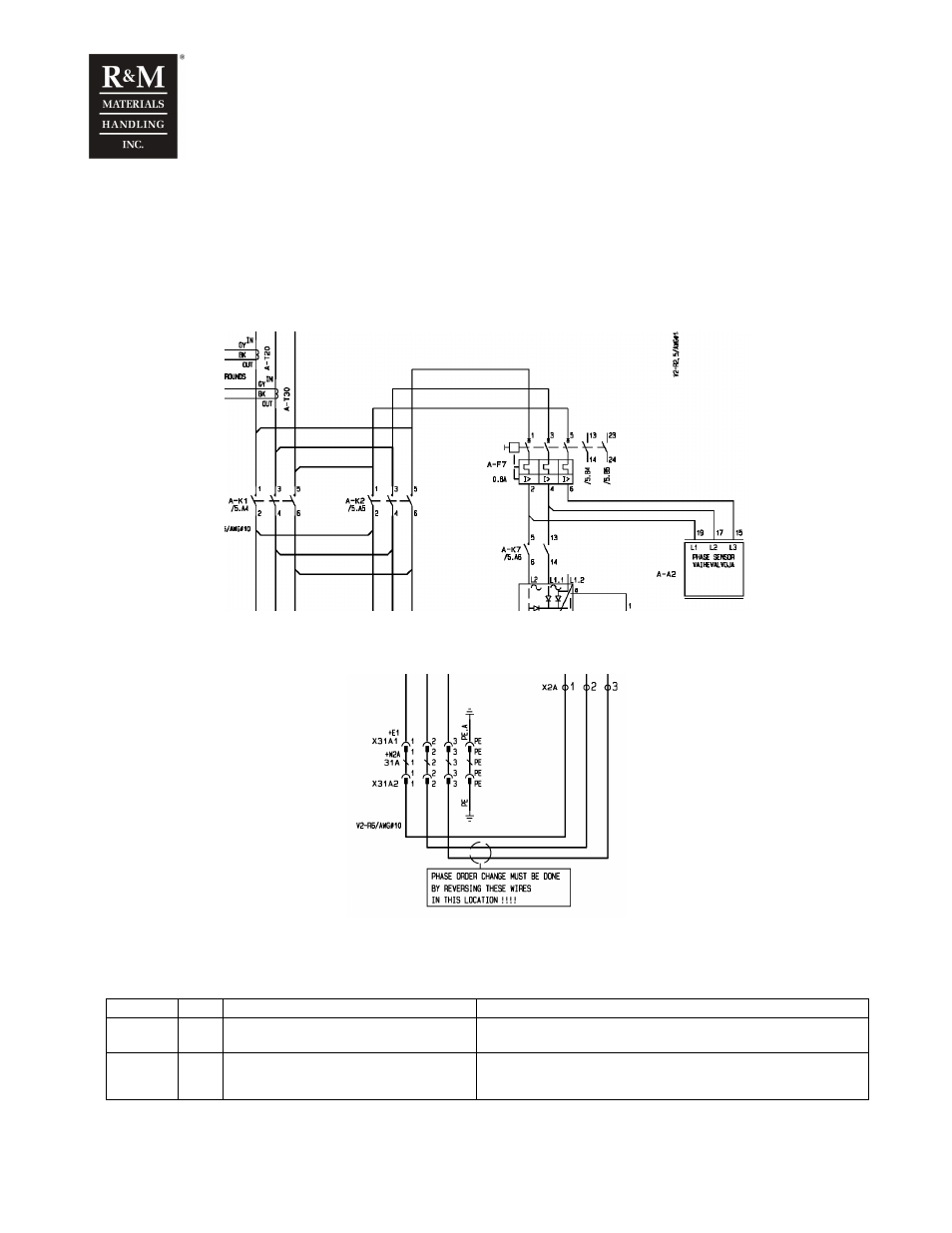

The three supply voltage phases are wired to the hoist-monitoring unit. Each time the unit is powered up,
the phase order is checked. The unit will continuously measure the existing of all three phases.
In case wrong direction of hoisting occurs (reversed phase condition), note that the two input power
wires are reversed at terminal X2A!
5.4.1 Supply phase supervision instructions
Supply phase supervision parameters
Param. Value Description Note
4-10
Single sup Accessible with password 4: 8124
4-10-3 Yes Switches the supply phase supervision on. When the hoist monitoring-unit is connected in insulated or high
impedance grounded network, or when the supply mains are not
connected (i.e. inverter use), the setting must be “No”.
