12.2.5 Connections

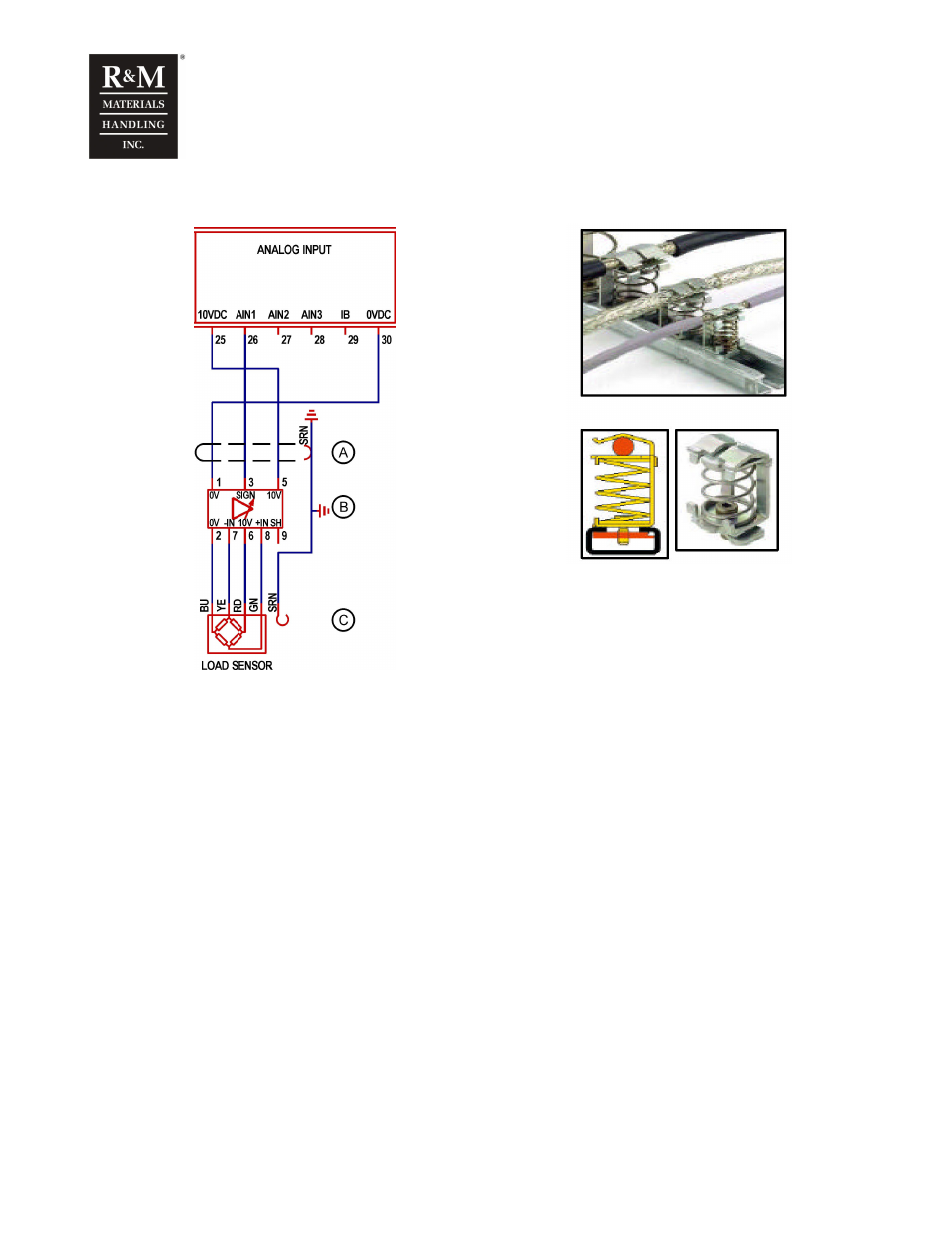

Long cables
A. Shield is grounded with 360 degree connector
B. Full bridge amplifier ESD142
C. Shield end connection in Strain gauge load sensor cable in floating
