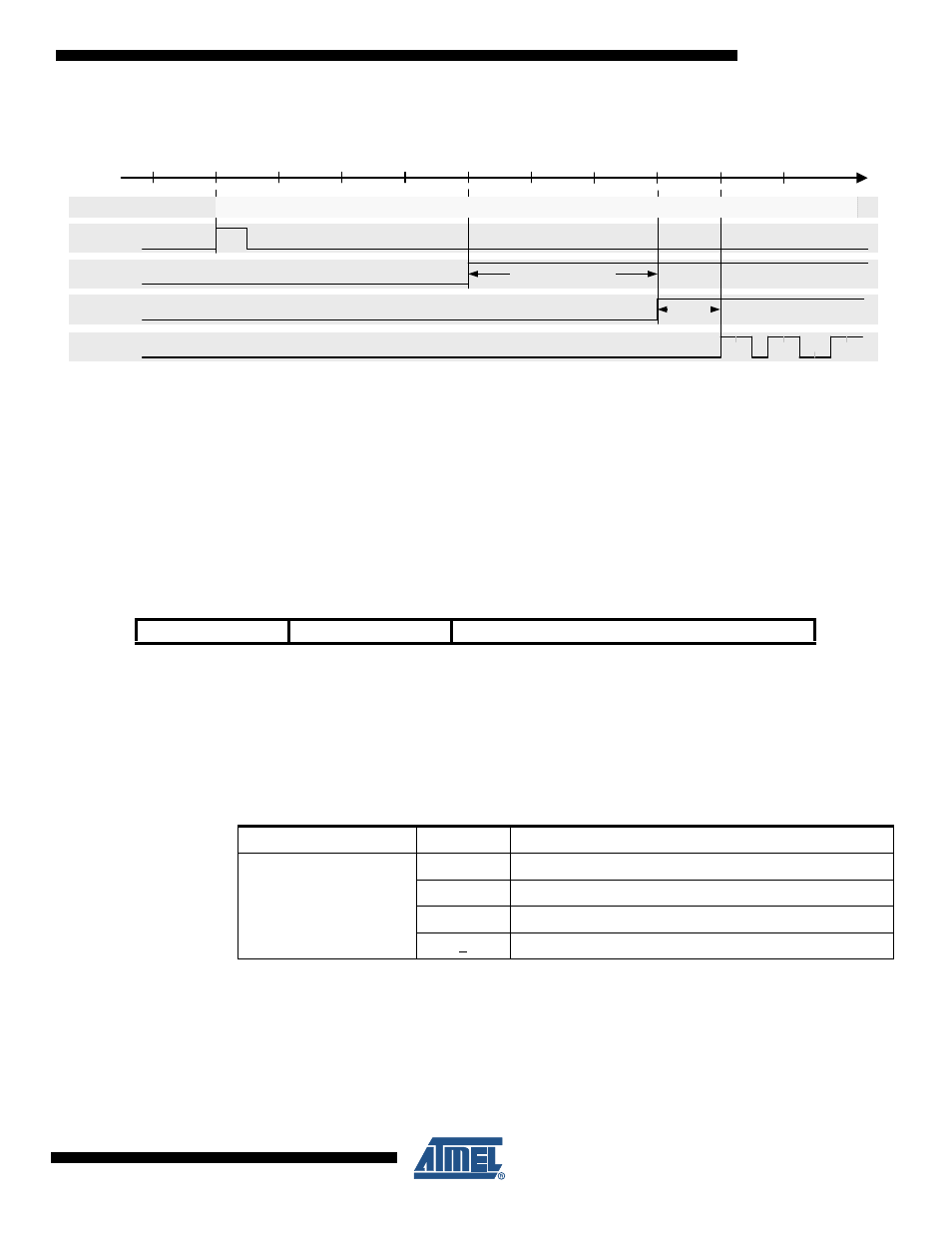

Figure 9-3.
TX Power Ramping
When using an external RF front-end (refer to
Section 11.5 “RX/TX Indicator” on page 147
) it
may be required to adjust the startup time of the external PA relative to the internal building
blocks to optimize the overall PSD. This can be achieved using register bits PA_BUF_LT and
PA_LT.
9.2.5
Register Description
Register 0x05 (PHY_TX_PWR):
This register controls the output power and the ramping of the transmitter.
• Bit [7:6] - PA_BUF_LT
These register bits control the enable lead time of the internal PA buffer relative to the enable
time of the internal PA. This time is further used to derive a control signal for an external RF
front-end to switch between receive and transmit, for details refer to
.
0
6
8
10
SLP_TR
TRX_STATE
PLL_ON
2
12
14
16
18
Length [µs]
PA buffer
4
PA
PA_BUF_LT
PA_LT
Modulation
1 1
1 1
1 1
0 0
0
BUSY_TX
Bit
7
6
5
4
3
2
1
0
+0x05
PA_BUF_LT
PA_LT
TX_PWR
PHY_TX_PWR
Read/Write
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Reset Value
1
1
0
0
0
0
0
0
Table 9-2.
PA Buffer Enable Time Relative to the PA
Register Bits
Value
PA Buffer Lead Time [µs]
PA_BUF_LT
0
0
1
2
2
4
3
6
