Class1 BC04-ext Module BTM-220
Features

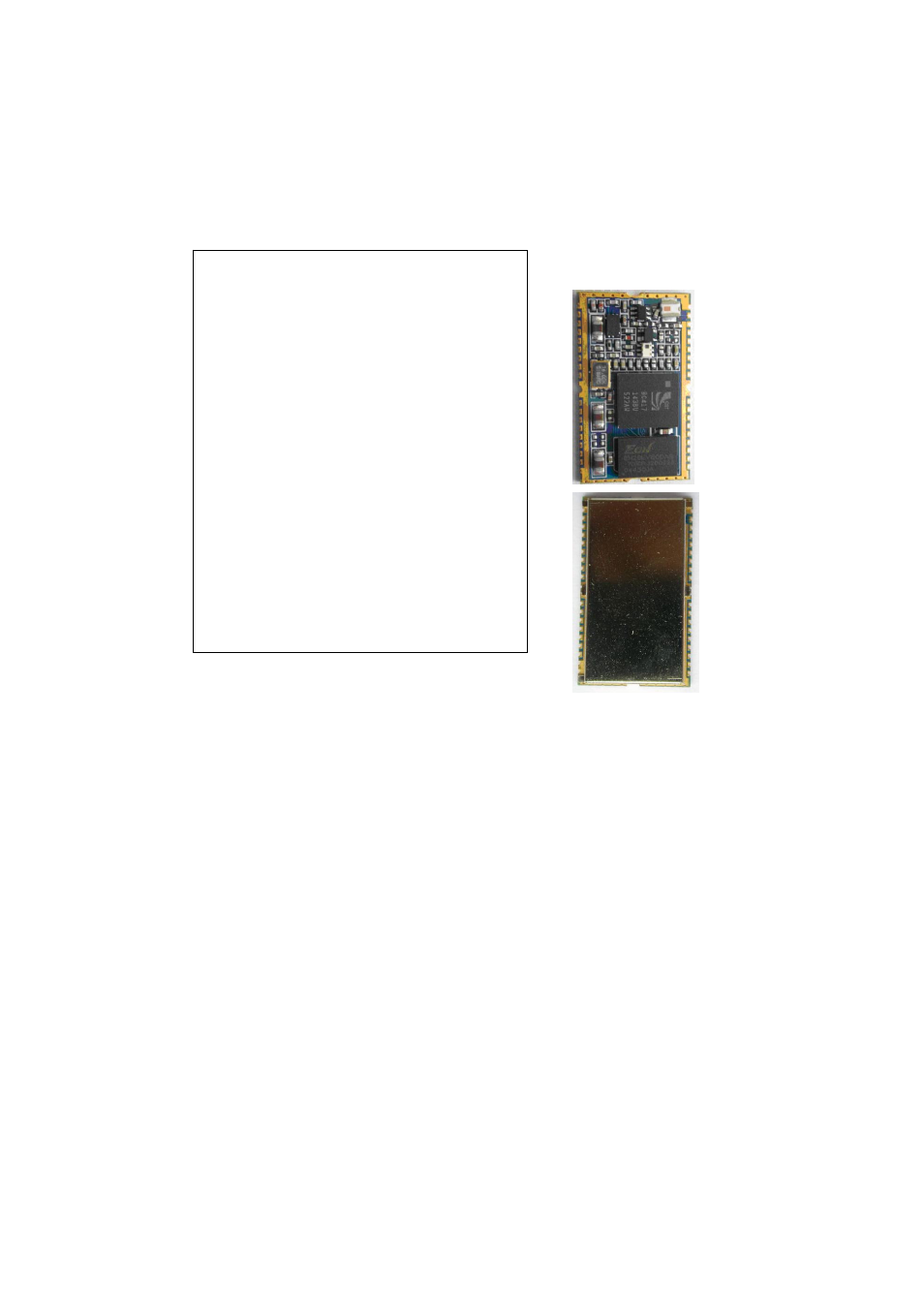

Outline
Block Diagram
■ Bluetooth Ver. 2.0 compliant
■ Transmit Power up to +18dBm(class1)
■ Low current consumption:
Hold, Sniff, Park, Deep sleep mode
■ 2.7V to 3.6V operation
■ Full Bluetooth Data rate over UART and USB
■ Support up to 7 ACL links and 3 SCO links
■ Enhanced Data Rate(EDR) compliant
with Ver.0.9 of specification for both 2Mbps
and 3Mbps modulation modes
■ Interface: USB, UART&PCM( for voice codec)
■ HCI or SPP firmware is available
■ Mini outline: 28.2 X 15.0 X 2.8 mm
Application
● Laptop and Desktop PCs
● Access point
● Domestics and Industrial applications
● Personal Digital Assistants(PDA)
● Serial Adapter
● GPS, POS, Barcode Reader
● Digital camera, Printer& Cellular phone
● Cordless handset
