Wide band multi-channel rf transceiver module

RC1040/1080/1090
2005 Radiocrafts AS
RC1040/RC1080/RC1090 Data Sheet (rev. 1.3)
Page 1 of 17
Wide Band Multi-Channel RF Transceiver Module

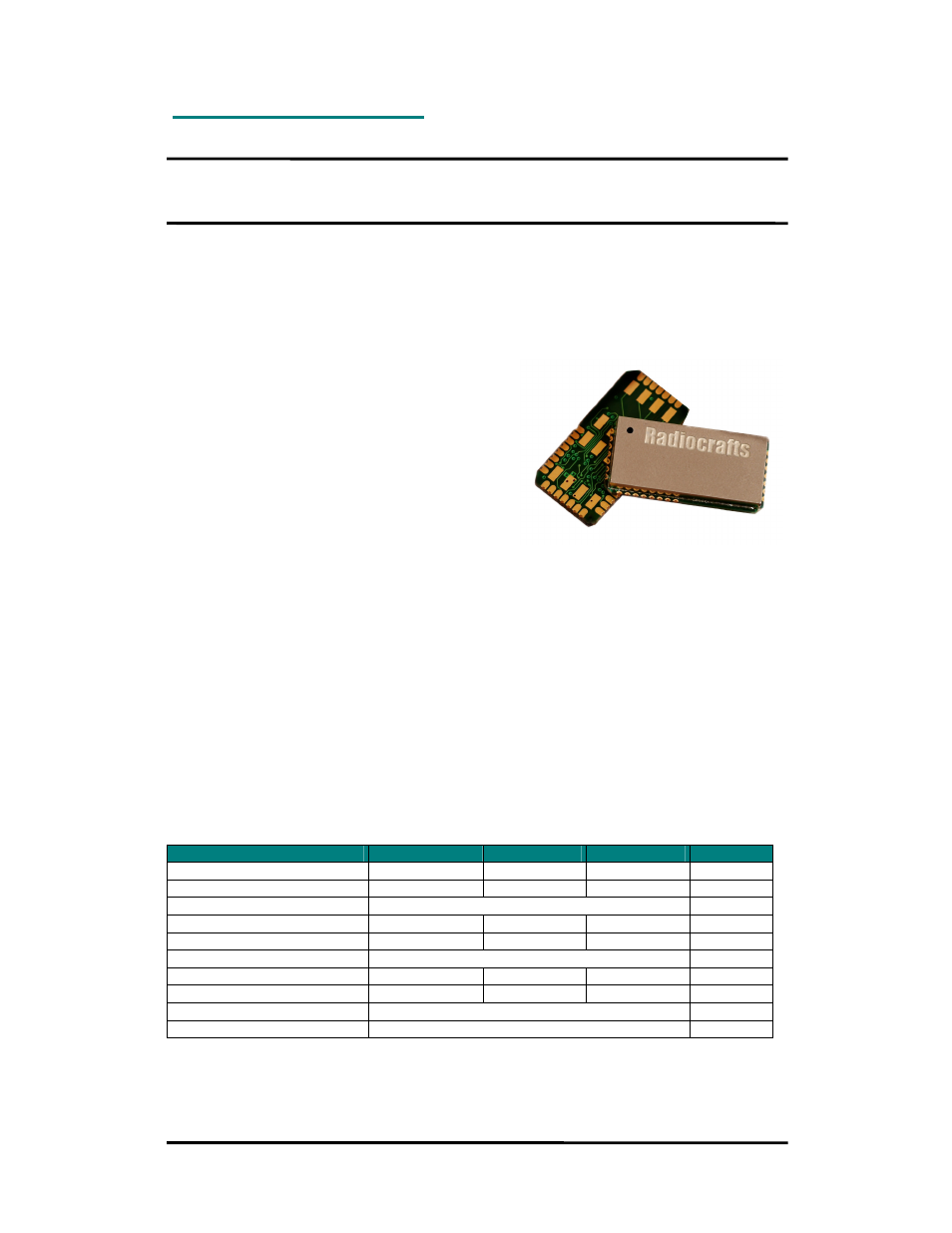

Product Description
The RC1040, RC1080 and RC1090 RF Transceiver Modules are compact surface-mounted
modules for wide band FSK operation with embedded protocol. The modules are completely
shielded and pre-certified for operation under the European and US radio regulations for
license-free use. When used with quarter-wave antennas a line-of-sight range of 500 meter
can be achieved at 433 MHz.
Applications
•
OEM equipment
•
Radio modems
•
Point-of-sales terminals
•
Bar code scanners
•
Telemetry stations
•
Fleet management
Features
•
Smallest in the world (12.7 x 25.4 x 3.5 mm)
•
Very low current consumption, 3nA OFF mode
•
Embedded RC232™ protocol
•
Addressing
•
Error check
•
128 byte data buffer
•
Simple UART interface for easy RS232/422/485 wire replacement
•
Compact shielded module for SMD mounting
•
No external components
•
No configuration required for single-channel use
•
Easy to use data interface, 3/5 V tolerant I/O
•
Multi-channel operation
•
Wide supply voltage range, 2.8 – 5.5 V
•
Conforms with EU R&TTE directive (EN 300 220, EN 301 489, EN 60950)
•
Conforms with FCC CFR 47 part 15
Quick Reference Data
Parameter
RC1040
RC1080
RC1090
Unit
Frequency band
433.05-434.79
868 - 870
902 - 928
MHz
Number of channels
5
8
9
Data rate
19.2
kbit/s
Max output power
9
5
-1*
dBm
Sensitivity
-95
-95
-95
dBm
Supply voltage
2.8 – 5.5
Volt
Current consumption, RX
10.5
13
13
mA
Current consumption, TX
25
25
25
mA
Current consumption, SLEEP
85
uA
Current consumption, OFF
0.003
uA
* Programmable. Maximum allowed radiated power under FCC CFR 47, part 15 is -1 dBm ERP.
PRELIMINARY INFORMATION. Specifications and information herein are subject to change without notice.
