MEDIA SETUP Submenus
73
Orientation
This menu item selects the image orientation to be used when printing the
label.

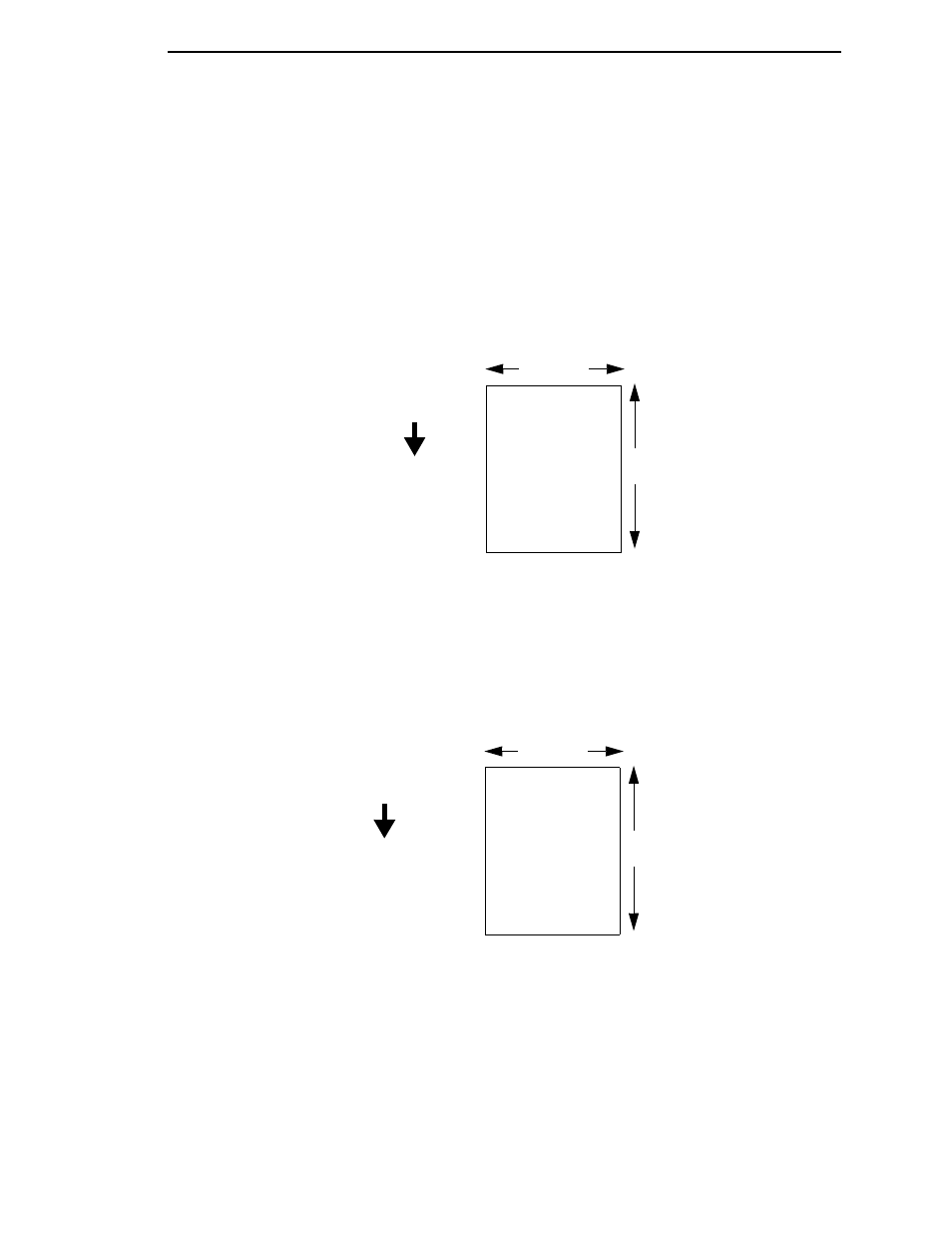

• Portrait . Portrait refers to vertical page orientation, where the height of a
page is greater than its width. The top edge of the image is parallel to the
leading edge of the media. The following illustration is an example, with
the operator viewing the front of the printer.
NOTE: Portrait orientation applies to the PGL emulation. This is regarded as
Inverse Portrait using ZGL.
• Landscape . Landscape refers to horizontal orientation, where the width
of a page is greater than its height. The top edge of the image is the left
edge of the media. The following illustration is an example, with the
operator viewing the front of the printer.
NOTE: Landscape orientation applies to the PGL emulation. This is regarded
as Inverse Landscape using ZGL.
4 inches
6 inches
FEED
Th e top edge of
the im age is
para llel to the
leadi ng edg e of
th e me dia.
Leading Edge
FEED
T
he t
op e
dge
of
the
im
age
is
par
al
le
l t
o
th
e le
ft
edg
e o
f th
e m
edi
a.
Leading Edge
4 inches
6 inches
