Rewinder Full Sensor Setup
251

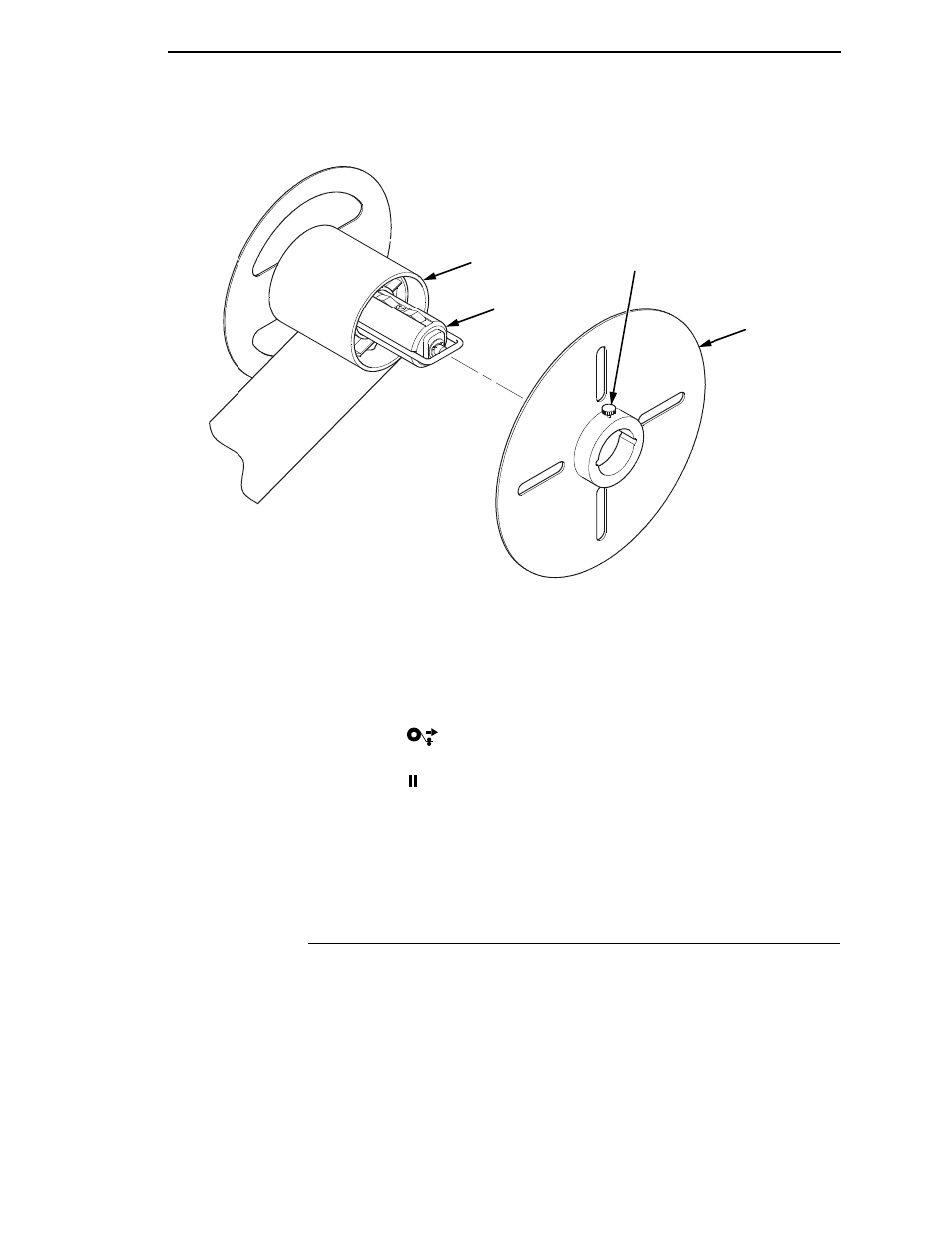

Figure 21. Installing the End Plate
8. Install the media retainer onto the rewinder as shown in Figure 21 until it
is flush against the media take-up core.
9. Tighten the thumbscrew.
10. Rotate the deck lock lever clockwise to close the pivoting deck.
11. Press the (Feed) key to advance the media to the next
TOF (Top-of-Form) position.
12. Press the (Pause) key until ONLINE displays.
13. Close the side cover and media cover.
IMPORTANT The rewinder supports a maximum diameter of 8 inches of printed labels
(including 3 inch media take-up core diameter). Exceeding this diameter
can cause printed labels to rub on the bottom pan.
Rewinder Full Sensor Setup
1. Open the side cover and media cover.
2. Position the rewinder full sensor in the lower position and tighten the
sensor thumbscrew. See Figure 18 on page 249.
NOTE: When the rewinder full sensor detects a roll full condition, the
rewinder beeps and the message REWINDER FULL Remove Roll
displays.
3. Close the side cover and media cover.
pg
rw
lod
9
Media
Retainer
Rewinder
Media
Take-Up
Core
Thumbscrew
