Load Media
241
Load Media

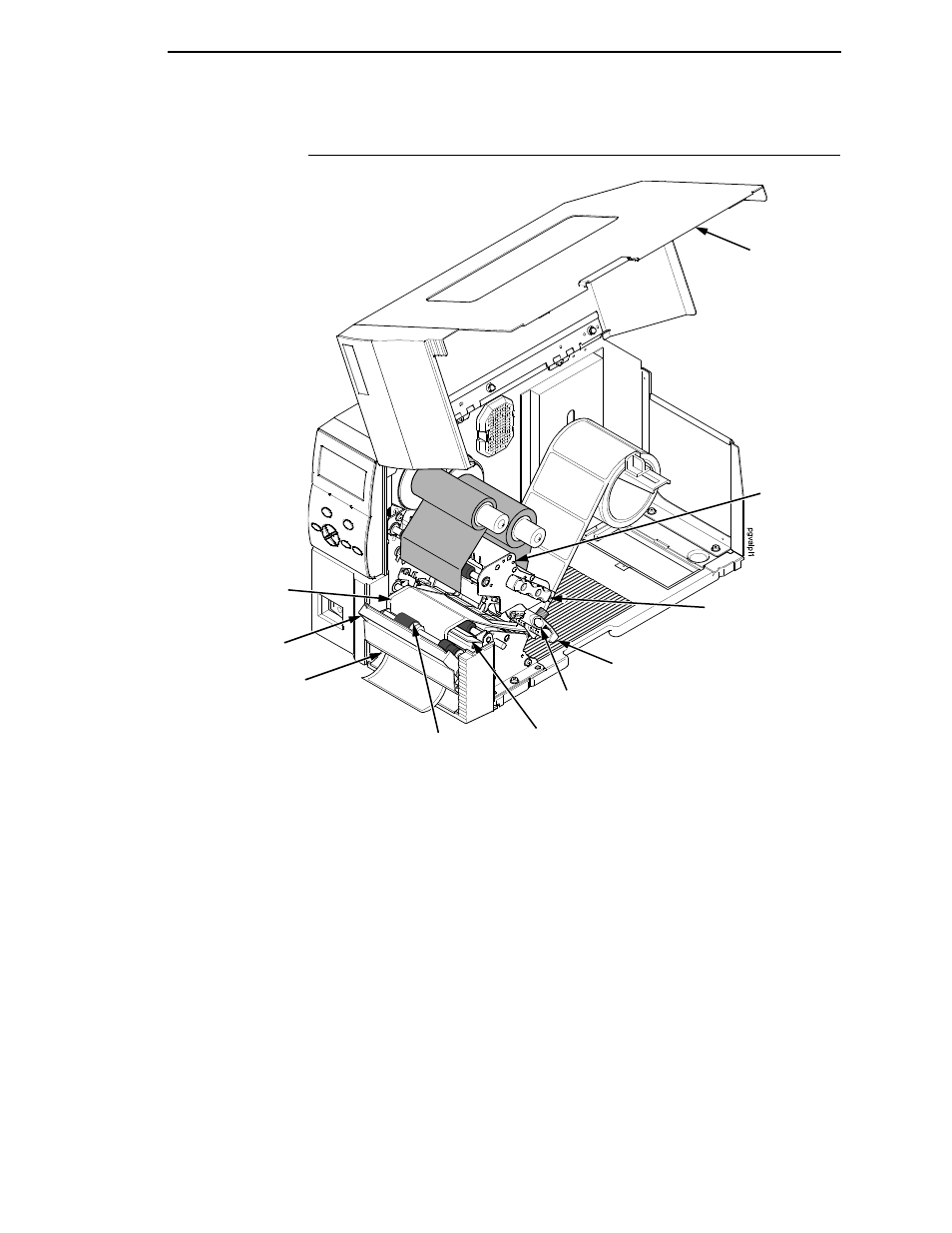

Figure 10. Loading the Printer for Standard Peel Operation
1.
To load media, refer to “Loading Roll Media” on page 25 and complete
step 1 through step 10.
2.
Open the standard peel door by pulling it out and down.
3.
Thread the media over the peel bar, behind the standard peel roller, and
through the standard peel opening (see Figure 10 on page 241).
4.
Horizontally center the standard peel roller over the label.
5.
Peel the label (located over the tear bar) off the liner (refer to Figure 10 on
page 241). This will prevent the labels from sticking to the tear bar during
the initial print feed.
Media Cover
Media Damper
Media Width
Guide
Standard Peel
Door
Standard Peel Roller
Label
Peel Bar
Deck Lock
Lever
Pivoting
Deck
Standard Peel
Opening
