Loading Roll Media
27
6. Thread the media under the media damper, through the media sensor
assembly, and then between the platen (rubber drive roller) and the
printhead.
NOTE: The alternate media path is for inside wound label media.
CAUTION If the blue media width guide locking knob is too loose or is removed,
the media width guide will fall off the printer.
7. Turn the blue media width guide locking knob counterclockwise just
enough to slide the media width guide, and no more.
8. Position the media width guide lightly against the outside edge of the
installed media and tighten the blue locking knob by turning it clockwise.

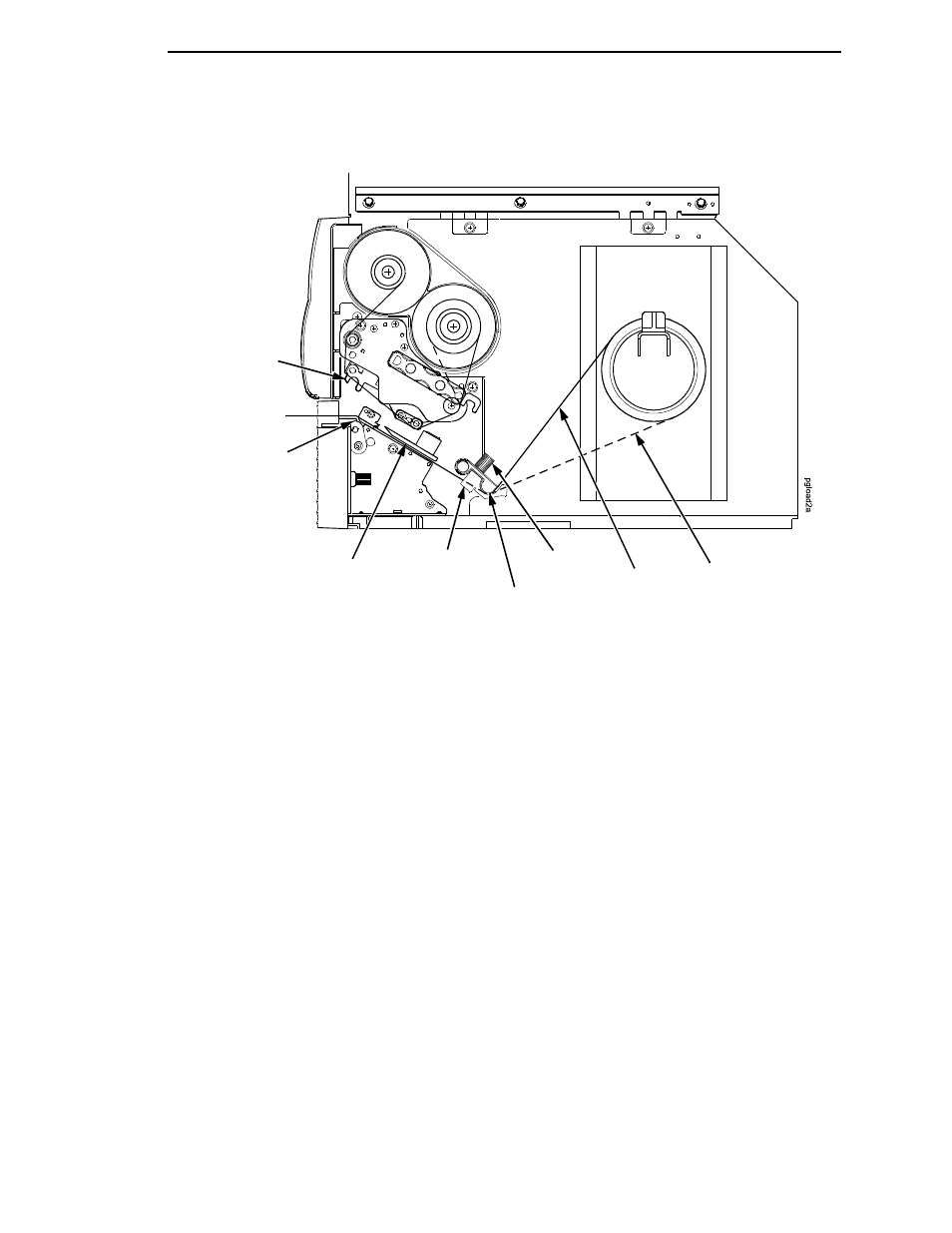

Media
Printhead
Platen
(not shown)
Media Damper
Media
Width Guide
Media Sensor
Assembly
Blue Locking
Knob Alternate
Media Path
