36
CALIBRATION SUBMENU CALIBRATION SUBMENU CALIBRATION SUBMENU CALIBRATION SUBMENU CALIBRATION SUBMENU
The calibration submenu is used for two purposes: To view the applied load as a
percentage of maximum (for adjusting the indicator’s zero offset potentiometers) and
to calibrate the indicator.
CALIBRATION SUBMENU CALIBRATION SUBMENU CALIBRATION SUBMENU CALIBRATION SUBMENU CALIBRATION SUBMENU

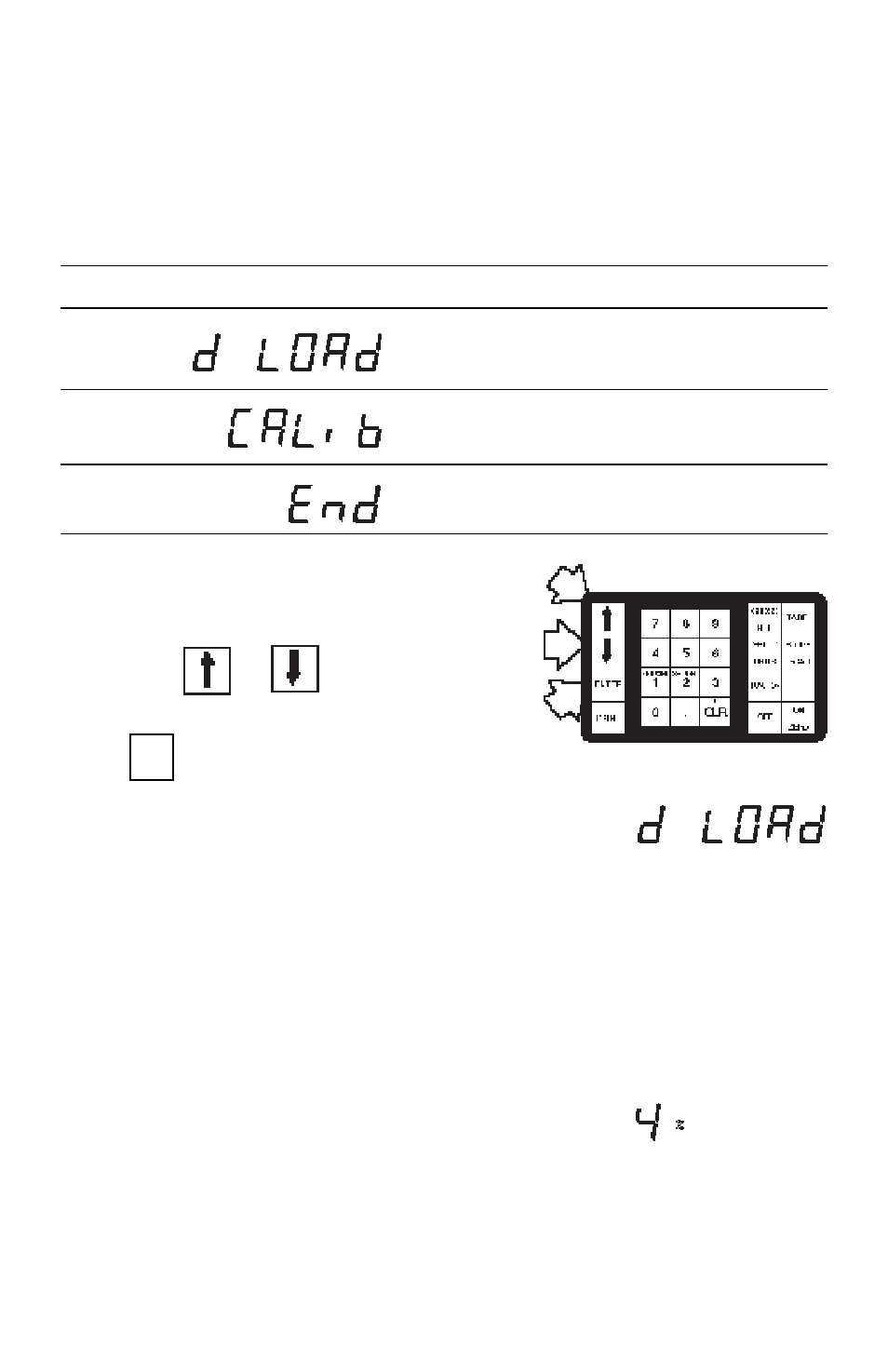

Displayed Selection Displayed Selection Displayed Selection Displayed Selection Displayed Selection Description Description Description Description Description
enables viewing the current load as a
percentage of full scale
places indicator in calibration mode and
begins calibration procedure
used to exit calibration menu
To select an item from this submenu:
Press UPUP or DOWN until the de-
sired selection is displayed, then press
ENTER .
Dead Load Dead Load Dead Load Dead Load Dead Load
Dead Load causes the current load on the
platform to be displayed as a percentage
of maximum. This is used when making
adjustments to the load cell zero offset
potentiometers.
When you select “d.Load” from the Cali-
bration submenu:
1. The current setting will be displayed.
With no load on the load receiver, it
should be between 1% and 5%. The
percent indicator (%) will be on.
2. If the value is not between 1% and
5%, it must be adjusted using the
following Zero Adjustment procedure.
Example:
ENTER ENTER ENTER ENTER ENTER
