Reference [Effects]

ZOOM MRS-802

99

Track8

Track7

Track 2

Track 1

OUTPUT

MASTER

DRUM kit

Recorder
section

(1)

(2)

Insert effect

[Insert effect]

Rhythm
section

Input mixer

INPUT1/2

Track mixer

(3)

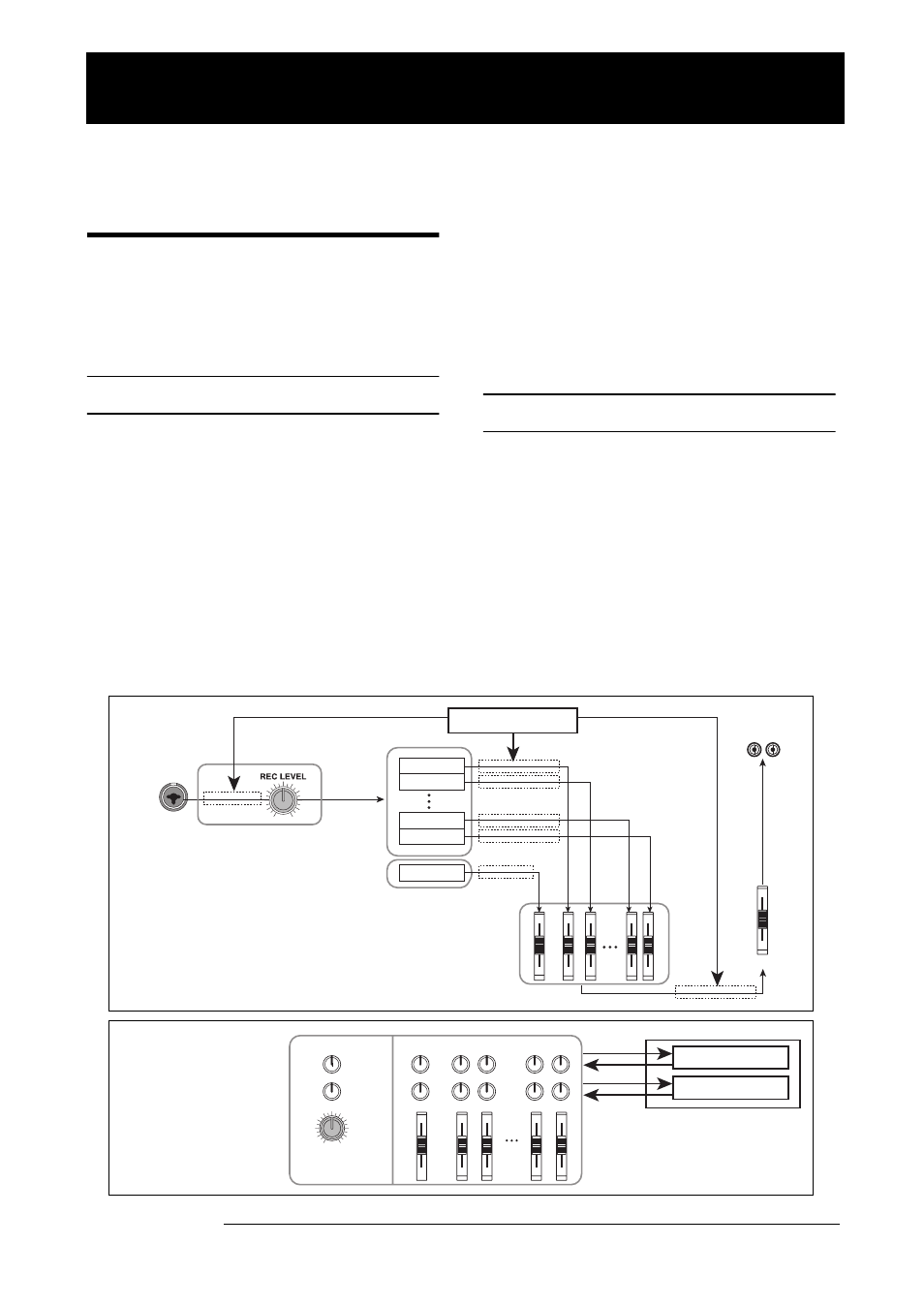

About the effects

The MRS-802 has two types of effects, “insert effects” and

“send/return effects”. The two types can be used

simultaneously. The two types of effect are described below

in detail.

Insert effect

The insert effect is used by inserting it into a specific signal

route. You can select one of the following locations for

inserting the effect.

(1) Input mixer

(2) Any channel of the track mixer

(3) Immediately before the [MASTER] fader

For example if you insert the effect into the input mixer, the

input signal is directly processed by the effect and the result

is recorded on a track of the recorder. Alternatively, if you

insert the effect into a channel of the track mixer, the effect

processes the playback signal from the audio track or drum

kit.

By selecting a point immediately before the [MASTER]

fader, you can use the effect to process the final mix before

recording on the master track.

Send/return effects

The send/return effects are internally connected to the send/

return of the mixer section. The MRS-802 has two send/

return effects, reverb (REVERB) and chorus/delay

(CHORUS/DELAY), which can be used simultaneously.

The send levels of the input mixer or track mixer adjust the

effect depth of the send/return effects. Raising the send level

will send the corresponding signal to the input of the effect,

and the signal processed by the effect will be returned

immediately before the [MASTER] fader, and mixed with

the other signals.

Reference [Effects]

This section explains the functions and operation of the effect section built into the MRS-802.

REC LEVEL

DRUM

1

2

7

8

[Send/return effect ]

Track mixer

Send/return effect

Input mixer

REVERB

CHORUS/DELAY

REVERB SEND

CHORUS/DELAY SEND
