Reference [Mixer]
ZOOM MRS-802
67
DRUM 1 2 3 4 5 6 7 8 MASTER
Track 1
Track 2
Track 3
Track 4
Track 5
Track 6
Track 7
Track 8
Master track
OUTPUT
To master
track
From master track
Drum
sound
From
immediately
after [MASTER] fader
To immediately
before [MASTER] fader
Recorder section
Rhythm section
Track mixer

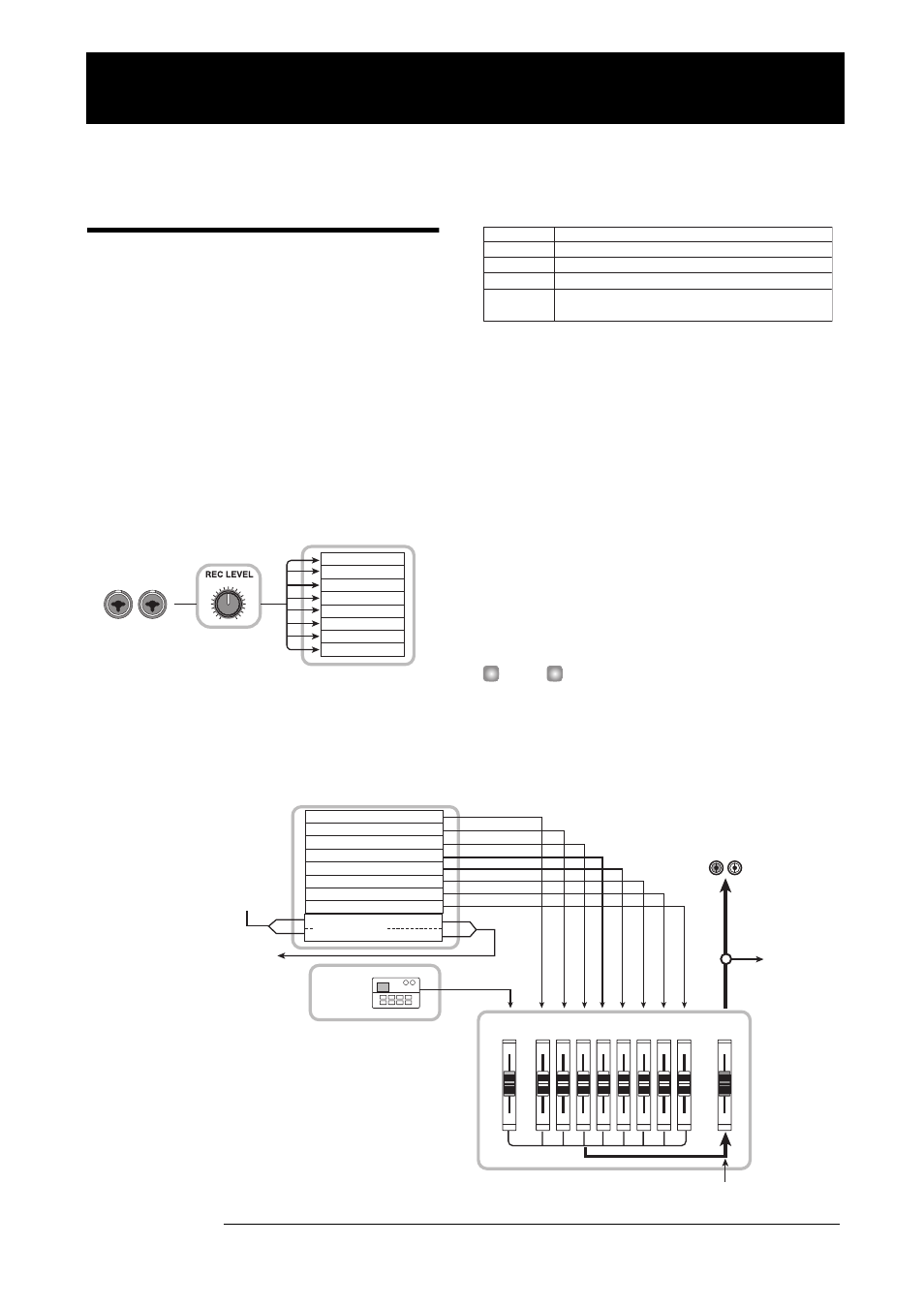

About the mixer
The mixer of the MRS-802 is divided into two sections: an
“input mixer” that processes the input signals from the input
jacks, and a “track mixer” that processes the signals from the
tracks of the recorder section and from the rhythm section.
Details of each mixer are described below.
■ Input mixer
The input mixer serves to adjust the sensitivity of the signals
that are input from the INPUT 1/2 jacks, set various
parameters such as pan and send levels to the send/return
effects, and assign the signals to the recorder tracks.
The parameters that can be adjusted in the input mixer are
listed in the following table.
■ Track mixer
The track mixer serves to process the playback signals of the
recorder tracks (1 - 8) and the rhythm section (drum track),
and mix these signals to stereo.
The faders and status keys are used to adjust the volume for
each track and control the on/off setting.
The signal mixed by the track mixer is routed via the
[MASTER] fader to the MASTER OUTPUT jacks and the
master track (see diagram below).
The parameters that can be adjusted in the track mixer are
listed in the following table.
H INT
The drum kit signal is in stereo. For the drum channel of the
track mixer, the left/right parameter settings are therefore
linked.
INPUT 1/2
jacks
Input mixer
Track 1
Track 2
Track 3
Track 4
Track 5
Track 6
Track 7
Track 8
Recorder section
CHO SEND
REV SEND
PAN
REC LVL
Volume sent to chorus/delay (send/return effect)
Volume sent to reverb (send/return effect)
Left/right position (L/R channel balance)
Volume of input signal (position of [REC LEVEL]
control)
Description Parameter
Reference [Mixer]
This section explains the functions and operation of the two types of mixers built into the MRS-802.
