Reference [Effects]
ZOOM MRS-802
103

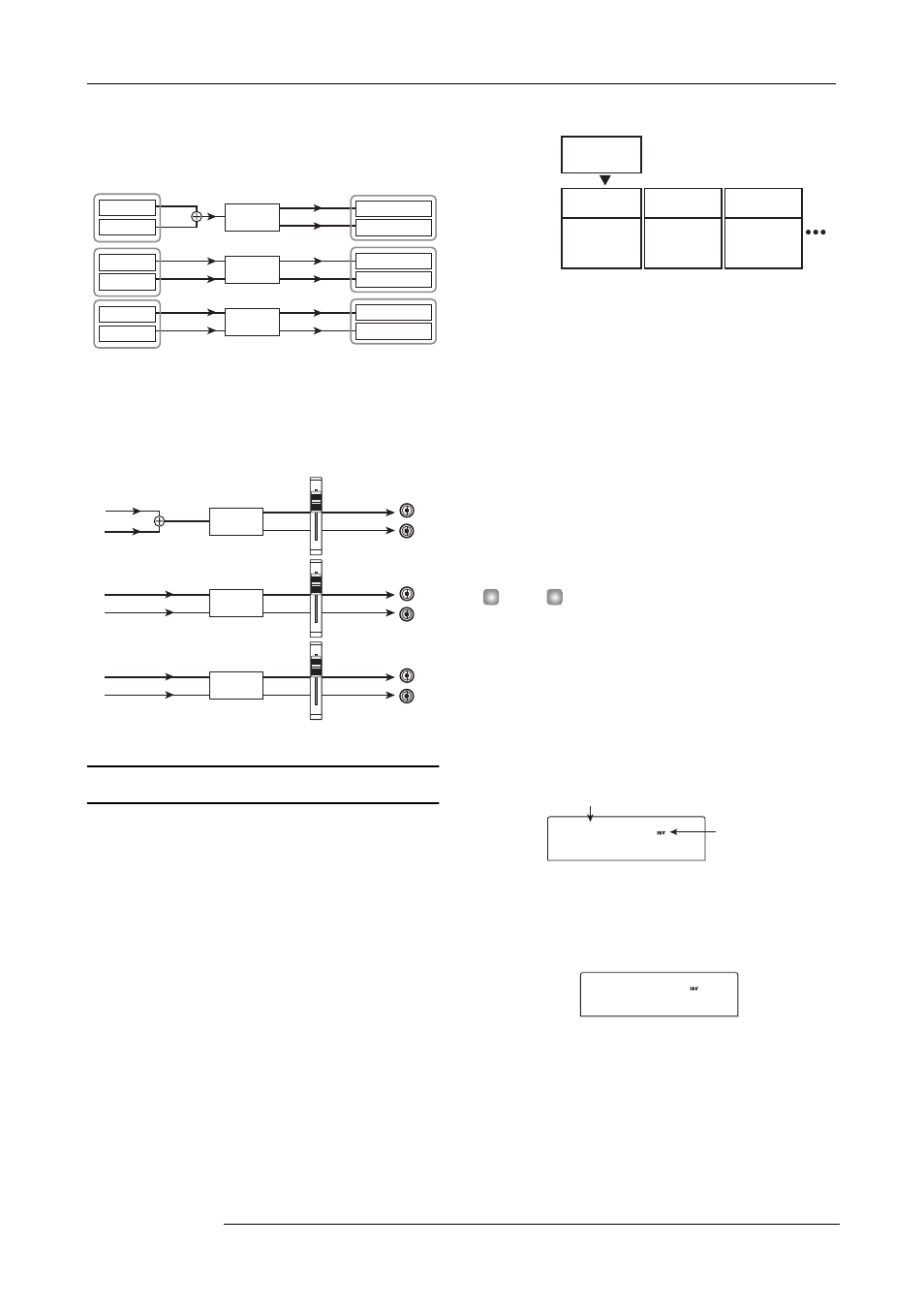

• Two mono tracks (1/2, 3/4, 5/6, 7/8) or drum track
selected as insert location
■ When inserted immediately before
[MASTER] fader
Editing the insert effect patch
The effect modules of the insert effect have various “effect
parameters” that can be adjusted to make detailed changes to
the character of the effect. By editing the effect parameters,
you can obtain the desired tone or effect.
For some effect modules, you can change the “effect type”.
For example in the MIC algorithm, the MODULATION/
DELAY effect module provides ten effect types such as
chorus, flanger, and phaser, and use any one of these.
When you change the effect type, the effect parameters will
also change.
This section explains how to edit the effect type and effect
parameters for the currently selected patch.
1.
Use the [INSERT EFFECT] keys to select an
algorithm, and use the PATCH SELECT [ Q ]/[ W ]
keys or the dial to select the patch that you want to
edit.
It is not possible to change the algorithm of a patch. For this
reason, you must first begin by selecting a patch that uses the
desired algorithm, even when you want to create a patch
from scratch.
H INT
The indication “EMPTY” appears instead of the patch name
if the patch is empty. To create a patch from scratch, select
an empty patch in the desired algorithm.
2.
Press the [EDIT] key.
The first line of the display will show “EDIT”. This
indicates that the patch can now be edited.
3.
Use the cursor left/right keys to select the effect
module that you want to edit.
The first line of the display shows the following indications
for each effect module.
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
Track
Track FADER
FADER
Track
Track FADER
FADER
Track
Track FADER
FADER
Recorder Track mixer
OUTPUT
L
R
L
R
L
R
L
R
L
R
L
R
[MASTER] fader
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
MODULATION/
DELAY
CHORUS
DEPTH
RATE
MIX
FLANGER
DEPTH
RATE
FB
PHASER
POSITION
RATE
COLOR
Effect
module
Effect type
Effect
parameters
"EDIT"
Effect module types
COMP COMP
SENS
SENS
MOD/DLY MOD/DLY
CHORUS
CHORUS
