Reference [Mixer]
ZOOM MRS-802
69
the insert effect). The [CLIP] indicator will light if the level
is too high. Set the recording level as high as possible, but
avoid settings that cause the [CLIP] indicator to light.
H INT
• The level of the signal sent to the recording track will
change according to the settings of the insert effect
parameters. If you switch insert effect patches or edit the
parameters, you should once again check whether the
recording level is appropriate.
• The precise setting of the [REC LEVEL] control parameter
can be checked by pressing the track parameter section
[TRACK PARAMETER] key
→
[INPUT 1] (or [INPUT 2]) and
repeatedly the cursor down key. The value set with the
[REC LEVEL] control is shown numerically. This is useful to
obtain accurate information about the recording level
setting.
8.
Press the status key for the recording destination
track (1 - 8) so that the key is lit in red. The track is
now ready for recording.
The input signal from the input mixer will be sent to the
recording track. You can select record mode for two tracks
by causing two status keys to light up. Combinations are
limited to 1/2, 3/4, 5/6, or 7/8.

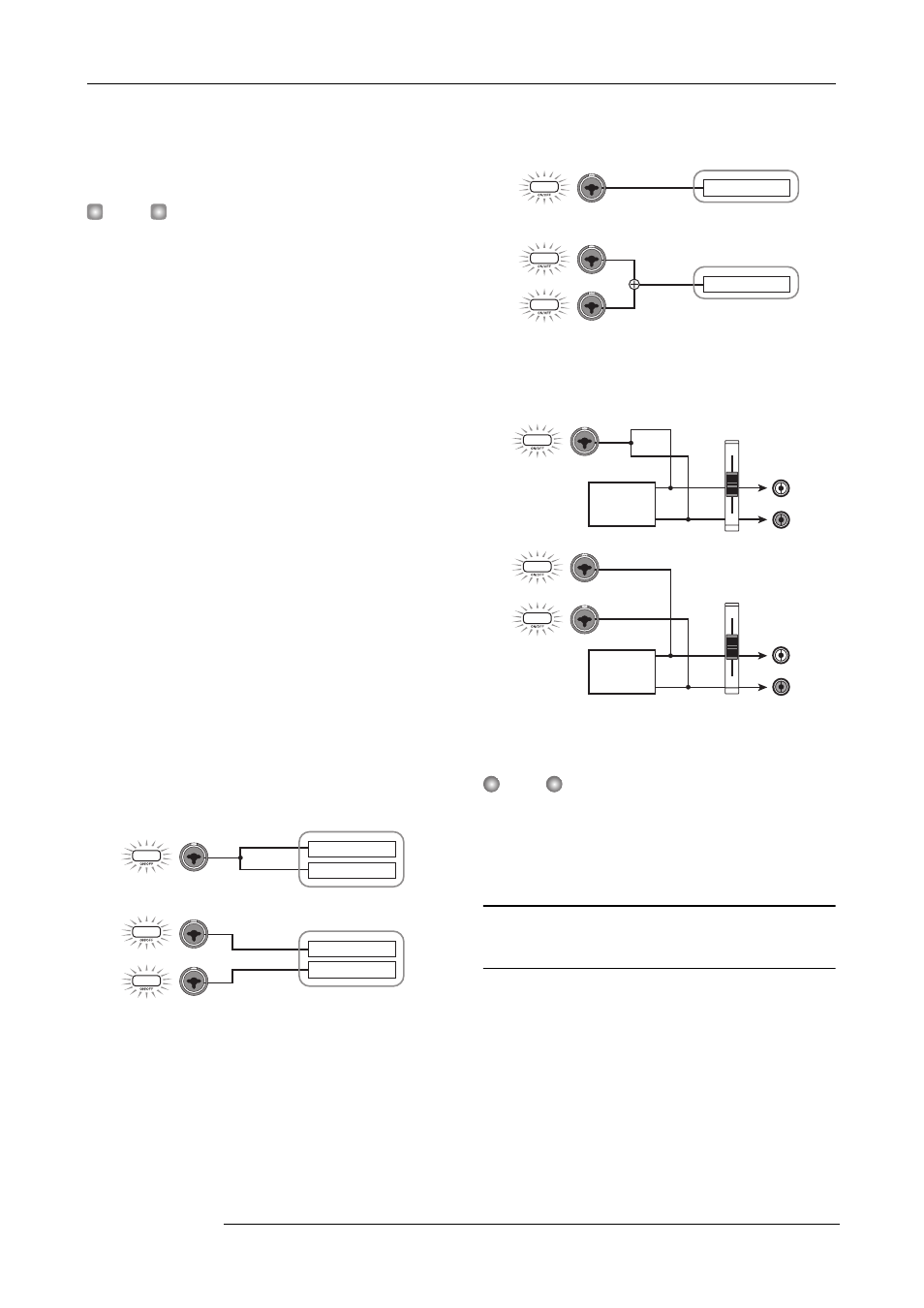

The signal flow from the input mixer to the track will change
as follows, depending on the number of inputs and recording
tracks.
• Two mono tracks selected as recording tracks
• One mono track selected as recording track
• No track selected as recording track
N OTE
The diagrams above show the signal flow when the insert
effect has not been inserted into the input mixer. For details
on the signal flow when the insert effect is inserted, refer to
page 102.
Adjusting the depth of the send/
return effects
The depth of the send/return effects can be adjusted by
setting the volume (send level) of the signal that is sent from
the input mixer to each send/return effect (chorus/delay,
reverb).
In normal operation, sending the signal from the input mixer
to the send/return effect will only apply the effect to the
signal that is sent from the MASTER OUTPUT jacks, and
will not affect the signal that is recorded on a track.
INPUT 1
INPUT 1
INPUT 2
Track
Track
Track
Track
Recorder
Recorder
INPUT 1
INPUT 1
INPUT 2
Track
Recorder
Track
Recorder
INPUT 1
INPUT 1
INPUT 2
OUTPUT
L
R
OUTPUT
L
R
MASTER
MASTER
[MASTER]
fader
[MASTER]
fader
Track
mixer
Track
mixer
