Installing the CD-R/RW Drive

ZOOM MRS-802

17

Power cable

Flat cable

Caution

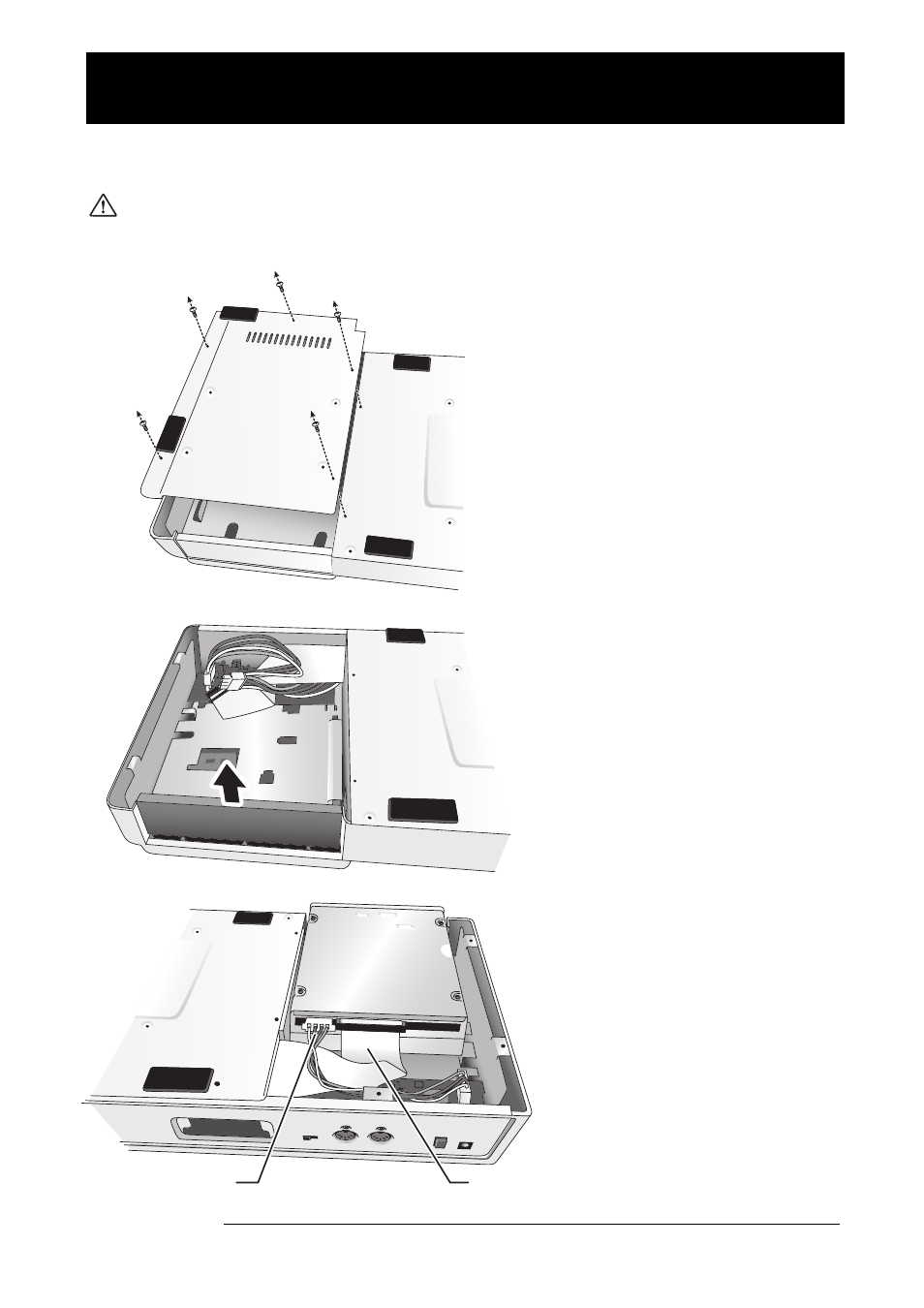

1.

Remove the drive mounting screws

from the bottom of the MRS-802,

and remove the bottom plate.

Take care not to lose the screws, since they

will be required again for assembly.

2.

Remove the drive bay blank panel

from the front side of the chassis.

3.

Plug the power cable and flat cable

from the chassis into the respective

connectors on the CD-R/RW drive.

Installing the CD-R/RW Drive

To install the separately available CD-R/RW drive into the MRS-802 model without preinstalled CD-R/RW drive, proceed as

follows.

Make sure to disconnect all cables and AC adaptor before installing the CD-R/RW drive.
