Reference [Effects]
ZOOM MRS-802
102
H INT
The indication “EMPTY” appears instead of the patch name
if the patch is empty. Selecting this will have no effect.
3.
If you want to temporarily turn the insert effect off,
press the [BYPASS/TUNER] key in the effect
section.
The [BYPASS/TUNER] key lights up, and the insert effect
is bypassed. Pressing the [BYPASS/TUNER] key once
more enables the effect again.
H INT
Pressing the [ENTER] key in the bypass condition activates
the tuner function (
→
p. 136).
4.
To return to the main screen, press the [EXIT] key.

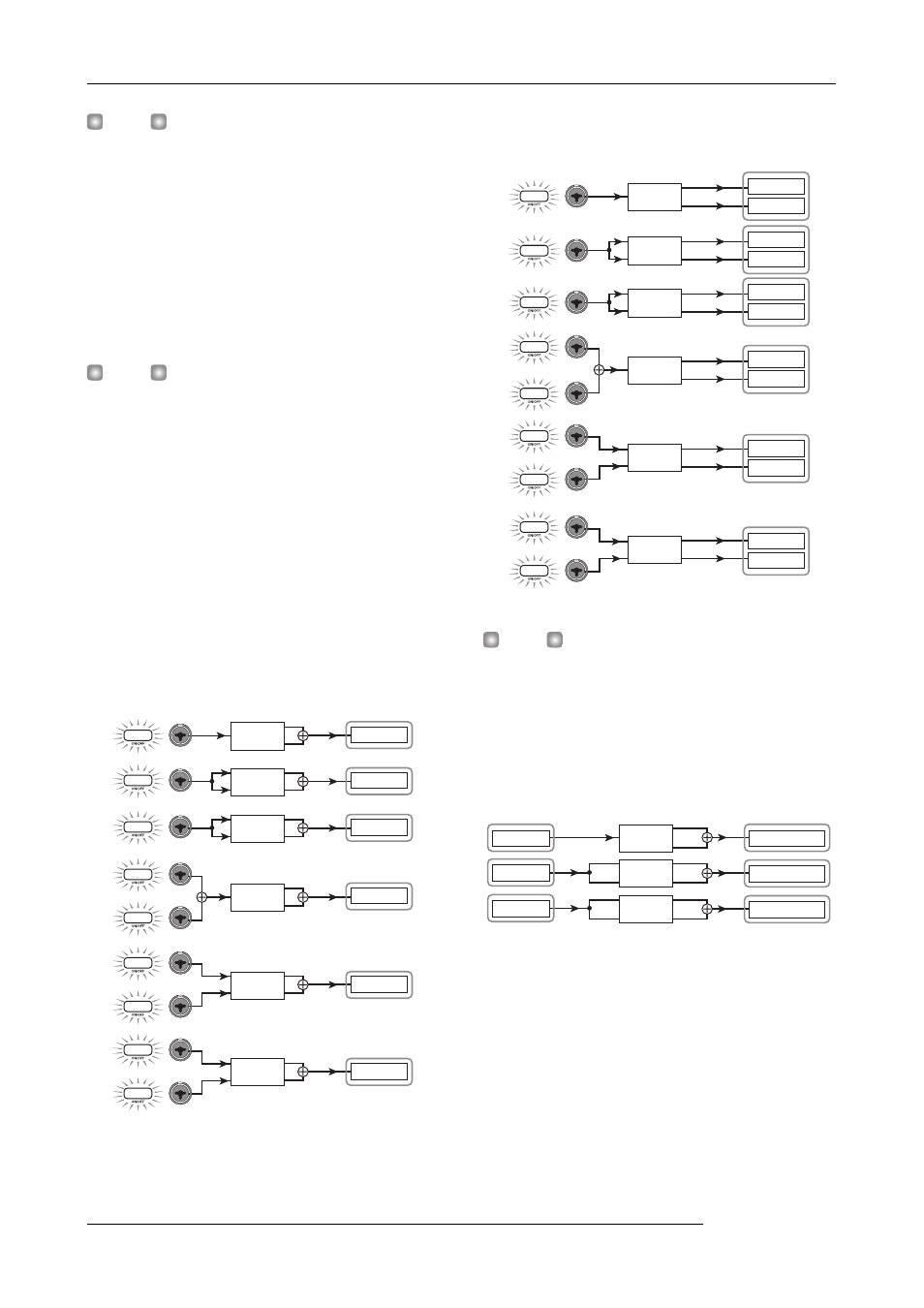

The flow of the signal that passes through the insert effect
will change as shown below, depending on the insert
location, the number of input signal channels, and the input/
output type of the insert effect. (“M
→ S” indicates mono
input/stereo output, “S
→ S” indicates stereo input/output,
“Dual” indicates mono input/output x 2.)
■ When inserted into the input mixer
• Recording on mono tracks (tracks 1 - 8)
• Recording on two mono tracks (1/2, 3/4, 5/6, 7/8)
H INT
When no recording track is selected, the output signal of the
insert effect is sent to a point directly before the [MASTER]
fader and mixed with the track mixer signal.
■ When inserted into the track mixer
• Mono track (track 1 - 8) selected as insert location
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
INPUT 1 INPUT
Recorder
Track
Track
Track
Track
Track
Track
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
INPUT 1 INPUT
Recorder
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
Track
Track FADER
FADER
Track FADER
Recorder Track mixer
