Figure 3-4 wall-mounting method using 2x4’s, Figure 3-4, Wall-mounting method using 2 x 4’s –11 – Xantrex Technology SW Plus 4024 User Manual

Page 93: Figure 3-4 wall-mounting method using 2 x 4’s

Pre-Installation

976-0043-01-02

3–11

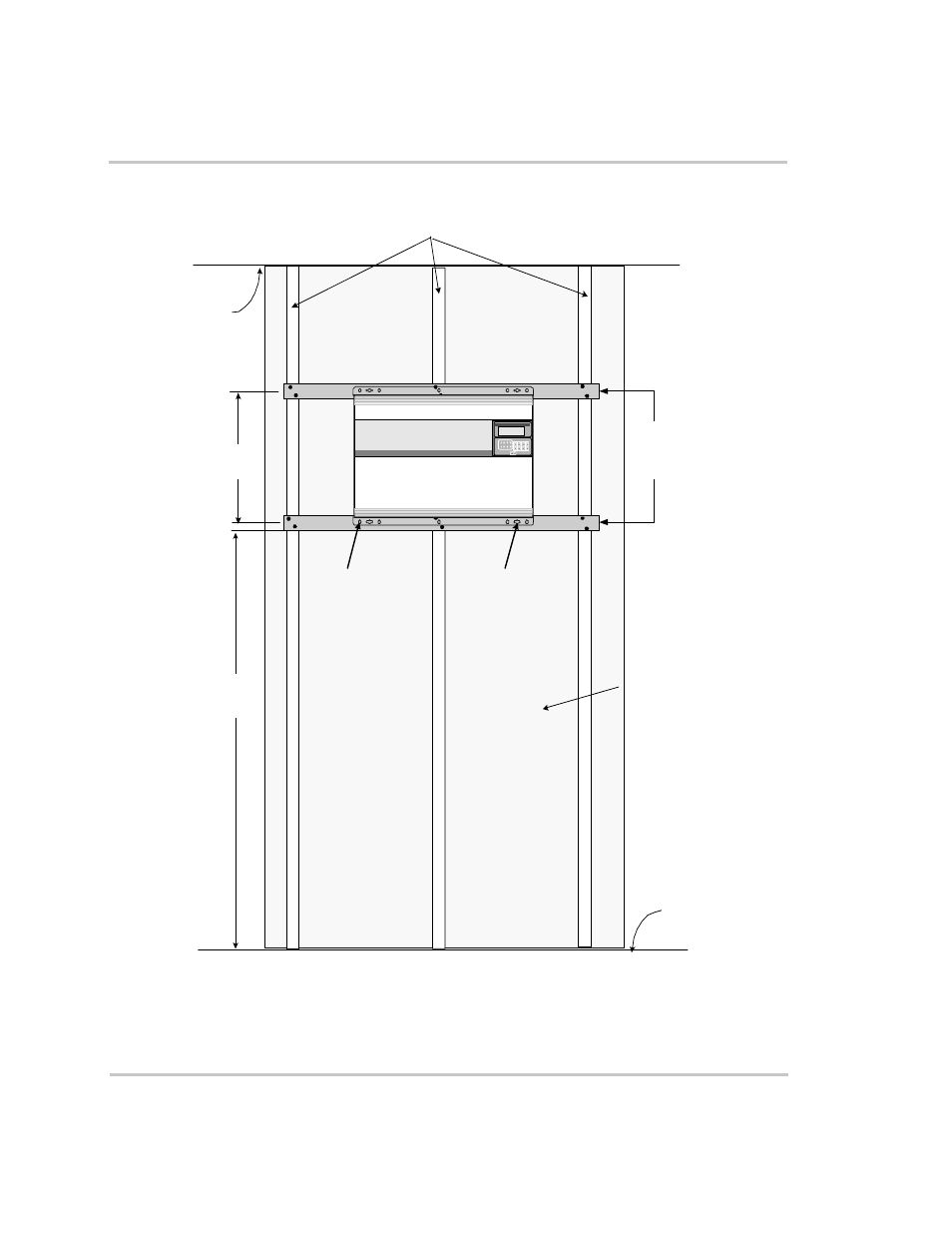

Figure 3-4 Wall-Mounting Method using 2 x 4’s

Wall studs 16 inches

on center

Wallboard

Floor

Ceiling

14–3/8"

c-c

Se t In v erte r
OFF SRCH ON CHG

Sine Wave Plus

Inverter/Charger

Approx.

4–5 ft

2 x 4

mounting

supports

Mounting

Holes (10)

Keyhole Slots

(4)
