Operation
8–14
976-0043-01-02
Accessing the User Menu
To directly access the 01A Inverter User Menu:
◆ Press the red INV button to go directly to 01A Inverter.
To directly access the 02 Generator User Menu:
◆ Press the green GEN button to go directly to 02A Generator.

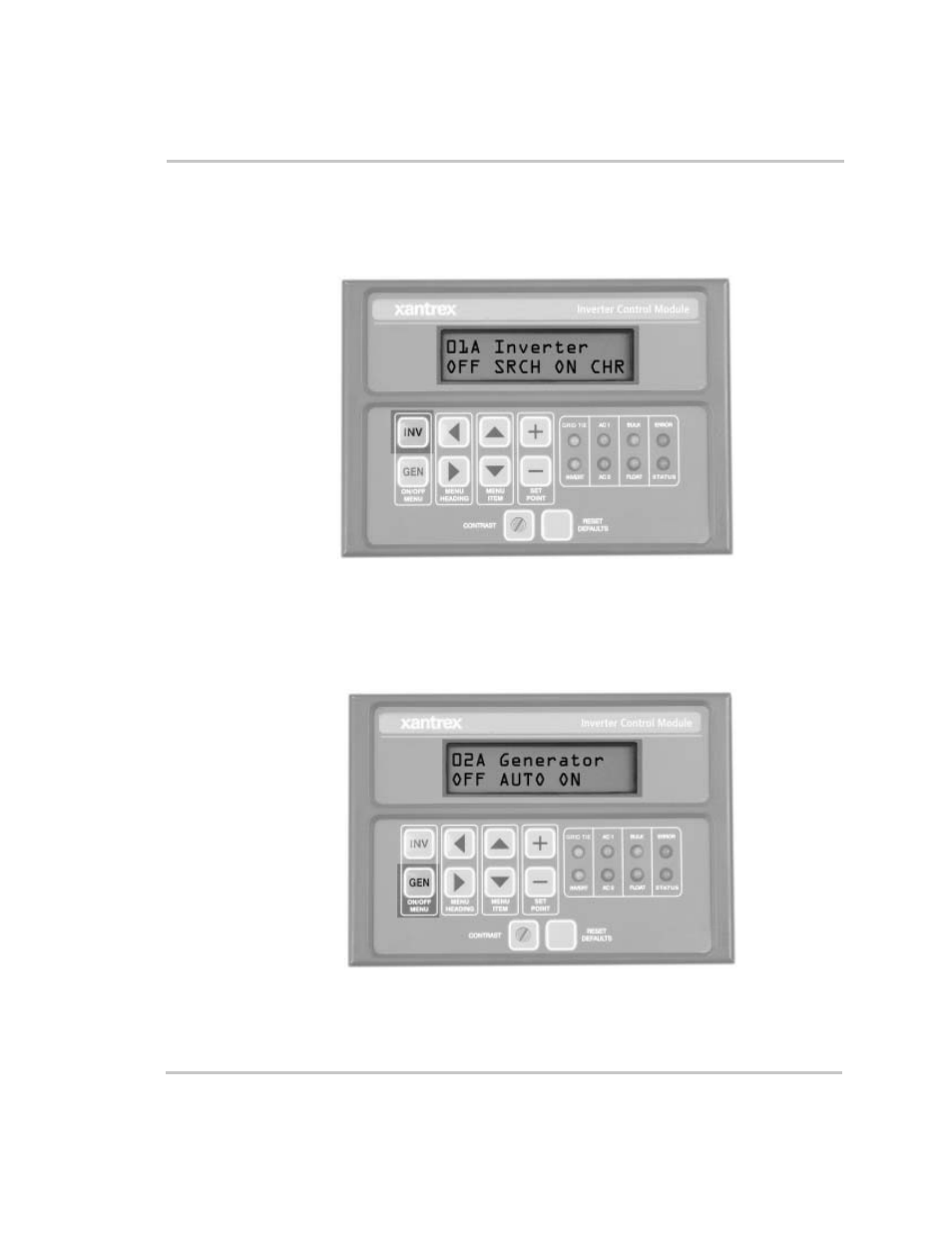

Figure 8-6 Inverter ON/OFF Display
Figure 8-7 Generator ON/OFF Display
