Generator Start Module (GSM)
The GSM is an accessory that enables the inverter to start and stop
generators equipped with auto-start features.
See
“Generator Considerations” on page 2–19
, for information on using
generators and
for additional information
regarding generator types.
Auxiliary Load Module (ALM)
The ALM is an accessory that enables the inverter to start and stop
auxiliary loads such as alarms, water pumps, or ventilation fans.
See
“Auxiliary Load Module (ALM)” on page 3–42
for additional
information regarding connecting the Auxiliary Load Module to the
inverter.

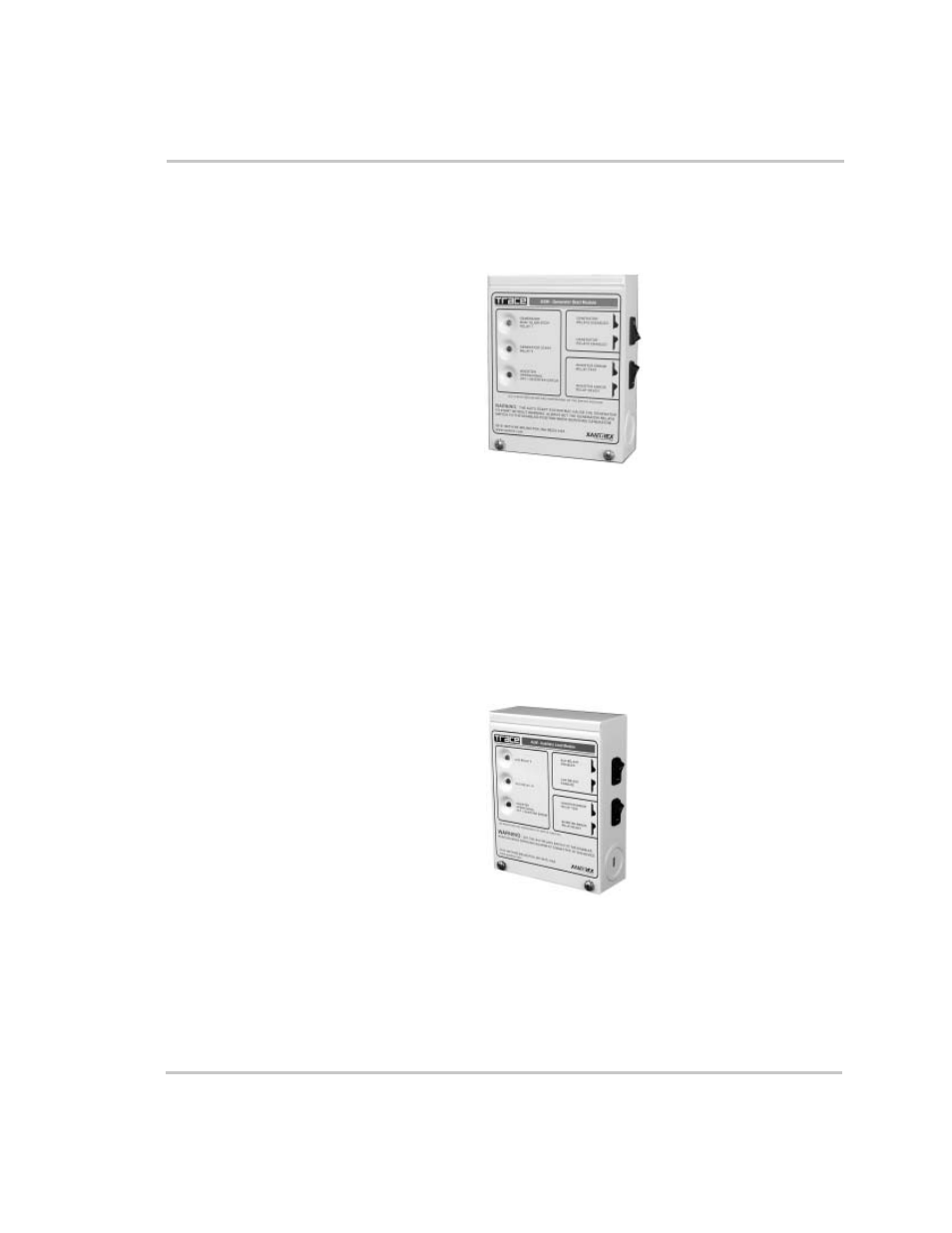

Figure 2-11 Generator Start Module
Figure 2-12 Auxiliary Load Module
