Connect the ground (green or bare) wire, A) from the inverter ac ground bar, B) to the inverter panel ground bar – Xantrex Technology SW Plus 4024 User Manual

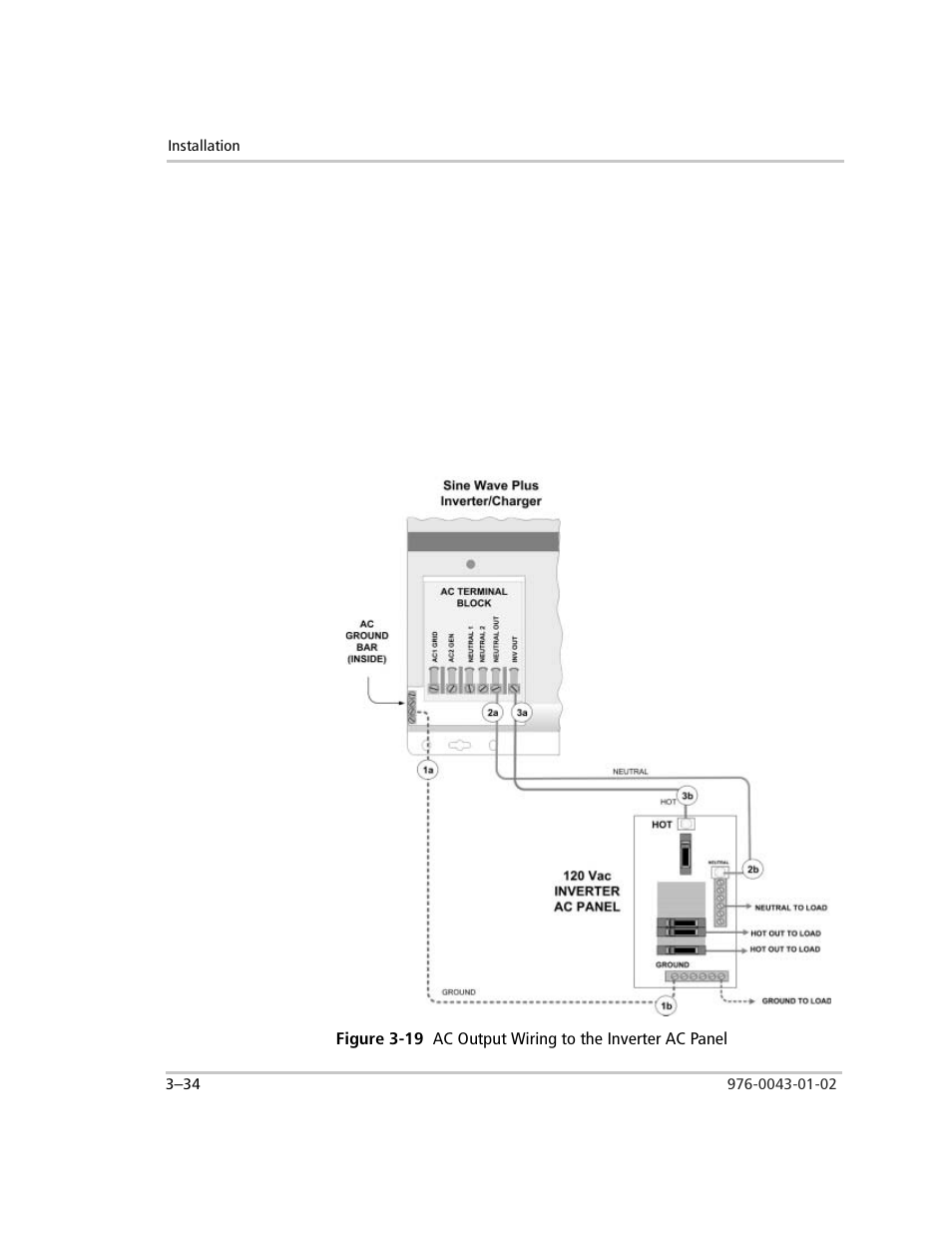

Page 116: Connect the neutral (white) wire, A) from the inverter neutral out terminal, B) to the inverter panel neutral bus, Connect the hot (black) wire, A) from the inverter ac out terminal, Figure 3-19, Ac output wiring to the inverter ac panel –34
