Chapter 8 Access Point Mode
NBG-419N User’s Guide
76
8.4.0.1 Navigation Panel
Use the menu in the navigation panel to configure NBG-419N features in Access
Point mode.
The following screen and table show the features you can configure in Access Point
mode.

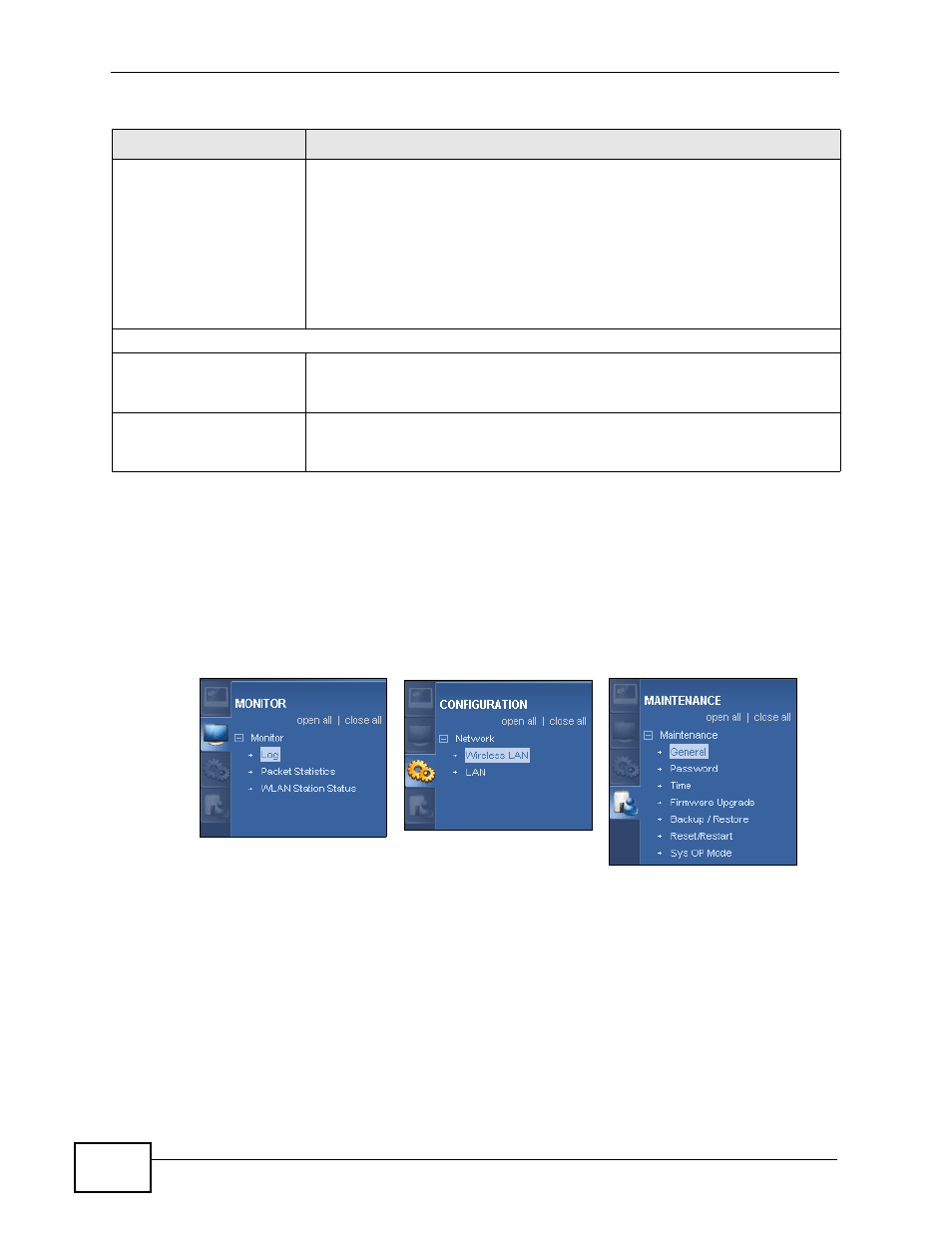

Figure 46 Menu: Access Point Mode
for descriptions of the labels shown in the
Navigation panel.
8.5 LAN Screen
Use this section to configure your LAN settings while in Access Point mode.
Click Network > LAN to see the screen below.
Rate
For the LAN ports, this displays the port speed and duplex setting or N/A
when the line is disconnected.
For the WAN port, it displays the port speed and duplex setting if you’re
using Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to
trigger a call) and Drop (dropping a call) if you're using PPPoE or PPTP
encapsulation. This field displays N/A when the line is disconnected.
For the WLAN, it displays the maximum transmission rate when the WLAN
is enabled and N/A when the WLAN is disabled.
Summary
Packet Statistics
Click Details... to go to the
Monitor >
Packet Statistics screen
). Use this screen to view port status and packet
specific statistics.
WLAN Station Status
Click Details... to go to the
Monitor >
WLAN Station Status screen
). Use this screen to view the wireless stations
that are currently associated to the NBG-419N.
Table 27 Status Screen: Access Point Mode
LABEL
DESCRIPTION
