TMP92CM22
2007-02-16 92CM22-43

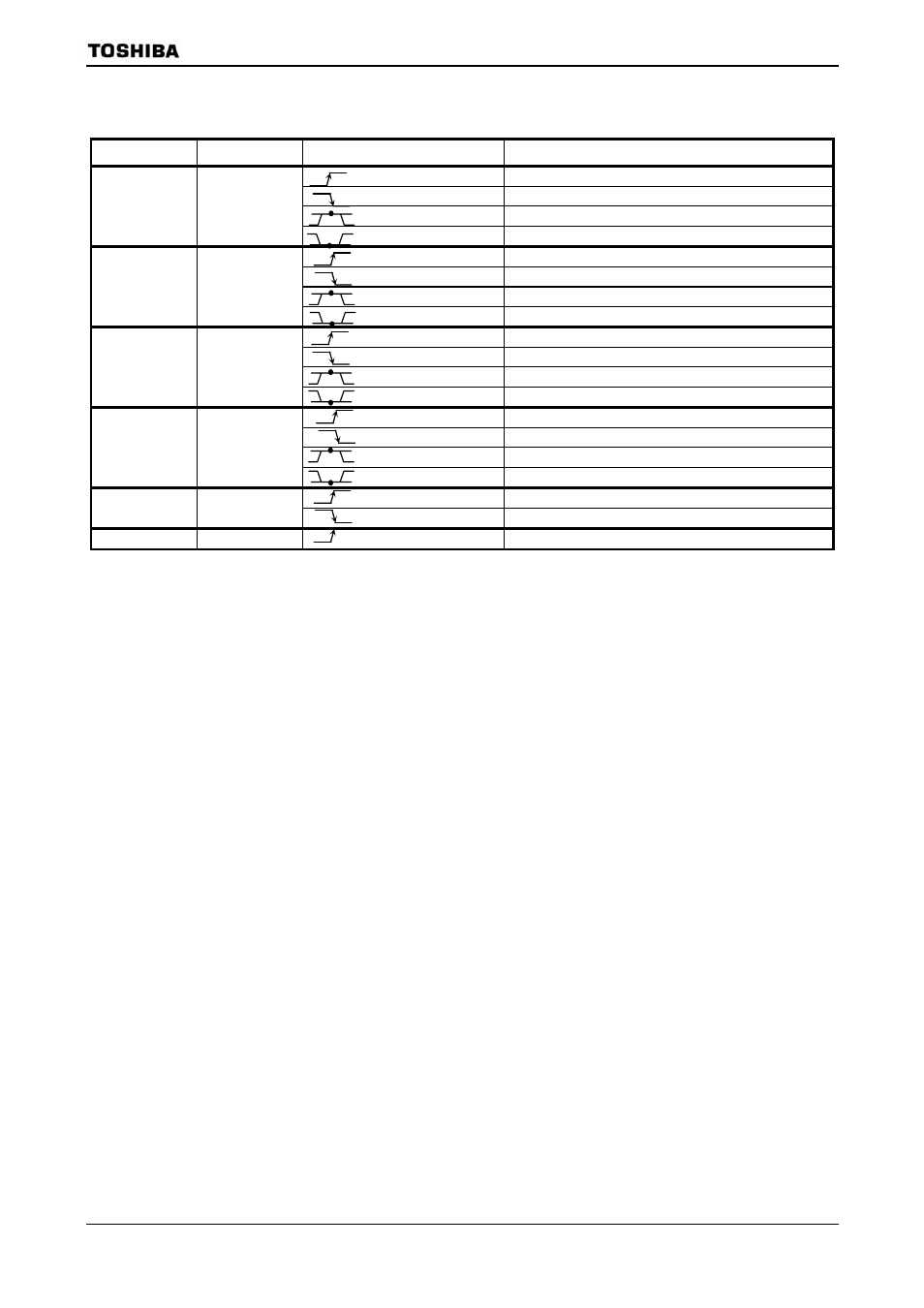

Table 3.4.2 Function Setting of External Interrupt Pin
Interrupt Pin Shared Pin Mode Setting Method
Rising edge IIMC
= 0, INT0EDGE = 0
Falling edge IIMC = 0, INT0EDGE = 1
High level IIMC
= 1, INT0EDGE = 0
INT0 PC3
Low level IIMC = 1, INT0EDGE = 1
Rising edge IIMC2
= 0, INT1EDGE = 0
Falling edge IIMC2 = 0, INT1EDGE = 1
High level IIMC2
= 1, INT1EDGE = 0
INT1 PC1
Low level IIMC2 = 1, INT1EDGE = 1
Rising edge IIMC2
= 0, INT2EDGE = 0
Falling edge IIMC2 = 0, INT2EDGE = 1
High level IIMC2
= 1, INT2EDGE = 0
INT2 PC5
Low level IIMC2 = 1, INT2EDGE = 1
Rising edge IIMC2
= 0, INT3EDGE = 0
Falling edge IIMC2 = 0, INT3EDGE = 1
High level IIMC2
= 1, INT3EDGE = 0
INT3 PC6
Low level IIMC2 = 1, INT3EDGE = 1
Rising edge TB1MOD
= 0, 0 or 0,1 or 1, 0
INT4 PD0
Falling edge TB1MOD = 1, 0
INT5 PD1 Rising edge
−
