TMP92CM22
2007-02-16 92CM22-20
(2) Single drive for high-frequency oscillator
(Purpose)
Not need twin-drive and protect mistake operation by inputted noise to X2 pin
when the external oscillator is used.

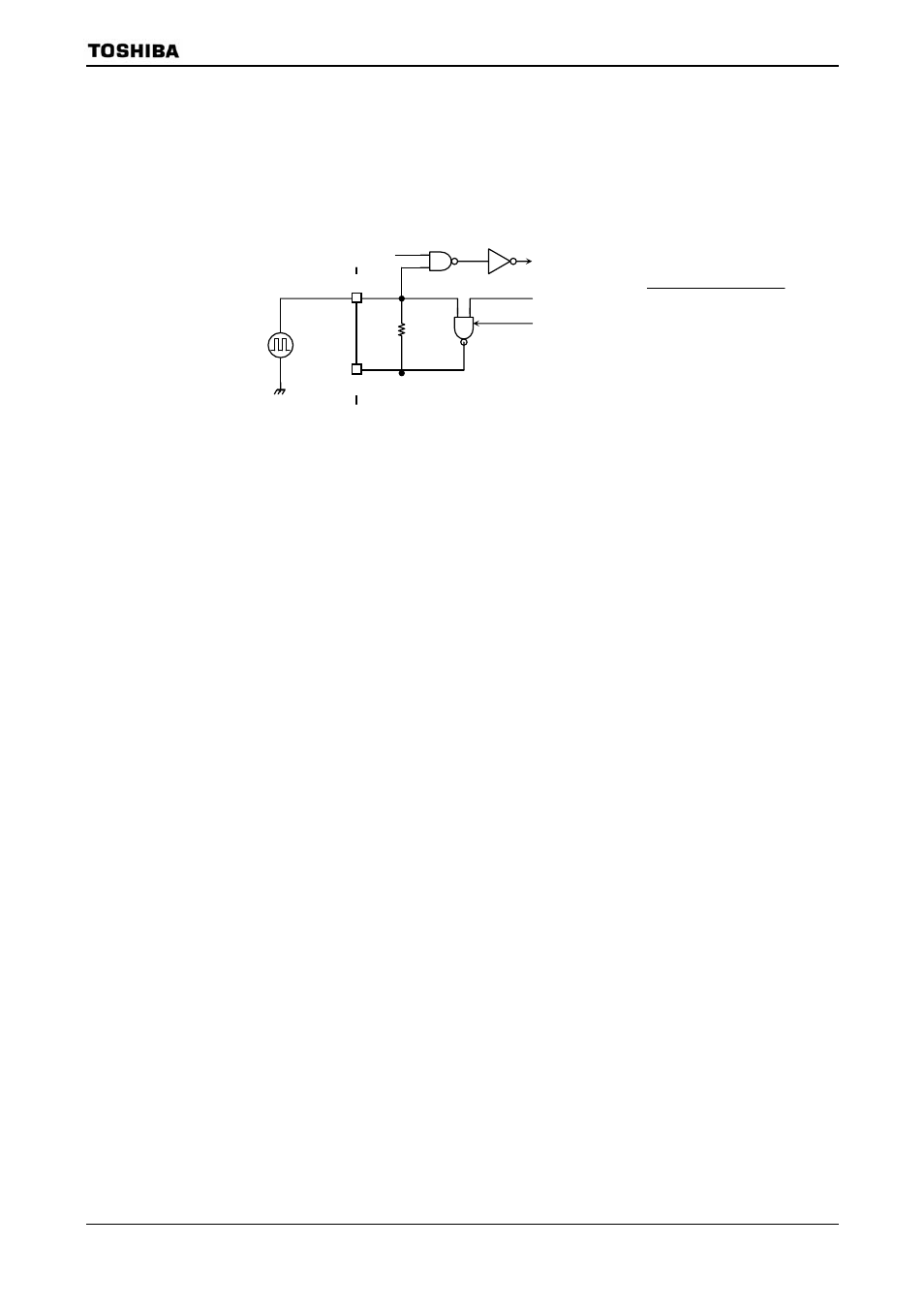

(Block diagram)
(Setting method)
The oscillator is disabled and starts operation as buffer by writing “1” to
EMCCR0 register. X2 pin is always outputted “1”.
By reset, is initialized to “0”.
f
OSCH
Oscillation enable ( > < +
EXTIN EMCCR0 STOP )
EMCCR0
X1 pin
X2 pin
