2. Generating a 50% duty ratio square wave pulse
The state of the timer flip-flop (TA1FF1) is inverted at constant intervals and its
status output via the timer output pin (TA1OUT).
Example: To output a 2.4
μs square wave pulse from the TA1OUT pin at f
C
= 40 MHz,
use the following procedure to make the appropriate register settings. This
example uses TMRA1; however, either TMRA0 or TMRA1 may be used.
MSB LSB
7 6 5 4 3 2 1 0
TA01RUN
← − X X X − − 0 −
Stop TMRA1 and clear it to 0.
TA01MOD
← 0 0 X X 0
1
− −
Select 8-bit timer mode and select
φT1 (=(16/fc)s at f
C
=
40MHz) as the input clock.
TA1REG ← 0 0 0 0 0 0 1 1 Set the timer register to 2.4 μs ÷ φT1 ÷ 2 = 3.
TA1FFCR ← X X X X 1 0 1 1 Clear TA1FF to 0 and set it to invert on the match detect
signal from TMRA1.
PCCR
← X − − X − X 1 −
PCFC ← X − − X − X 1 −
Set PC1 to function as the TA1OUT pin.
TA01RUN ← − X X X − 1 1 − Start TMRA1 counting.
X
: Don’t care, − : No change

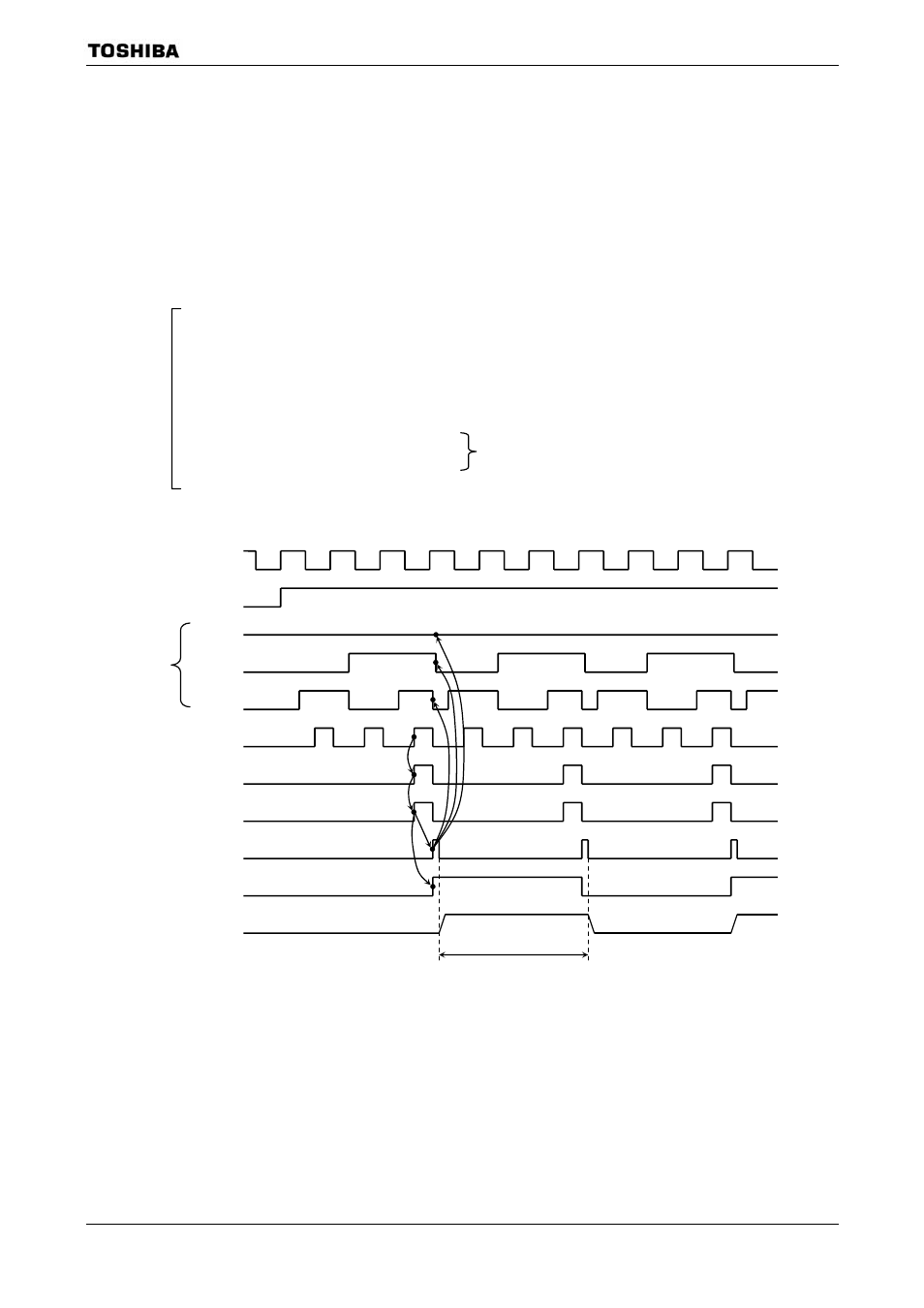

Figure 3.7.10 Square Wave Output Timing Chart (50% duty)
1.2
μs at f
C
= 40 MHz
0 1 2 3 0 1 2 3 0 1 2 3 0
φT1
TA01RUN
Bit7 to 2
Bit1
Bit0
INTTA1
TA1FF
TA1OUT
Up counter
Comparator
timing
Comparator output
(Match detect)
Up counter clear
