68
Enjoying Music and Video with the VIMA
The image from your video camera can be shown on an external display or a television
connected to the VIMA. In the large external screen, you show yourself performing in real
time, or show a video you’ve taken of your family for everyone to enjoy.

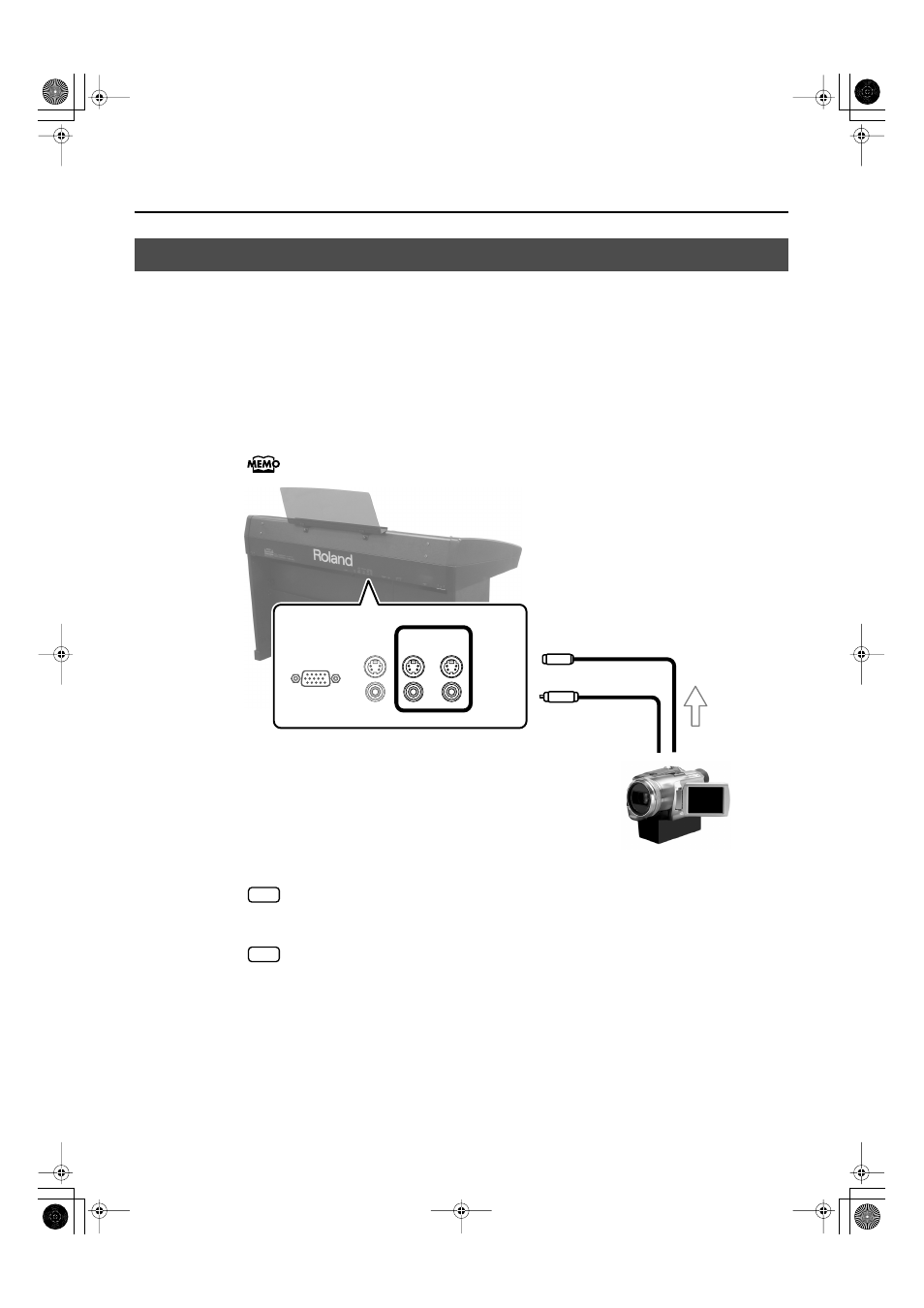

1. Connect your video camera.
You can connect your video camera to the CAM 1 connector or CAM 2 connector located on the
VIMA’s rear bottom. The VIMA provides both VIDEO (composite video) and S-VIDEO (S-video)
jacks. Use the connector that matches the cable of your video camera.
For details, refer to the owner’s manual of your video camera.
fig.ConnectDigiVideo-1.eps
Video camera cables can differ depending on the model. Check the shape of the
connector on the VIMA and on your video camera, and make sure you have the
correct type of cable when making connections.
Make sure that the video camera you’re connecting matches the television format
selected on the VIMA.
For details on setting the television format of your video camera, refer to the owner’s
manual for your video camera. For details on setting the VIMA’s television format, refer
to “Specifying the Television Format (NTSC/PAL)” (p. 120).
Performing with a Background Image from a Video Camera
VIDEO OUTPUT VIDEO INPUT
S-VIDEO
VIDEO
CAM 1 CAM 2 ANALOG
RGB OUT
or
VIDEO jack
S-VIDEO connecor
Yellow Visual
NOTE
NOTE
