31
Before You Play

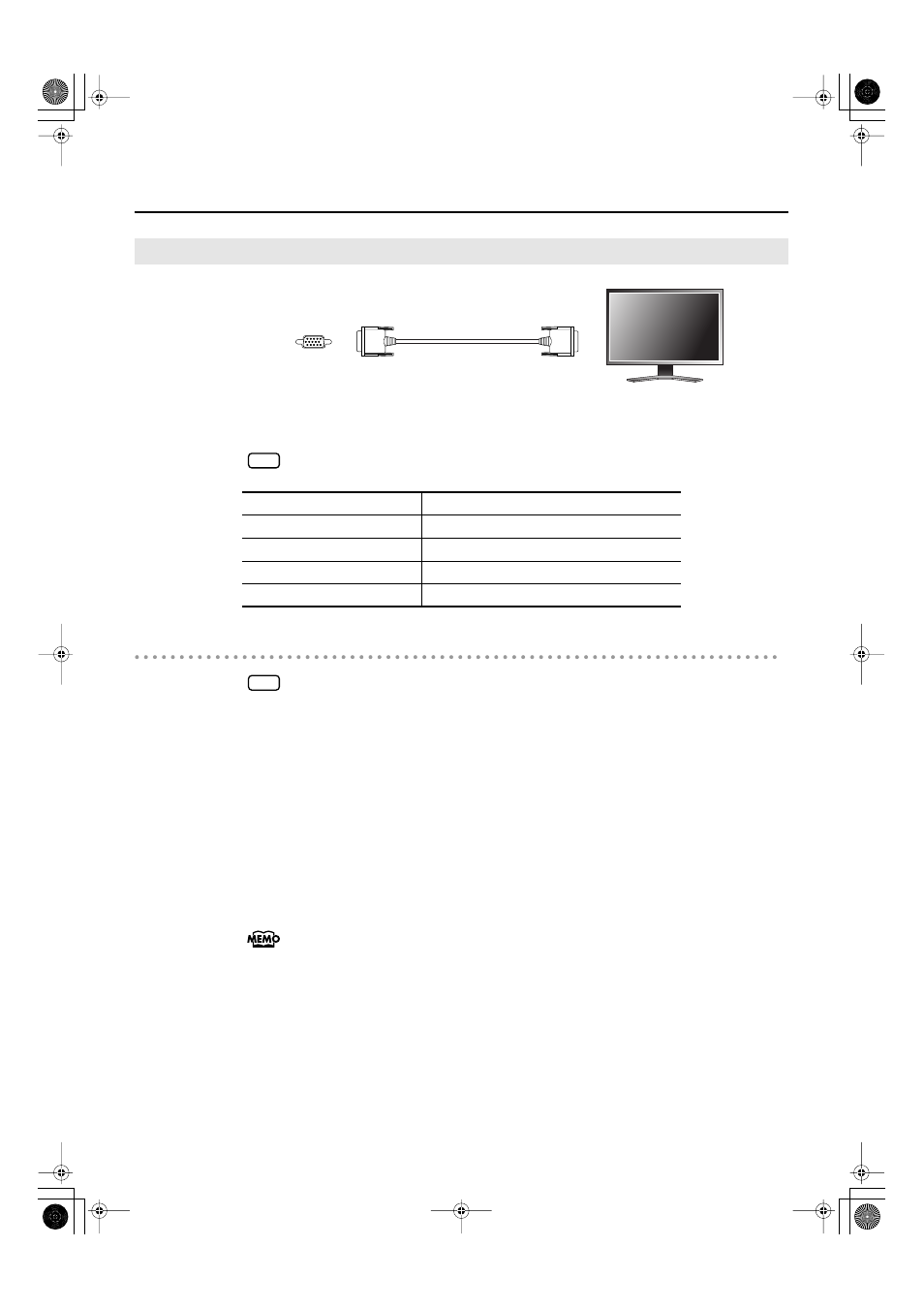

fig.ConnectDisplay.eps
Types of display that can be connected
In general, you can connect any display that is sold as a “multiscan monitor.” However,
to be certain, please check the following specifications before you connect your display.
Making Connections
Before you make connections to other devices, you must turn down the volume of all
devices and turn off the power to prevent malfunctions or damage to your speakers.
1. Switch off the VIMA and the display you’ll be connecting (p. 25).
2. Connect the VIMA to your display.
Use a commercially available monitor cable to connect the VIMA’s ANALOG RGB OUTPUT
connector to the analog RGB connector of your display.
3. Switch on the VIMA (p. 24).
4. Switch on the connected display.
For details on how to use your external display, refer to the owner’s manual for your
display.
Connecting an External Display
Resolution 800 x 480 pixels or more
Horizontal scan rate 31.5 kHz
Vertical scan rate 60 Hz
Connector Three-row 15-pin D-sub type
Signal Analog
External Display
ANALOG RGB
OUTPUT Connecter
Rear of the VIMA’s bottom panel
Monitor Cable
(Commercially available)
NOTE
NOTE
