Setting up your server 3-7 – NEC Express 5800/230Eh User Manual
Page 59
Setting Up Your Server 3-7

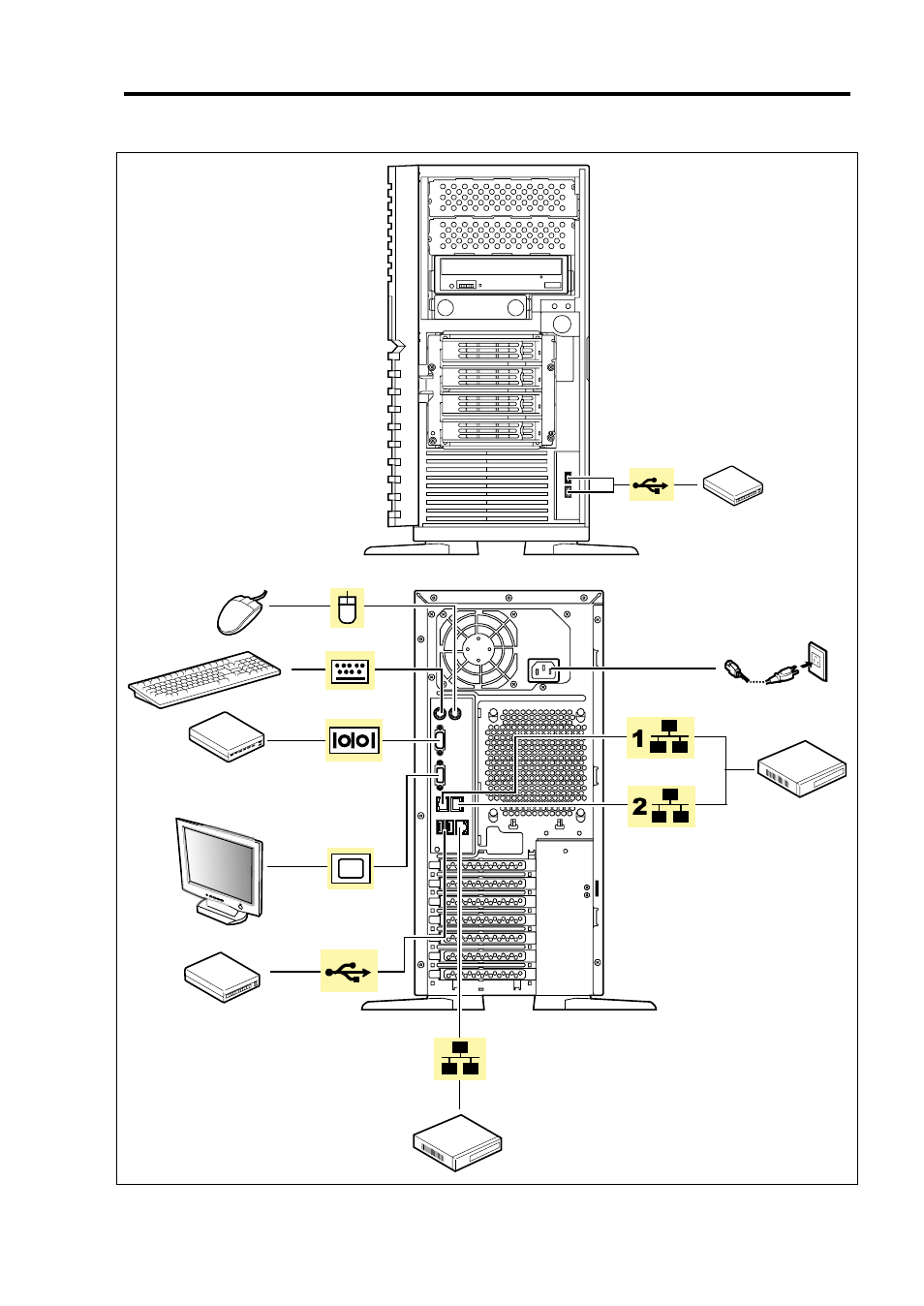

Device with the serial
interface (e.g., modem)*
Keyboard
Mouse
Display unit
Hub
(multiport repeater)
Device with the USB interface
(e.g., terminal adapter)
Finally connect the
power cord to the
receptacle.
Hub
(multiport repeater)
Management LAN port
(100BASE-TX/10BASE-T)
LAN ports
(1000BASE-T/
100BASE-TX/
10BASE-T)
Device with the USB interface
(e.g., terminal adapter)
FRONT
REAR
