Installation of sata disks, Internal cabling diagrams 10-3 – NEC Express 5800/230Eh User Manual
Page 269

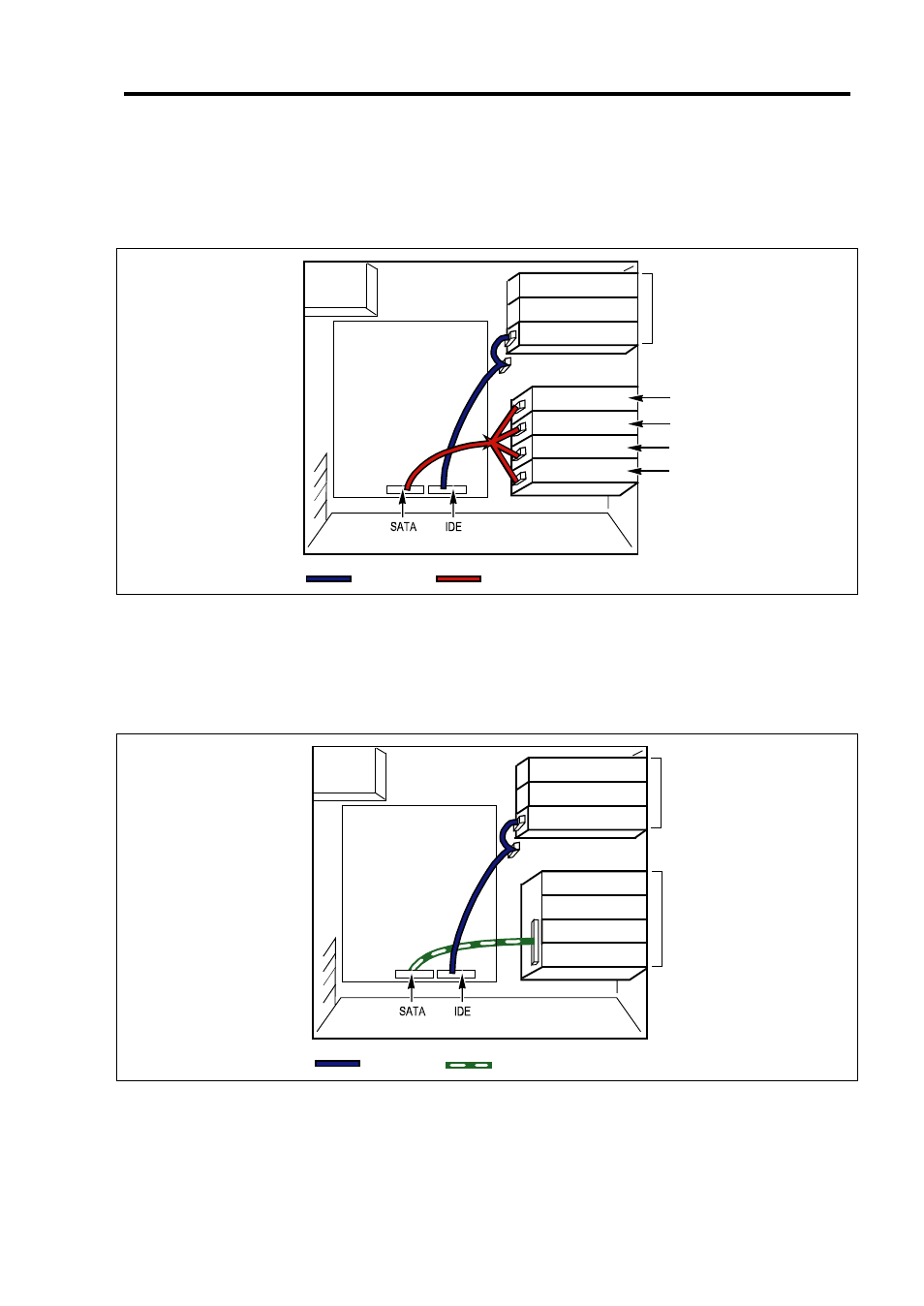

Internal Cabling Diagrams 10-3
Installation of SATA Disks
If the serial ATA (SATA) hard disk drives are added, connect the cables as shown in the figure below.
Fill the drive bay with the hard disk drives from the bottom to top bay.
Installation of N8154-09 Additional HDD Cage in SATA Model Server
If the N8154-09 Additional HDD Cage is added, connect the cables as shown in the figure below.
Fill the drive bay with the hard disk drives from the bottom to top bay.
5.25-inch device bay
Fourth hard disk drive
Third hard disk drive
Second hard disk drive
First hard disk drive
DVD-ROM drive
Power
supply
Mother board
IDE cable
SATA cable
5.25-inch device bay
DVD-ROM drive
Power
supply
Mother board
IDE cable
K410-148 (00) cable
Fourth
hard disk drive
HDD cage
Third
hard disk drive
Second
hard disk drive
First
hard disk drive
