NEC Express 5800/230Eh User Manual
Page 259
Upgrading Your Server 9-53
9.

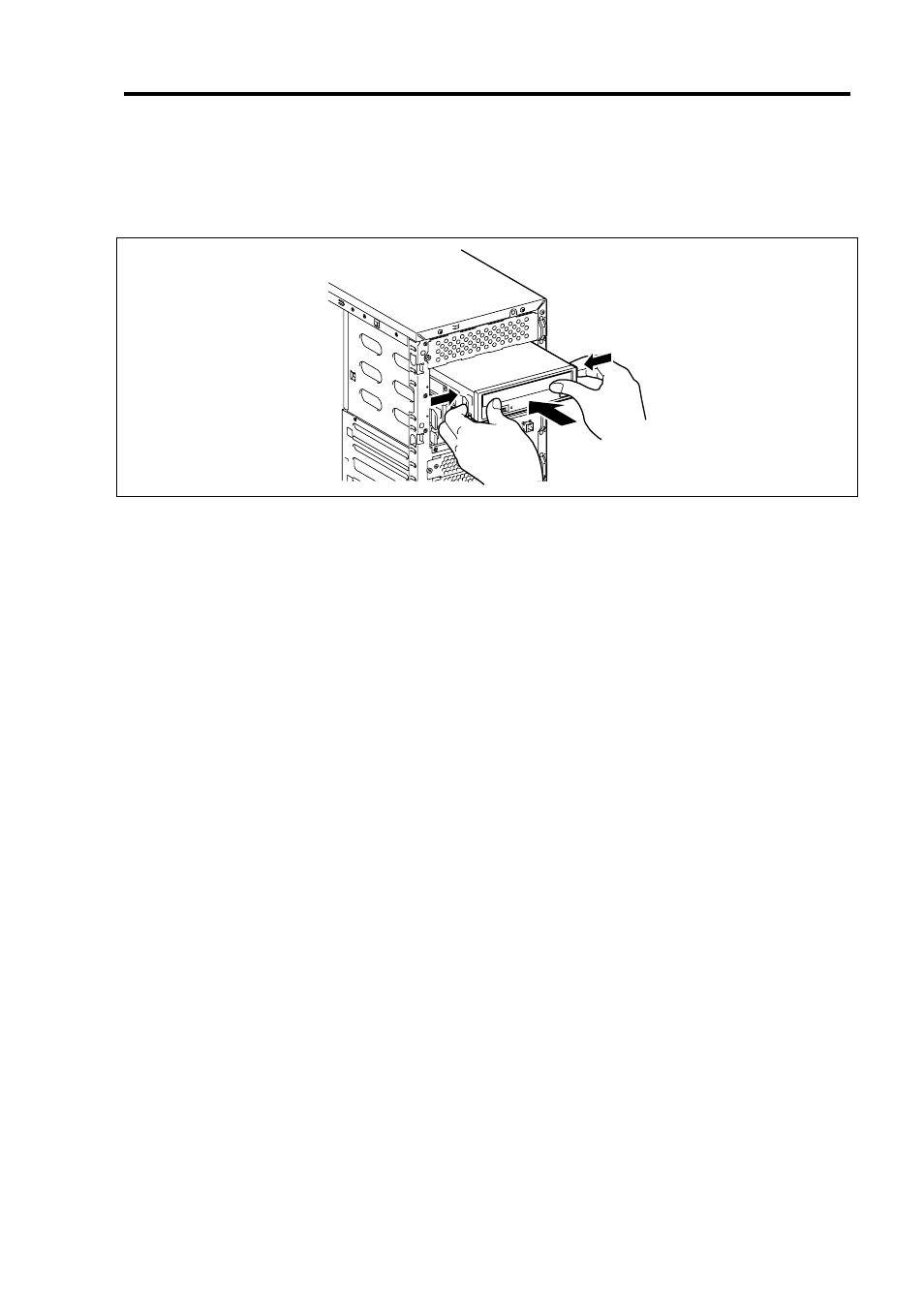

Slowly insert the DVD-ROM drive into additional slot 1 with the release tabs on both
sides of the drive.
Push the drive until a click occurs to lock it.
10.
Connect the interface and power cables to the 5.25-inch device installed from one side of
the server.
See Chapter 10 for details.
11.
Assemble the server.
12.
Set the parameters including the transfer rate using the BIOS utility of the IDE controller.
Refer to the manual provided with the IDE controller for details.
13.
Install the device driver for the installed device.
Refer to the manual provided with the device for details.
Removal
The file device can be removed in the reverse order of the installation. If the device is removed but
not installed again, install the dummy cover.
