9-40 Upgrading Your Server

3.

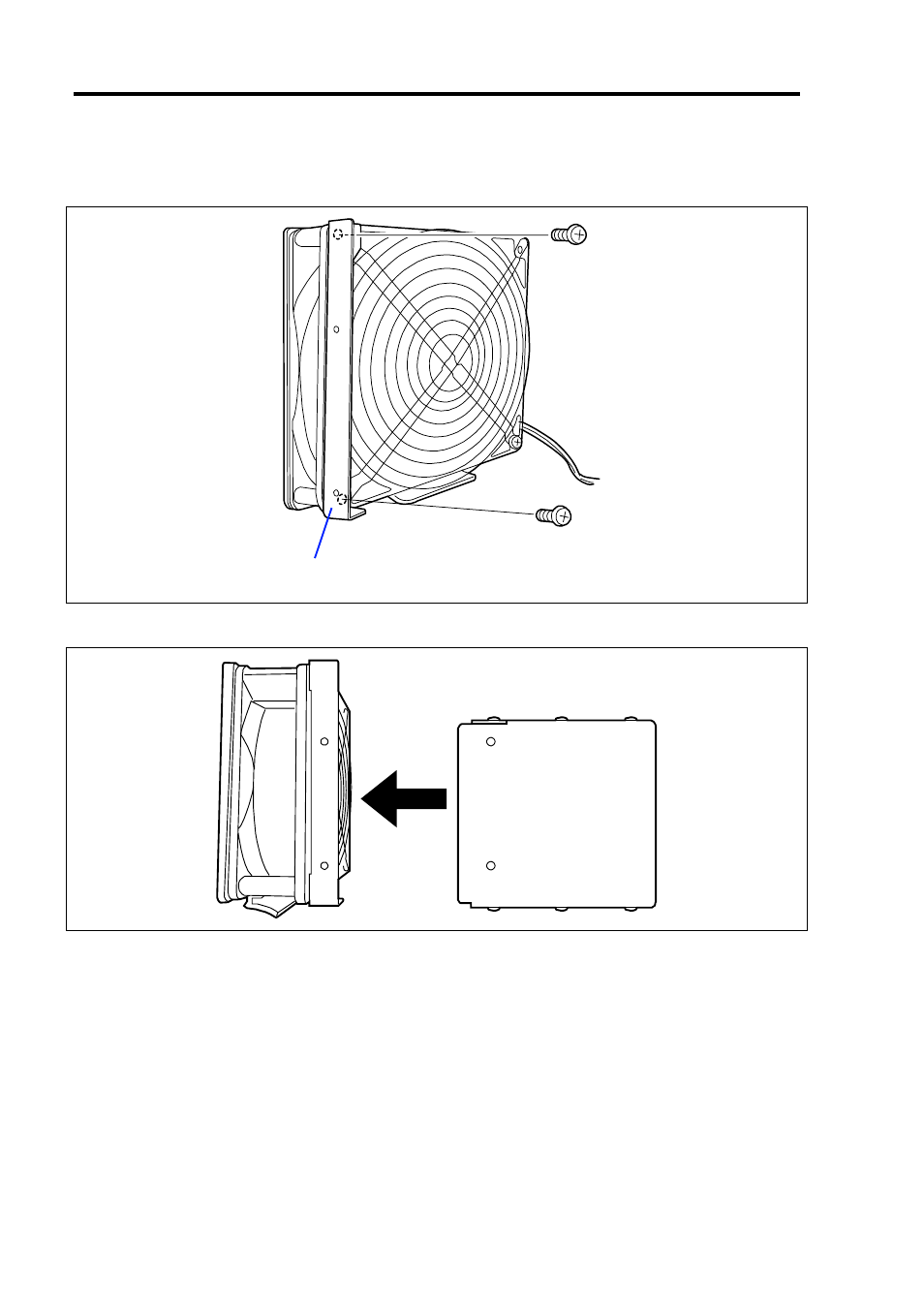

Fix the duct support bracket to the fan guard with two screws (a screw removed in Step 2
and a screw for fixing the fan guard coming with the additional DIMM).

4.

Fix the duct to the duct support bracket with metric screws coming with the DIMM.

Duct support bracket
