Internal Cabling Diagrams 10-7
To build a disk array, at least two hard disk drives are required. Use the SATA2 cables provided with
the disk array controller (SATA2) for the connection. Remove the cables connected to the hard disk
drives and save them for future use.
IMPORTANT: Use hard disk drives with the same capacity and
performance.

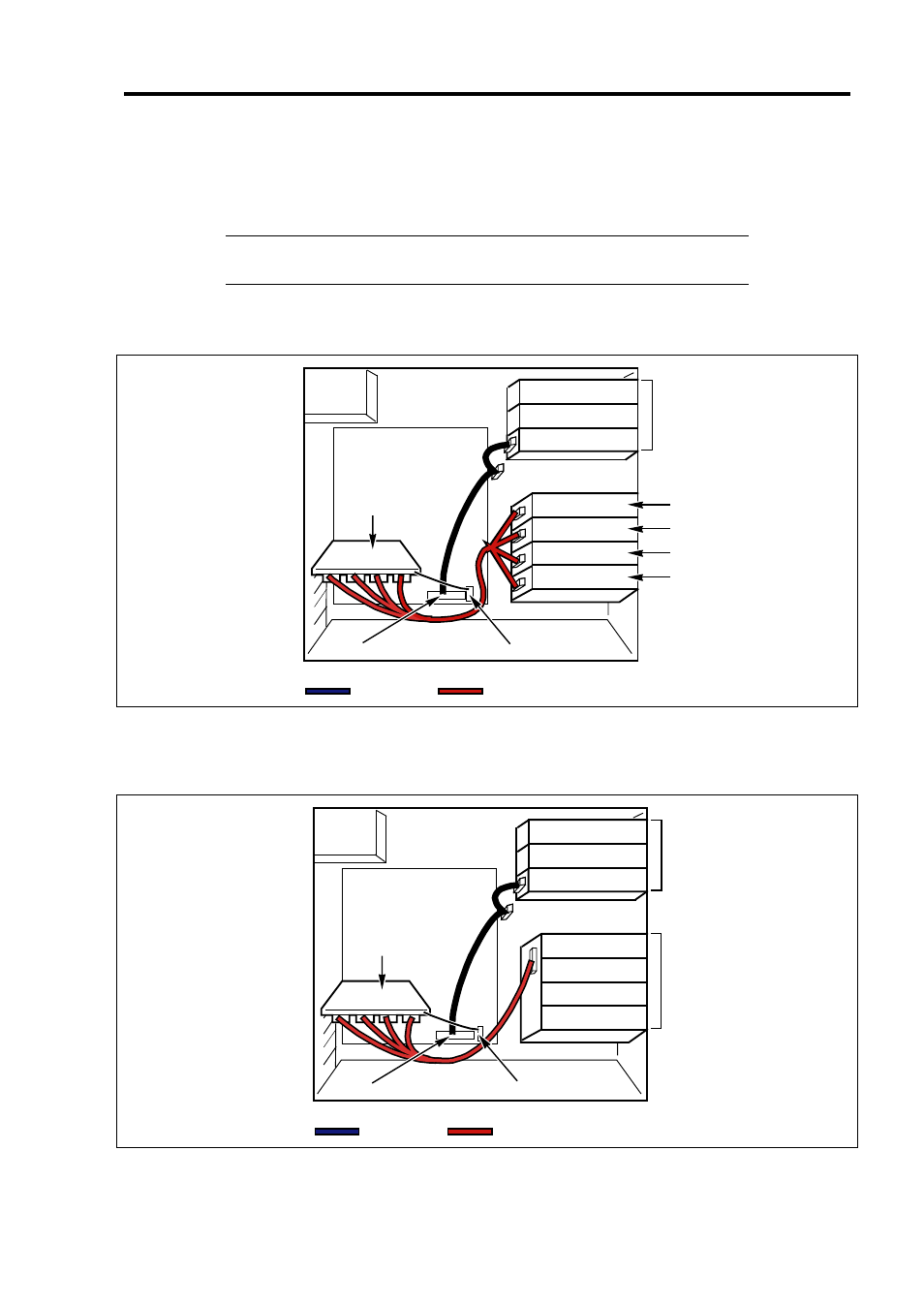

Standard Configuration
When Using Additional HDD Cage
5.25-inch device bay
Fourth hard disk drive
Third hard disk drive
DVD-ROM drive
Power
supply
Mother board
Disk array
controller
(SATA2)
PCI #1, #3 or #4)
IDE
IDE cable SATA2 cable
Second hard disk drive
First hard disk drive
LED connector
5.25-inch device bay
Fourth
hard disk drive
Third
hard disk drive
Second
hard disk drive
First
hard disk drive
HDD cage (option)
DVD-ROM drive
Power
supply
Mother board
Disk array
controller
(SATA2)
PCI #1, #3 or #4)
IDE
IDE cable SATA2 cable
LED connector
