NEC Express 5800/230Eh User Manual
Page 218

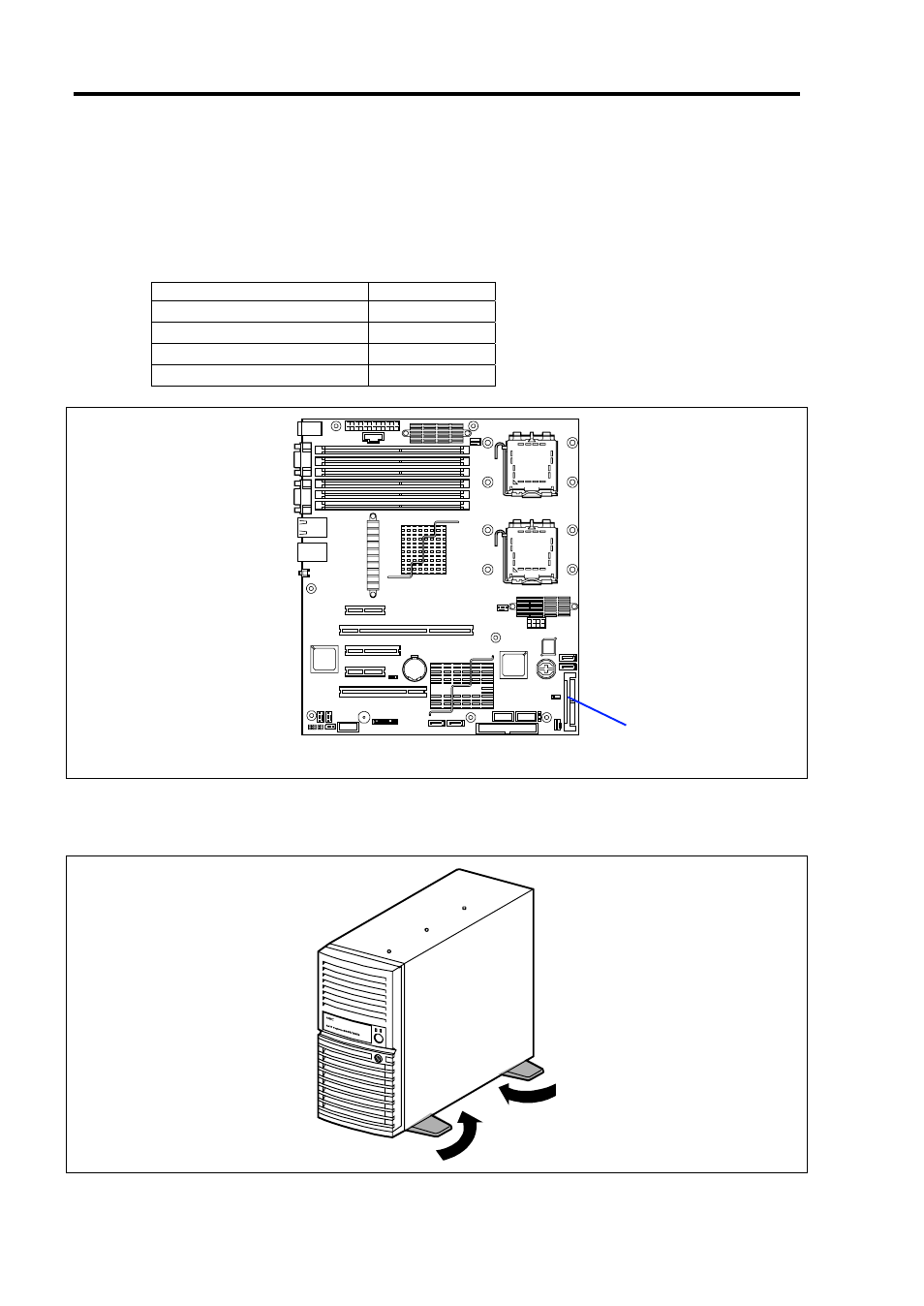

9-12 Upgrading Your Server
Installation
Follow the procedure as described below to install 3.5-inch hard disk drives.
1.
Configure the operation mode of hard disk drives according to the manual supplied with
the hard disk drive.
Hard Disk Drive
Bay to Install
First hard disk drive
Bottom
Second hard disk drive
Lower middle
Third hard disk drive
Upper middle
Fourth hard disk drive
Top
2.
See the section "Preparing for Installation and Removal" described earlier to prepare.
3.
Fold the four stabilizers at the bottom of the server toward inside.
SAS connector
Mother board
