Upgrading Your Server 9-33
DIMM
The DIMM (Dual Inline Memory Module) is installed in a DIMM socket on the mother board
installed in the server.
Up to 24GB (4GB × 6) of memory can be added.
IMPORTANT:
„
The DIMM is easily affected by static electricity. Handle the DIMM
after making your body contact with a metallic frame section of the
server to discharge the static electricity on your body. Do not make
bare hands contact with terminals and components on the DIMM. In
addition, do not put the DIMM on a desk directly. See "Static
Precautions" for details of the static electricity.
„ Do not use any DIMM not approved by NEC. If an unapproved
third party's DIMM is installed in the server, not only the DIMM but
also the server itself may be defected. You will be charged by any
repair of a malfunction or defect caused by such a device within the
warranty period.
The mother board in your server supports the dual channel memory configuration.
The dual channel memory configuration increases data transfer rate.

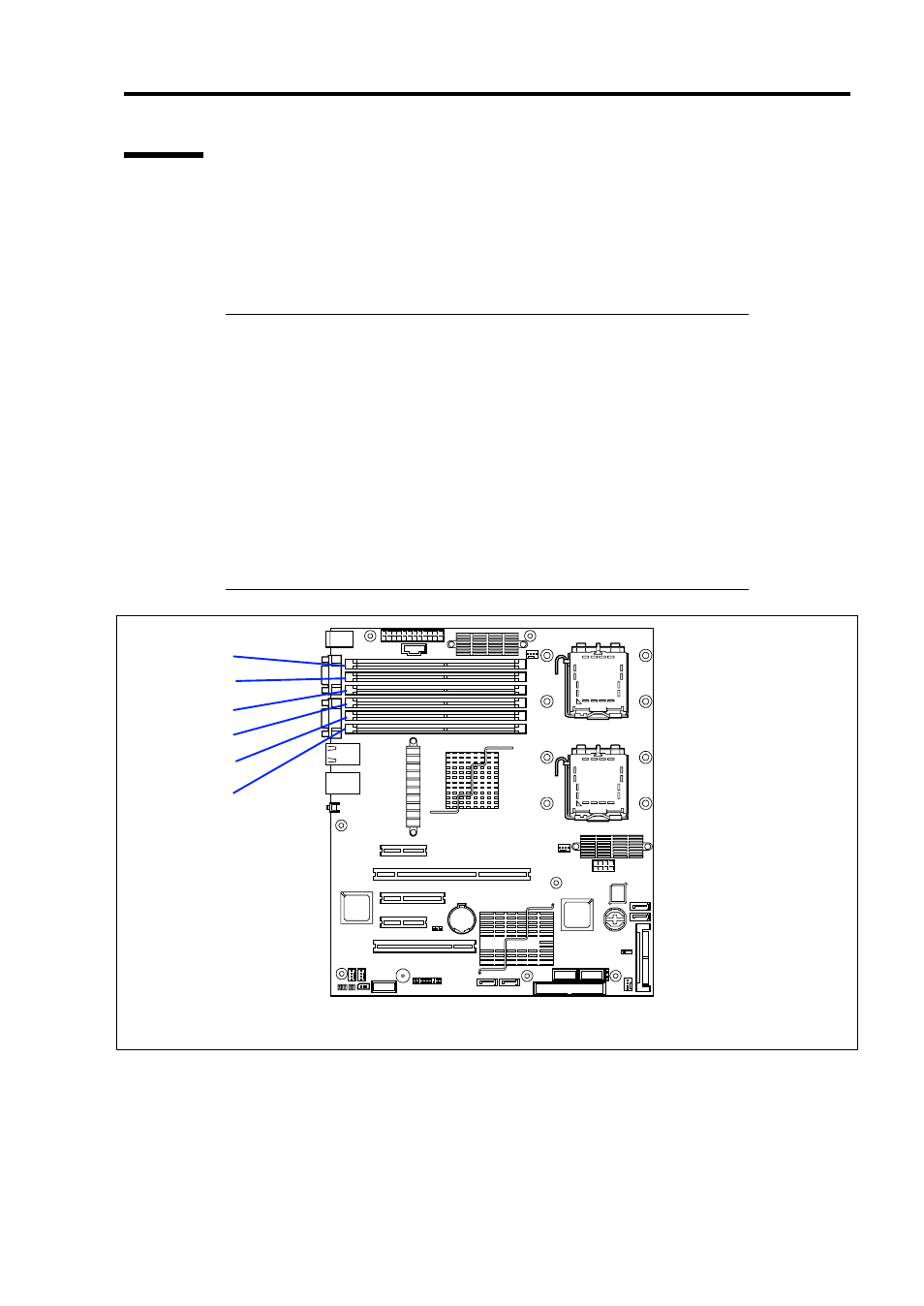

Mother board
DIMM #B-3
DIMM #B-2
DIMM #B-1
DIMM #A-3
DIMM #A-2
DIMM #A-1
FRONT REAR
