The V24 and V26 Parameter Module Rack
The CMS and V24 and V26 Patient Monitors 1-35
The
CM
S
a
n
d
V
2
4
a
nd
V
2
6
Pa
ti
e
n
t M
o
n
it
o
rs

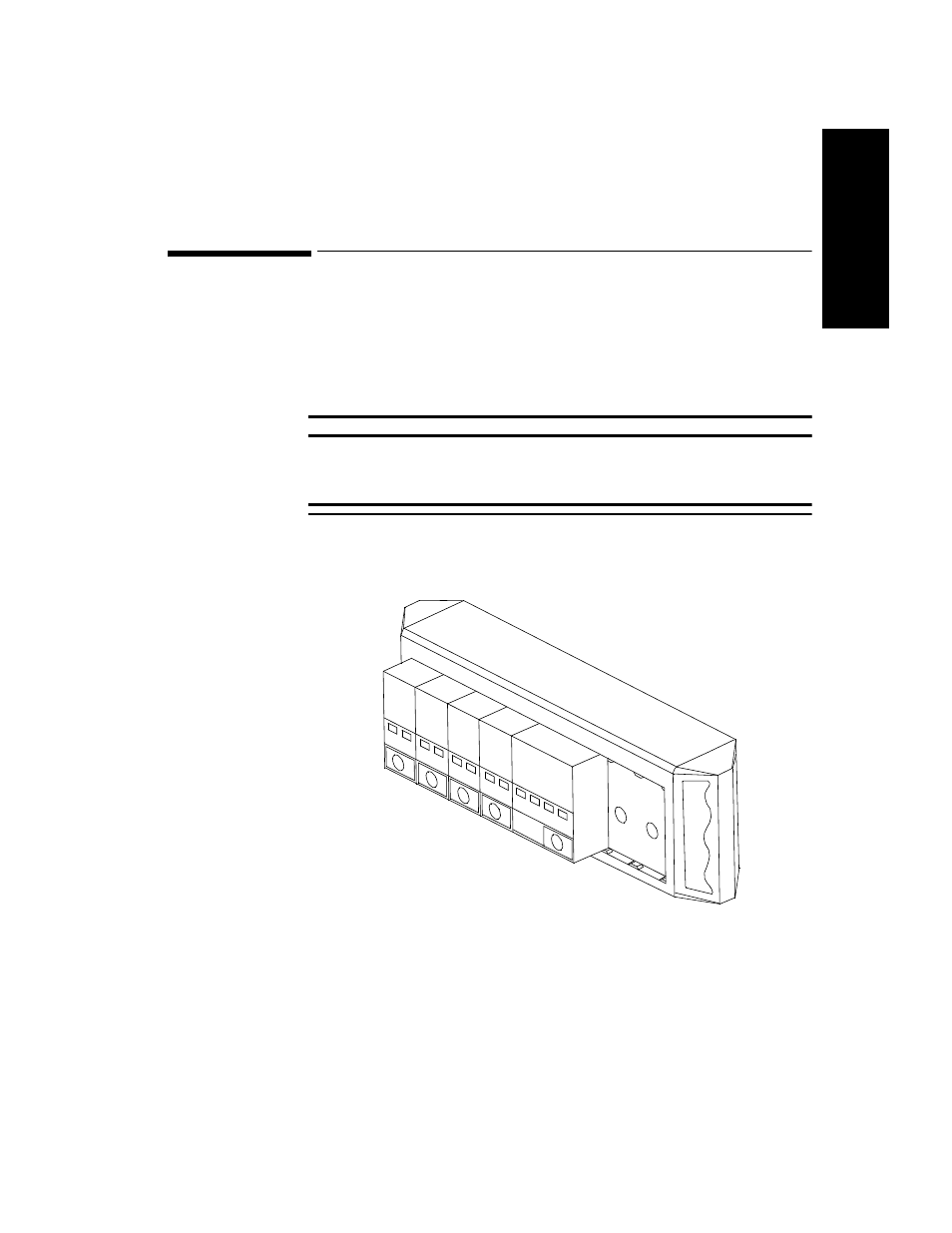

The V24 and V26 Parameter Module Rack
The V24 and V26 parameter module rack is attached to the display module
by a cable to a connector on the left side of the display module. In
addition, the V24CT and V26CT allow you to dock a 6-slot rack directly to
the mainframe.
Warning Warning
Do not connect a second rack by a cable when using the V24CT or
V26CT with a 6 wide rack docked to the mainframe. Docking a
second rack by a cable may disrupt module communication.
The signals from the parameters being monitored are transmitted to the
internal computer, where they are processed and then displayed on the
screen as waveforms and numerical readouts.
