Main Screen

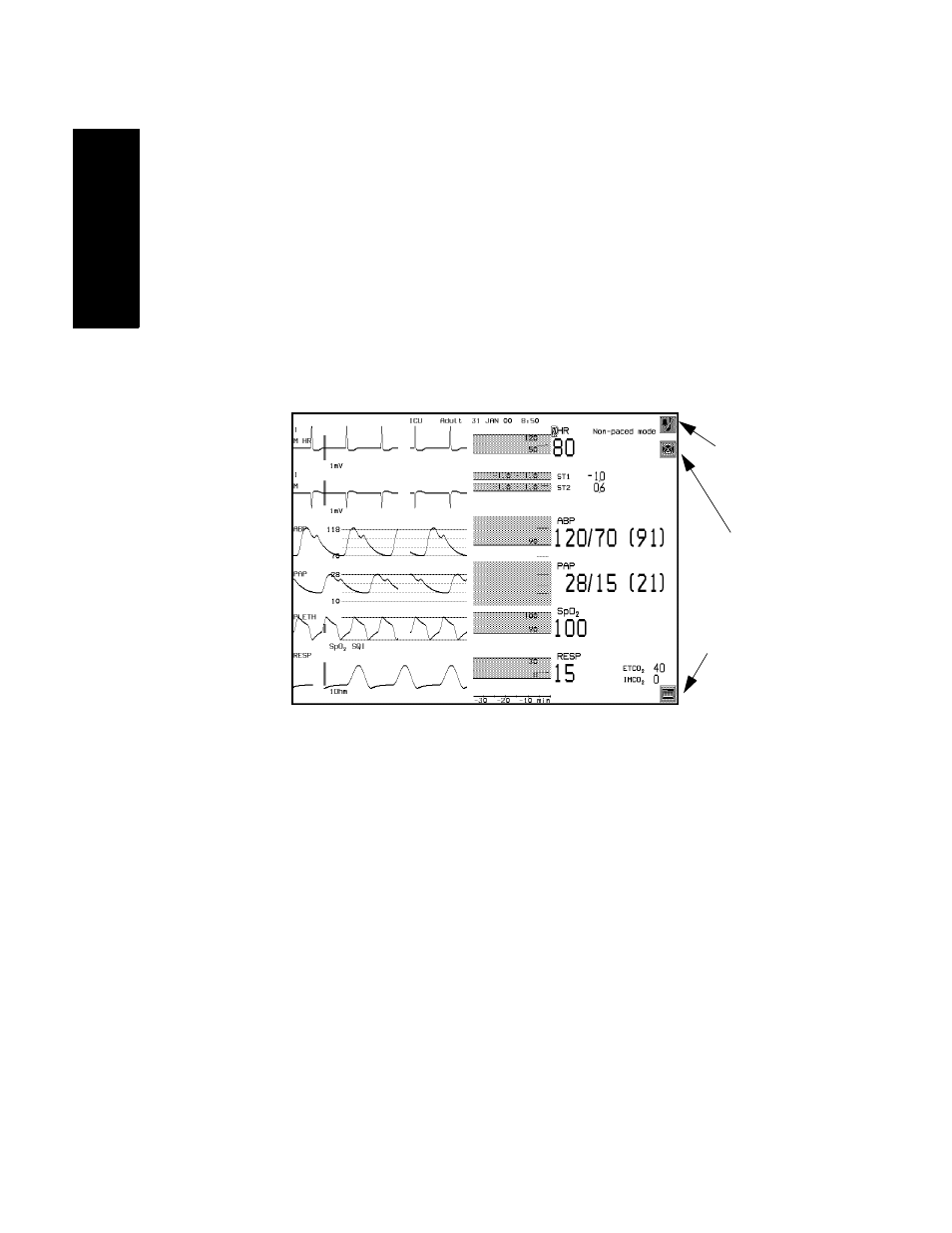

The layout of the main screen is basically the same as with other CMS,
V24 and V26 Patient Monitoring Systems, with the only exception that it
contains three additional buttons: the Silence/Reset button, the Suspend
button (both in the upper right corner of the display) and the Control
Panel button (in the lower right corner of the display).These buttons are
touch-responsive and can be used alternatively to the hardkeys of the
control panel or the handheld keypad.
Note—
Do not remove the keypad from systems with touch or mouse/
trackball operation as it is still required to perform certain tasks.
Control
Panel Task
Window
The Control Panel Task Window contains most of the hardkeys found on
the control panel of non-touch systems. See “Hardkey Functions” on
page 1-12 for detailed descriptions of these keys. You can access the
Control Panel Task Window by touching the Control Panel symbol in the
lower right corner of the main screen display.
Silence/
Reset
Suspend
Control
Panel
