Parameter Modules
The parameter modules have one or more hardkeys on the front. The
key labeled with the parameter name is called the Setup key, which gets
you directly into the setup screen for that parameter. When you press
the Setup key on the front of the module, and get into the parameter
setup window or task window, a light appears above the key.
The connector socket on the front of each module is the same color as
the corresponding connector plug on the transducer or patient cable.
Note— If a “T” is present on the front of a module, certain parameter
settings may be transferred with that module when it is moved from one
rack to another. This behavior is dependent on a setting made in a
M1001B
12
PIN
ECG
ECG
T

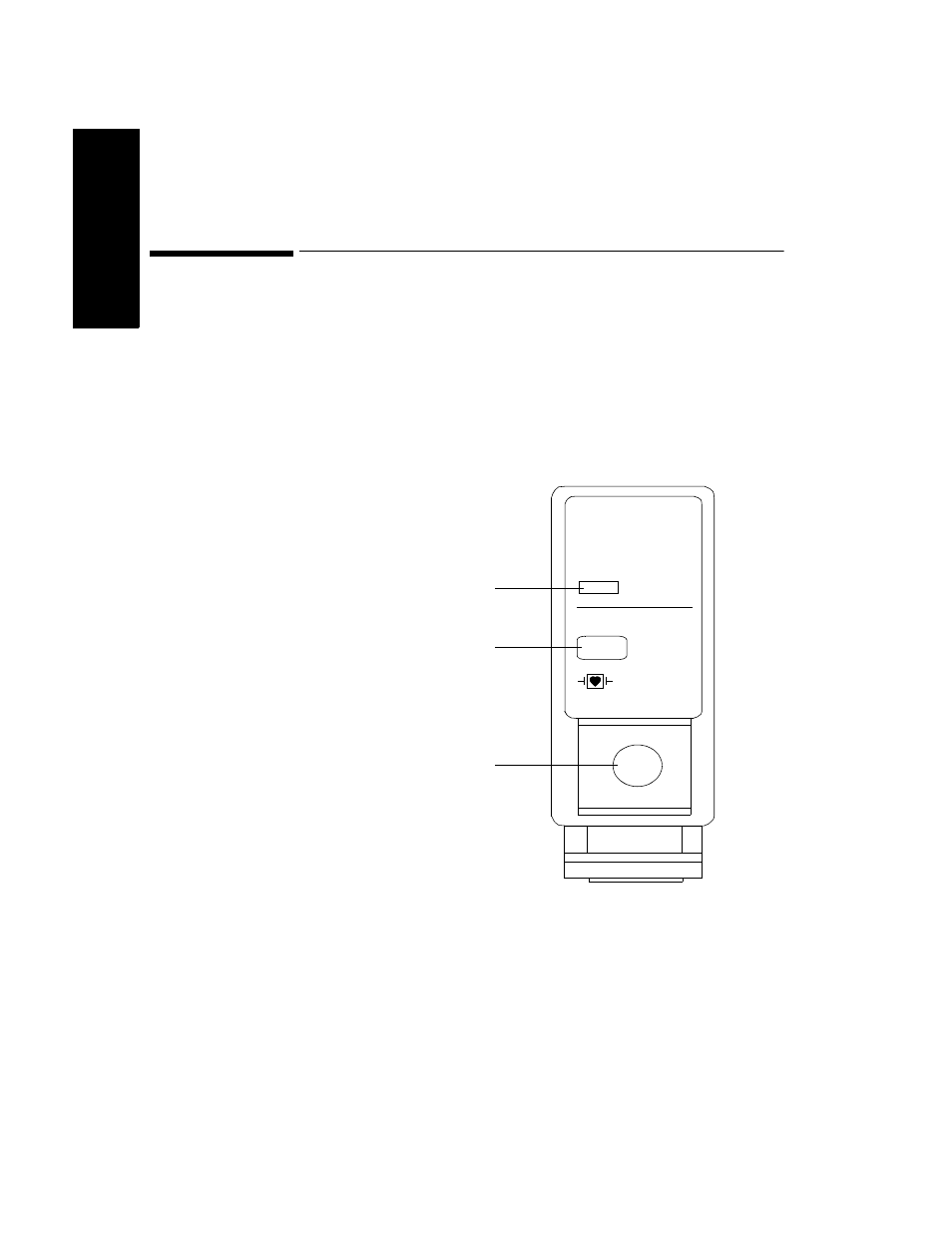

Light for
setup key
Parameter
setup key
Connector for
patient cable
or transducer
