Battery Indicator and Messages
• The battery fuel gauge, located on the lower right of the display,
indicates the remaining capacity of the batteries in a bar graph
form. As power discharges from the batteries, the number of
segments within the battery fuel gauge will decrease. (When you
first switch to battery power, the message “Battery Measurement
in Progress” will be displayed for up to 2 minutes before being
replaced by the battery fuel gauge.)
• The rate at which the batteries discharge is dependent on the
power load or the number of modules and type being used.
• ***appears on the display instead of the battery symbol graphics
when a battery is unplugged or removed.
• If you are running the monitor by the batteries, the two lead-sealed
batteries are indicated in the lower right of the display by battery
symbol graphics.
Note— Battery #1 is the battery on the right when looking at the back of
the monitor. This battery corresponds to the #1 battery symbol graphic
on the display screen.
Vol 150
+ - 2 + - 1
EMPTY FULL
30/17 (23)
100
PAP
SpO
2

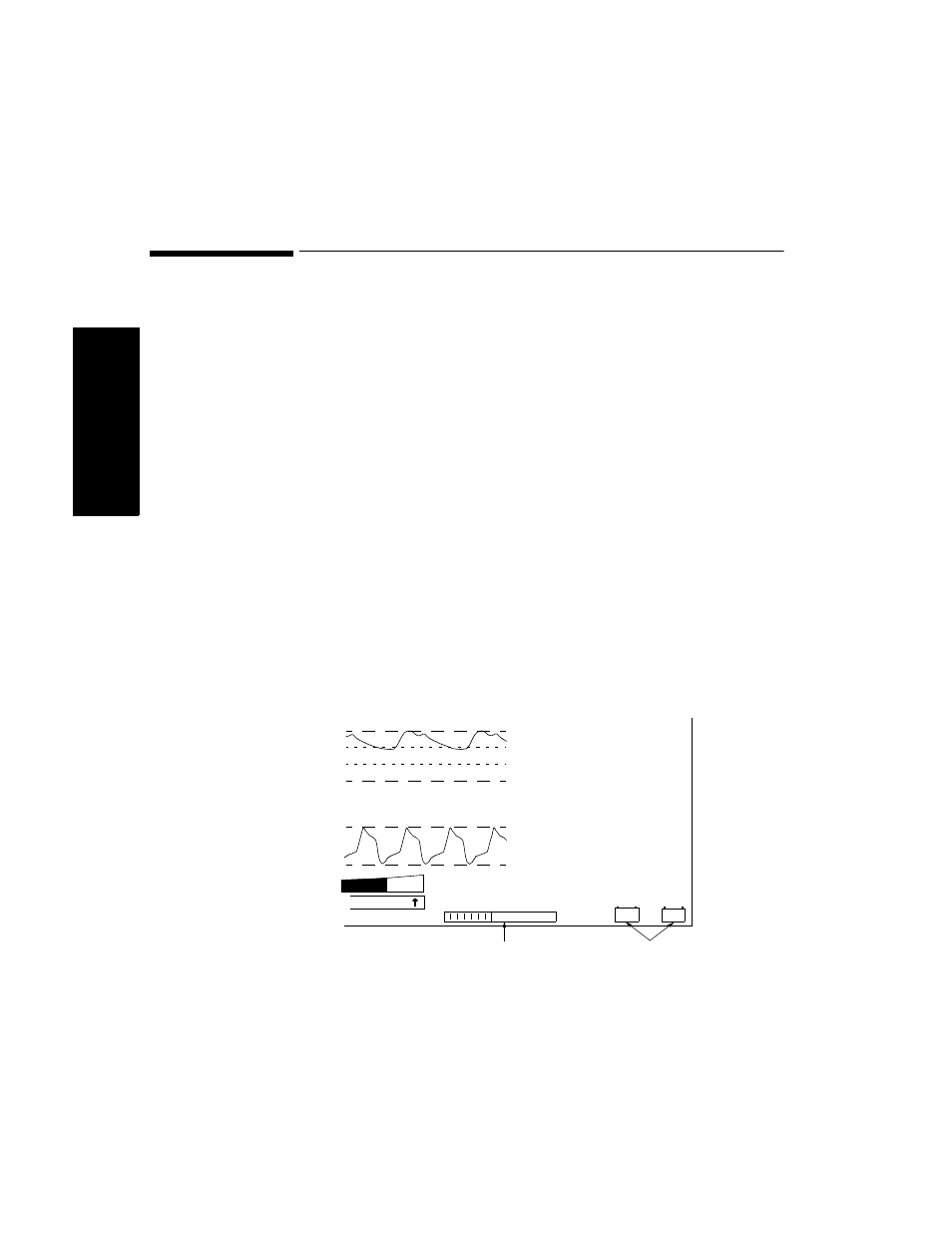

Battery Fuel Gauge Battery Symbol Graphics
