STAR Line Mode Command Specifications 3-96
3.9. Mark Command Details
This command is specialized for printing mark sheets for lotteries. This command can print lines.
LOTTERY 10
01 05 32 85 86 50 70 77 08
50 21 42 46 40 12 02 06 78
2003/04/08 STAR micronics.co,ltd
No. 0304081254896

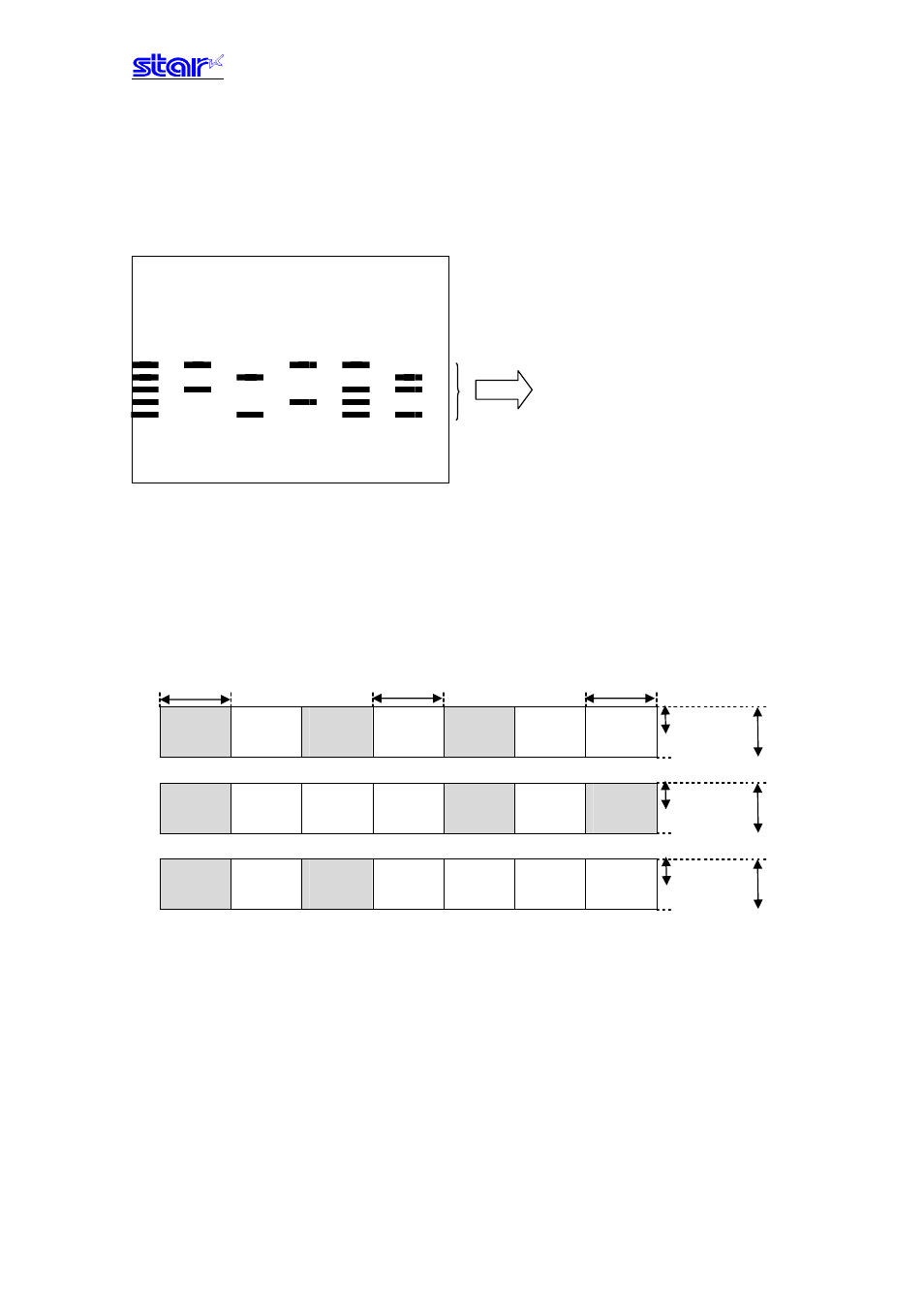

• Mark Format
Mark Height h = 10 dots, mark line feed amount v = 20 dots
Mark number 0: Mark Color c = White, Mark horizontal width w = 16 dots
Mark number 1: Mark Color c = Black, Mark horizontal width w = 40 dots
Mark number 2: Mark Color c = White, Mark horizontal width w = 40 dots
Mark
number 1
Horizontal
width w
Mark
number 0
Horizontal
width w
Mark
number 2
Horizontal
width w
Mark
number 1
Mark
number 0
Mark
number 1
Mark
number 0
Mark
number 1
Mark
number 0
Mark
number 2
Mark height h Mark line feed
amount v
Mark
number 1
Mark
number 0
Mark
number 2
Mark
number 0
Mark
number 1
Mark
number 0
Mark
number 1
Mark height h Mark line feed
amount v
Mark
number 1
Mark
number 0
Mark
number 1
Mark
number 0
Mark
number 2
Mark
number 0
Mark
number 2
Mark height h Mark line feed
amount v
• Example Transmission
1. Mark height, Line feed amount setting
*1 h v (h = “010”, v = “020”)
2. Color of each mark number, Horizontal width setting
*2 m c w (Mark number 0 setting: m = “0”, c = “0”, w = “016”)
*2 m c w (Mark number 0 setting: m = “1”, c = “1”, w = “040”)
*2 m c w (Mark number 0 setting: m = “2”, c = “0”, w = “040”)
3. Register the mark format specified by 1 and 2 in advance in the non-volatile memory (it is possible to print marks that
are not registered in the non-volatile memory.)
* W
Printed Marks
